Layer-3 Routing Engine，High-Efficiency Fast Forwarding
Supports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!
Flexible QoS, Precise Traffic Control

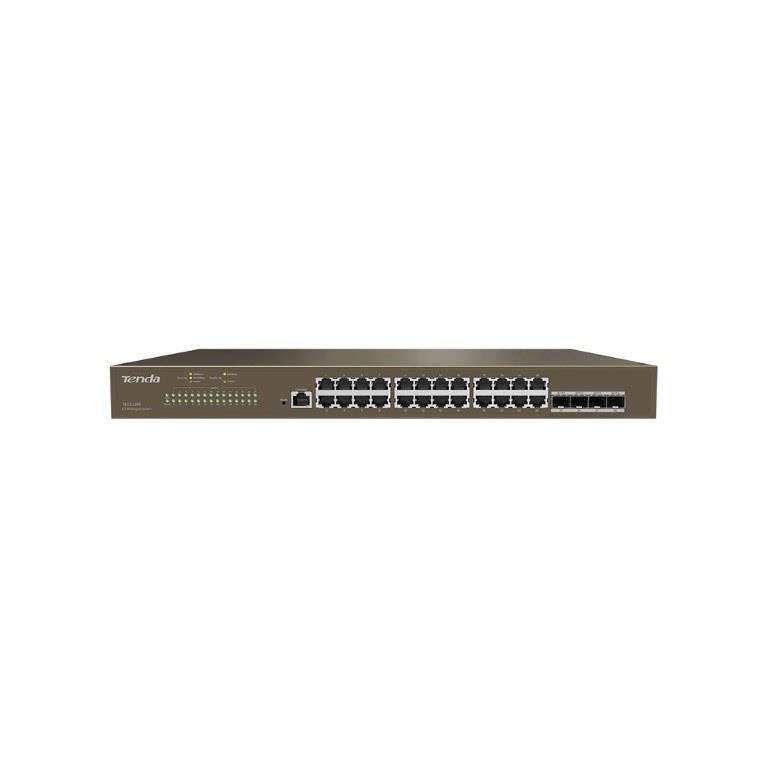

The TEG5328F supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth，in order to better meet the current transmission needs.
Specification
Network standards
IEEE802.3ã IEEE802.3uã IEEE802.3abã IEEE802.3adã IEEE802.3zã IEEE802.3xãIEEE802.1pã IEEE802.1qã IEEE802.1wã IEEE802.1dã IEEE802.1s
LED Indicator
1*Link/Act LED indicator
1*Power LED indicator
1*SYS LED indicator
Interfaces
24*10/100/1000 Base-T Ethernet ports
4*1000 Base-X SFP ports
1*Console port
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
56Gbps
Packet forwarding rate
41.70Mpps
Buffer
12Mb
MAC address table
16K
Jombo frame
10K
PoE power supply management
N/A
PoE budget
N/A
Input voltage
100-240V AC 50/60Hz
Power consumption
Full load: ＜24W
Empty load: ＜10W
Dimension
440.0mmx178.8mmx44.0mm
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Energy Efficient
Support
Environment
Operating temperature: 0°C - 45âƒ
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
FCCãCEãRoHS
Software
L3 Features
Supports VLAN-based routing
Supports IPv4 static routing
Supports static ARP
PoE power supply management
N/A
Security features
ARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius security authentication
VLAN
IEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid
DHCP Server
DHCP Relay
DHCP Snooping
Supports Option 82 policy configuration
Port aggregation
Static aggregation
LACP dynamic aggregation
Spanning tree
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics
Multicast
IGMP Snooping V1/V2/V3
Supports port fast leave
Port Mirroring
Supports N: 1 port mirroring
Quality of Service
SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping
ACL
Supports MAC ACL and IP ACL
Loading and upgrade
Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export
Management and maintenance
Supports Telnet, Console
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert/Connection Detection
CPU Monitoring and memory monitoring
