Tenda U3 Networking Card WLAN 300 Mbit/s

Tenda U3 Networking Card WLAN 300 Mbit/s

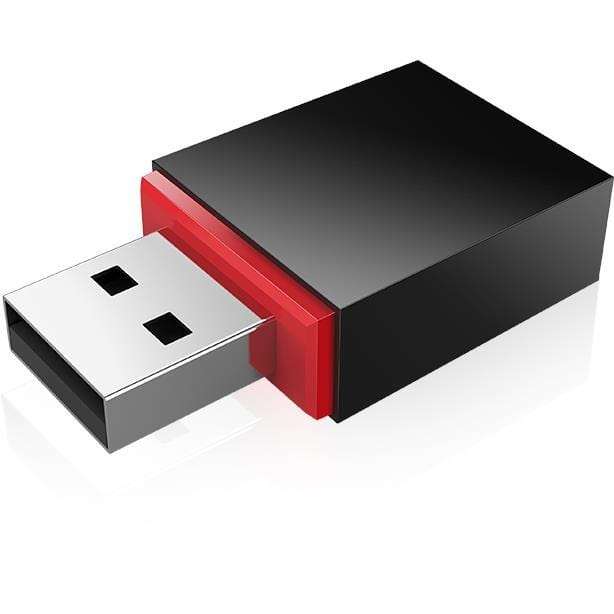

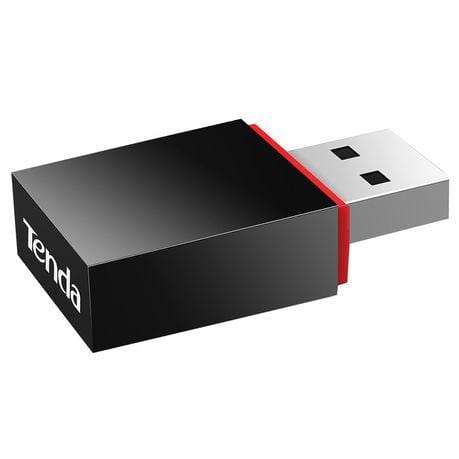

Tenda's 300Mbps Mini Wireless N USB Adapter U3 is designed to connect your laptop or desktop to a wireless network and enjoy high speed wireless performance. The fngertip design makes the adapter convenient and easy to carry around. What's more, the U3 supports the soft AP mode. In this mode, U3 functions an AP to turn the wired network into a wireless one, making the networking of wireless LAN quick and easy. It is compati-ble with many operating systems, allowing connection of computers, notebooks and other wireless devices.

Specification

Interfaces

USB2.0

Antenna Type

PIFA Antenna

Button

No

LED Indicator

1 * System LED

Dimension

37.5mm*19.5mm*8.9mm(L x W x H)

Wireless

Wireless Standard

IEEE802.11b,IEEE 802.11g, IEEE 802.11n

Frequency

2.4GHz

Data Rate

2.4GHz: Up to 300Mbps

Transmission Power

<20dBm (EIRP)

Wireless Modes

Station Mode、SoftAP Mode

Wireless Security

64/128-bit WEP,WPA-PSK / WPA2-PSK,WPA / WPA2

Others

Certification

CE, FCC，RoHS

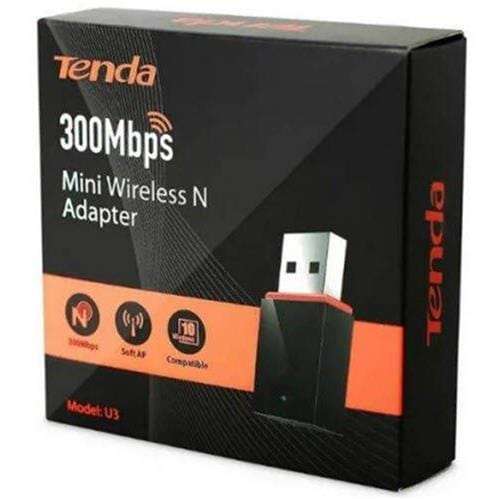

Package Contents

1 * Wireless Adapter U3
1 * Resource CD
1 * Install Guide

System Requirements

windows10,Windows 8.1,Windows 8,Windows 7,Windows XP，Mac OS 10.7~10.12, Linux

Environment

Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°F ~ 158°F (-40°C ~ 70°C )
Operating Humidity: 10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
