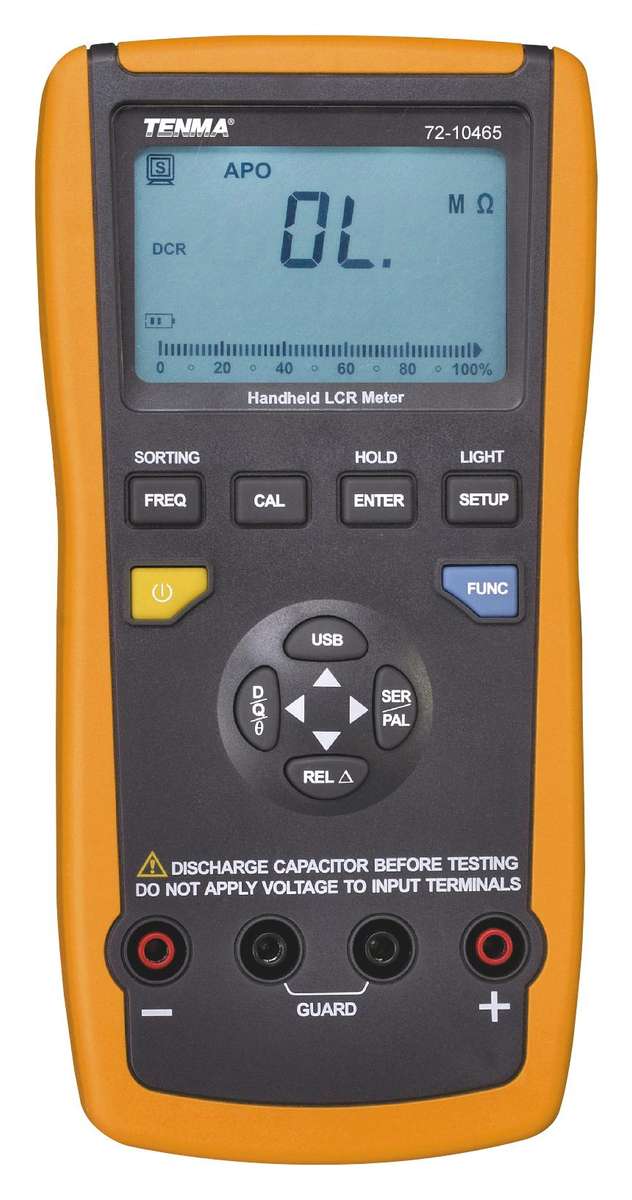

Tenma 72-10465 LCR Meter Hand Held

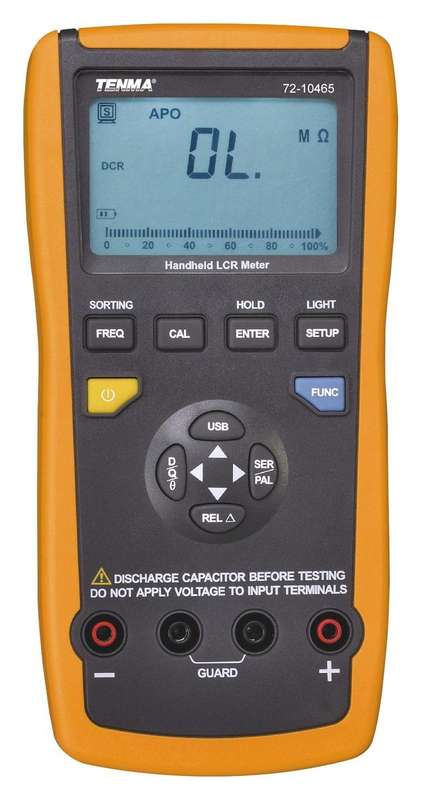

Product Information:LCR Type: Hand HeldTest Frequency Max: 100kHzInductance Measure Max: 2kHCapacitance Measure Max: 20000micro FResistance Measure Max: 0.2GohmProduct Range: -Product Overview:The 72-10465 from Tenma is a LCR meter in orange and grey colour. It features aneasy to read dual LCD (40mm x 63mm) display measurement of 19999/1999(main/auxiliary). It also has series and parallel measurement modes which can beused to select quality factor, loss factor, phase location angle and equivalentresistance of measure articles. Intelligent detection and five different testfrequencies enable accurate readings for all sizes of capacitors and inductors.The user can also access the stored data on a PC with the included USBconnection and interface software. The compact size and case make this unit farmore portable than a benchtop meter.Measurement of L, C & R range from 20mH to 2000H, 200pF to 20mF & 20 ohm to200MohmMeasurement frequency of 100Hz/120Hz/1KHz/10KHz/100KHz0.6Vrms measurement voltage, 120ohm output impedance & 0.5% basic precisionLow battery indication greater then.8V, automatic shutdownLCR automatic identification/manual measurementMeasurement of DCR DC resistanceCalibration compensation of open circuit/short-circuitRelative mode and tolerance sorting9V battery (6F22) or USB powered12 month limited warranty (view Terms & Conditions for details)
