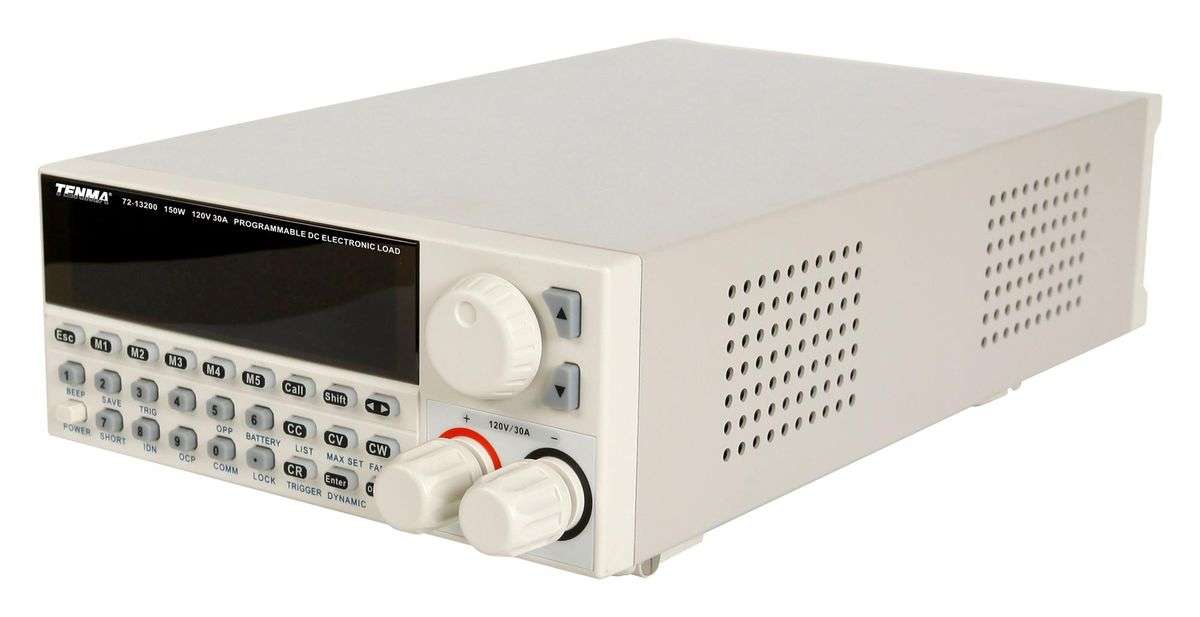

Tenma 72-13210 DC Electronic Load

Description:These are 150W~300W, Single-channel programmable DC electronic loads, aredesigned for middle & high-end applications.They can be offered as multiple solutions according to customer's need. Theonline voltage measurements and adjustments orsimulate short circuit test using the simple keypad on the front panel, can beused by the end users.Features- 120V, 0-30A, 150W and 300W- Dynamic mode: up to 10kHz- Resolution of voltage and current: 0.1mV/0.1mA- 4 working modes: CV/CC/CR/CW- Remote sensing function- Battery test, automatic test, OPP test, OCP test functions- 100 sets of storage- Short circuit function- Current monitoring function- Power off memory function- Interfaces: USB, RS232 and LANProduct Information:Product Range: -Power Rating: 300WDC Load Type: ProgrammableOperating Voltage Min: 0VOperating Voltage Max: 120VOperating Current Max: 30AManufacturer Warranty: 1 YearProduct Overview:Single channel programmable DC electronic load designed for middle and high-endapplications. This DC load facilitates online voltage measurements andadjustments or simulate short circuit test using the simple keypad on the frontpanel.Battery test, automatic test, OPP test, OCP test functionsDynamic mode up to 10kHzResolution of voltage and current 0.1mV0.1mARemote sensing functionShort circuit functionCurrent monitoring functionPower off memory functionCVCCCRCW 4 working modes100 sets of storageUSB, RS232 & LAN interface12-month limited warranty
