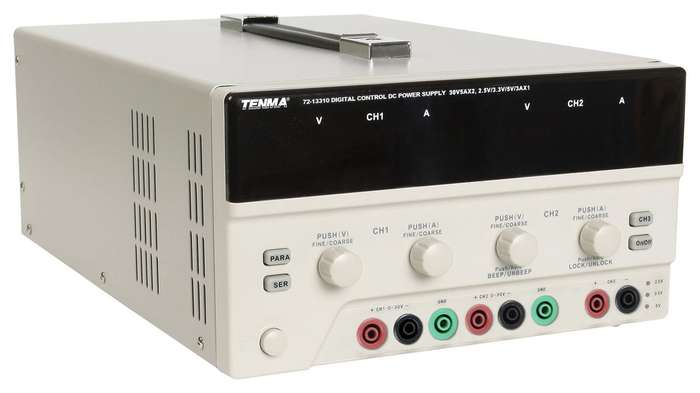

Tenma 72-1330 Encode Control Tripple Channel

Description:These multi-channel series DC power supply uses digital encoders and the buttoncontrol, which has the simple and convenient operation, safe and reliablefeatures. And there are series and parallel output operations and triple-wayadjustable control that is CH1 and CH2 output 0-30V while CH3 can output threevoltage stalls: 2.5V, 3.3V and 5V. In addition there is the output switch andthe shutdown memory function. And the fine and coarse adjustments can beachieved by pressing the knobs. Furthermore, the knobs have 2 operating modes:the continuous adjustment and the lock adjustment, which can make the operationconvenient and reliable that is, the keyboard can be locked to avoid improperoperation. Regarding interfaces, LAN, USB & RS232 are included with a wealth ofSCPI instructions which can provide the Labview driver and programming examplesto facilitate engineers to set up the test system quickly.Features:- 30V × 2.5V/3.3V/5V- 10mV/1mA high accuracy resolution DC power supply- Shutdown memory- Complete digital control- Industrial grade with load for a long time- Intelligent temperature controlled fan- Compact Design- Over-Current Protection- Output ON/OFF control- Knob LOCK function to avoid improper operation- LAN, USB & RS232 interface (Model 72-13320 / 72-13330 only)Product Information:Power Supply Output Type: Adjustable, FixedNo. of Outputs: 3 OutputDC Load Type: -Output Voltage Min: 0VOperating Voltage Min: 0VOutput Voltage Max: 30VOutput Current Min: 0AOperating Voltage Max: 30VOperating Current Max: 3AOutput Current Max: 3APower Rating: 195WSupply Voltage Min: -Supply Voltage Max: 230VManufacturer Warranty: 1 YearProduct Range: -Plug Type: EU, UKProduct Overview:195W triple channel DC power supply with digital encoder control.Compact design, safe, simple and convenient operation3 channel output (Ch1 and Ch2 (2x, 0 - 30V) and Ch3 (1x, adjustable 2.5V3.3V5V))10mV1mA high accuracy resolution DC power supplyShutdown memoryComplete digital controlIndustrial grade with load for a long timeIntelligent temperature controlled fanOvercurrent protection and output ONOFF controlKnob lock function to avoid improper operationUSB, RS232 & LAN interface
