Terra MD330  3-channel MPEG2 encoder
Closed

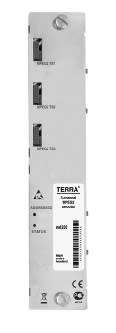

Terra MD330 – 3-channel MPEG2 encoder

1 was available / new
R1,000.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Warranty Type: Replacement For any material defects. Or damage during shipping. Excludes negligence, bad installation, and accidental damage. Money-Back Guarantee: 7 Days: Only if defective. Must be in original condition and everything complete in packaging and in box as received and can be resold as new.
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
CT014ELL
Bob Shop ID
637724646

Channel processing equipment
Converting analogue video/audio signals into MPEG2 coded transport stream

Three composite video and three stereo audio inputs
Three individual MPEG2 TS outputs
MPEG2 TS PID control
Video brightness, contrast, saturation, hue control
Programmable audio and video compression bit rates
Programmable audio sampling rate
Audio level control
Parameters control via CMH data bus extension port
Firmware upgradeable
Connectors: 3-channel video/audio input 15-pin Sub-D socket on the bottom side three MPEG2 TS outputs: TS1, TS2 and TS3 on the front panel
Sections: 3
Video:
encoding ISO/IEC13818-2 MPEG-2 MP@ML
resolution: 720 x 576 (at 25 fps), 720 x 480 (at 30 fps)
frame rate: 25 max. PAL, 30 max. NTSC
Audio:
encoding: ISO /IEC11172-3 (MPEG1 audio) layer 1/2 compliant
sampling rate: 32 kHz, 44.1 kHz, 48 kHz
compressed bit rate: 32 to 384 Kbps per channel
audio mode: Stereo, Joint Stereo, Dual Channel, Mono
Audio/Video multiplexing: ISO/IEC13818-1 MPEG2 TS
Compressed system bit rate: 1 to 15 Mbps per channel
Compressed system bit rate mode: constant, variable

More details here: https://www.futurecy.com/shop/tv-distribution/headend-and-accessories/mini-modular-headend/md330/
