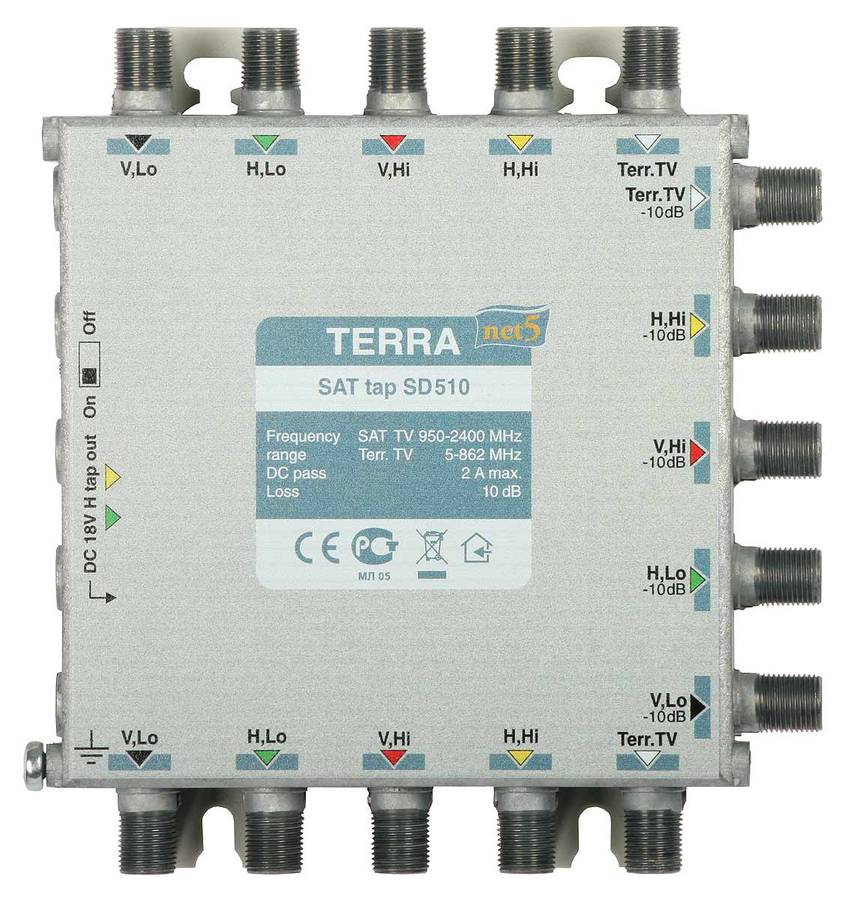

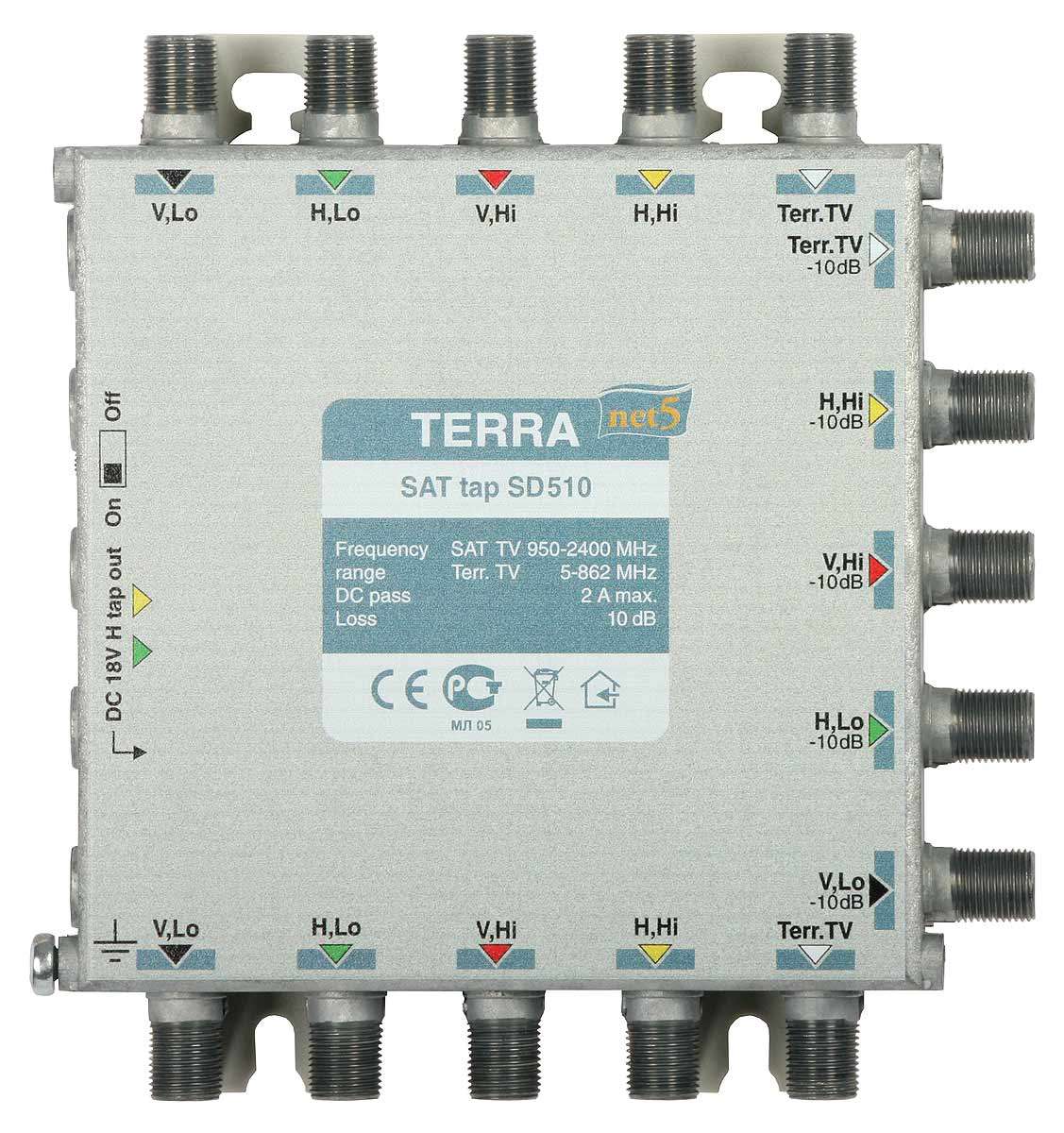

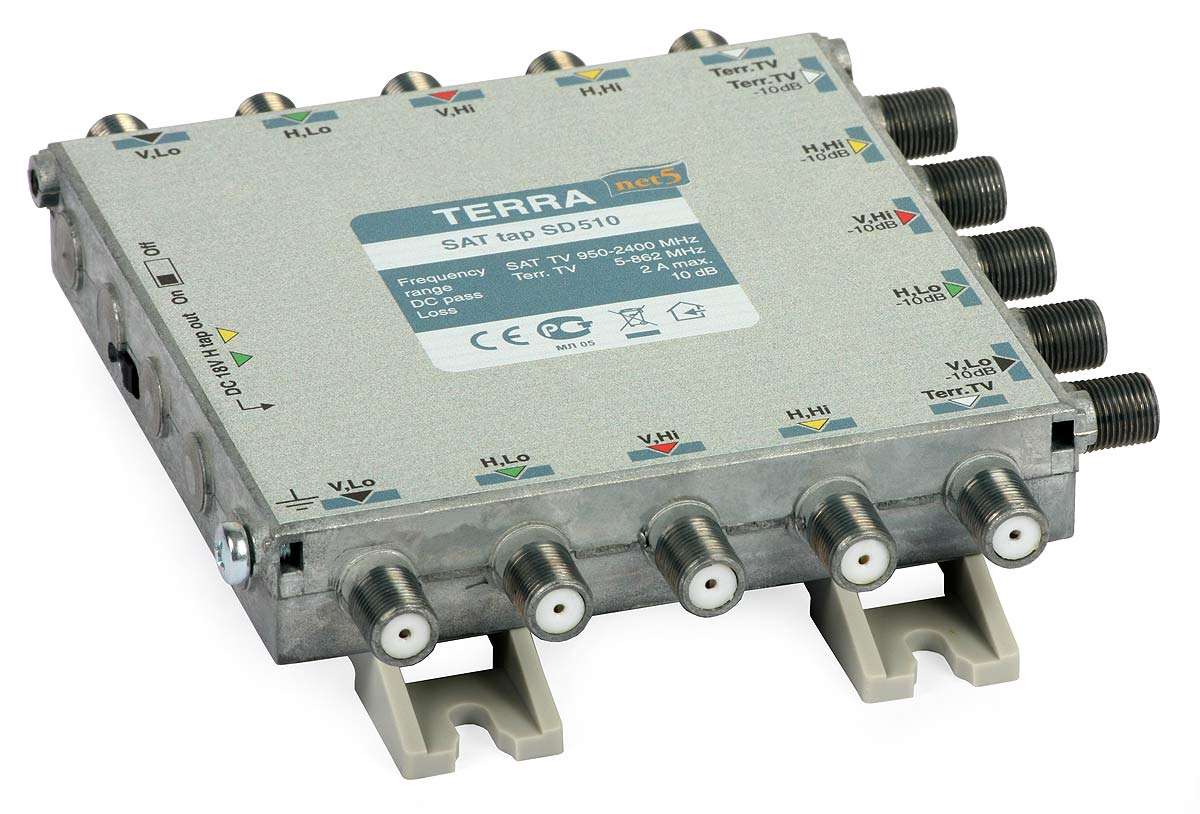

Terra SD510 - TV/Sat splitter SD-510 Terra class A /T2UK Terra SD510 - TV/Sat splitter SD-510 Terra class A /T2UK
Terra SD510 - TV/Sat splitter SD-510 Terra class A /T2UK Terra SD510 - TV/Sat splitter SD-510 Terra class A /T2UK
Sold

Terra SD510 - TV/Sat splitter SD-510 Terra class A /T2UK

New 1 was available
R750.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Bob Shop ID
630049802

Brand new in box

The tap is used in multiswitch installations. It is used to extract the signal from the multiswitch bus. The bus with the signal from one Quatro converter consists of four wires. Additionally, the tap also emits a terrestrial TV signal. The tap has a DC transfer switch which, when set to the "ON" position, transmits DC voltage through the "H" tracks to both branches. When set to the "OFF" position, it passes voltage only to one branch. Taps SD-510 R70516, SD-515 R70517 and SD-520 R70518 allow you to ensure optimal signal level at a given installation point. To select the elements correctly, it is recommended to use a free application for designing multiswitch installations - SatNet. The cast housing provides excellent shielding over the entire frequency range.

Specifications
T Y P E

SD510

Ordering number

02716

Frequency range

SAT IF

950-2400 MHz

Terr. TV

5-862 MHz

Through loss

SAT IF

1.5 dB

Terr. TV

1.8 dB

Tap loss

SAT IF

12 ÷ 8 dB

Terr. TV

10 dB

SAT inputs decoupling
SAT IF

30 dB

Terr. TV

30 dB

DC pass through

H lines

2 A max. (1 A max. through one line)

Terr.TV lines

0.1 A max.

Return loss

> 10 dB

Operating temperature range

-20° ÷ + 50°C

Dimensions/Weight (packed)

126x135x30 mm/0.44 kg
