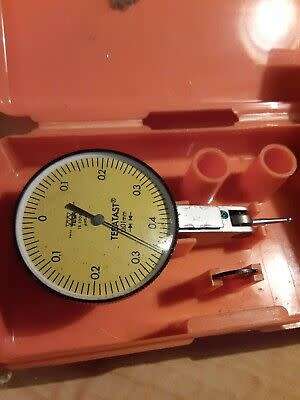

TESA TESATAST
1DIV=.01 mm Dial Indicator
The indicator can make either horizontal or vertical measurements, and the choice of white or yellow dial help make measurements easy to read. The yellow face with contrasting black hand complies with ANSI standards for metric dial faces. The carbide, ball-contact tip reaches into the workpiece for accurate measurements of turned, milled, and ground parts, and for tool setting gauges, fixtures, and inspections. The continuous clockwise pointer rotation helps prevent plus or minus confusion and displays units in fractional millimeters (mm). The ball-bearing lever system swivels through to 80 degrees. The dial face mounted at the top of the indicator parallel to the axis, and three universal dovetail mounts can be used for mounting from the top, front, or back. Dovetail mounts provide a rigid setup. This indicator has a Monoblock body design with pinions mounted in jeweled bearings in an isolated assembly separate from the outer body, for high accuracy. It is anti-magnetic for safety when used around magnetic workpieces and debris, and has full-metal construction for durability and corrosion resistance. This dial test indicator meets Deutsches Institut fur Normung (DIN) 70, and Norme Francaise (French Institute for Standardization) NF E -03 standards, and includes an identification number and a declaration of conformity.
