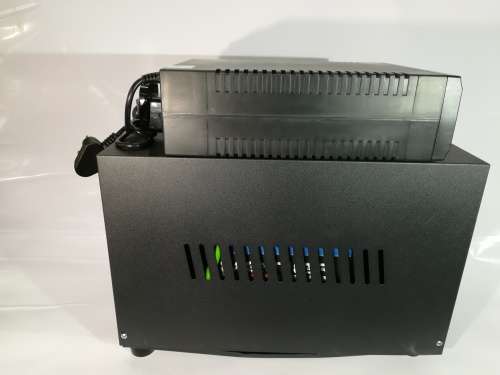

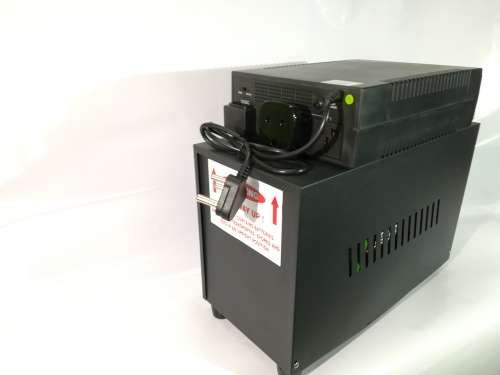

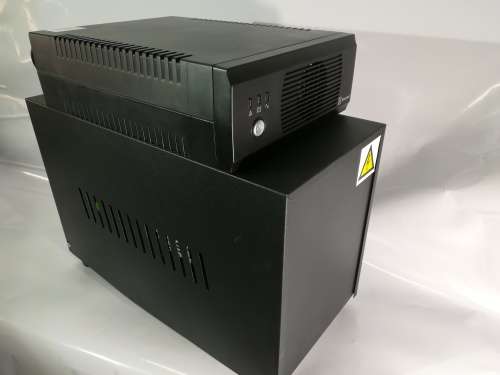

TESCOM 500VA INV/CHARGER 12VDC WITH EXTENDED BATTERY PACK 45AH

 DESCRIPTION:

This inverter is a compact inverter designed to power your home appliances or precious electronics. Its compact size features easy installation

Compared with traditional inverters in the market, this inverter provides two operation modes: narrow mode & wide mode.

Narrow mode: At Narrow mode, the inverter can provide continuous power to general home appliances

Wide mode: At Wide mode, the inverter can provide continuous power to lamp & fan load.

SPECIFICATIONS:

Model: Satin 500VA

Capacity: 500VA / 300W

Input Voltage: 230VAC

Voltage Range: 170-280 VAC (Narrow mode)

                          90-280 VAC (Wide mode)

Output Voltage Regulation (Batt. Mode): 230VAC +/-10'/,

Transfer Time: 30ms typical (INV mode) / 10ms typical (ups mode)

Waveform: Modified Sine Wave

Battery & Charger voltage: 12 VDC

Floating Charge Voltage: 13.75VDC+/- 0.25

Charge Current: 10A

Physical Dimensions (DxWxH mm): 330 x 227.8 x 92.5
