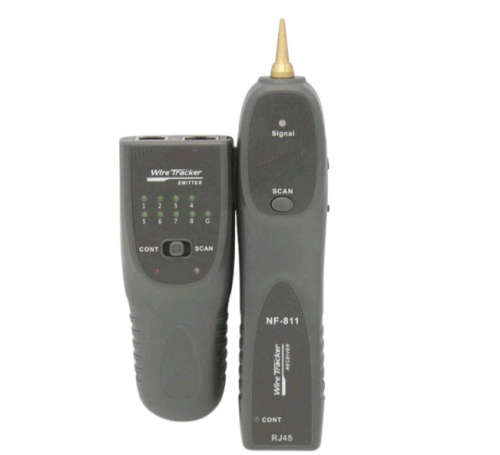

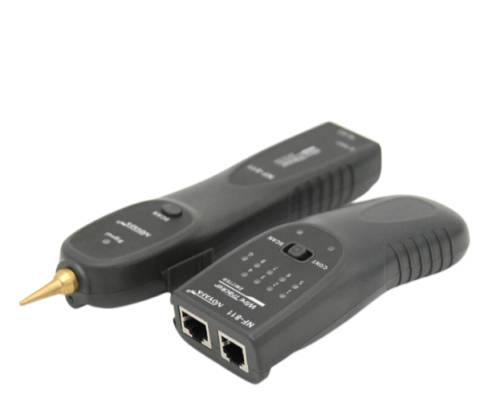

-Complete with amplifier probe and tone generator
-Wire trace test (RJ 45 & RJ11) and continuity test (RJ45)
- Identify the state and polarity of the telephone line
-Built-in speaker with sensitivity control
- LED light helps use in a dark environment

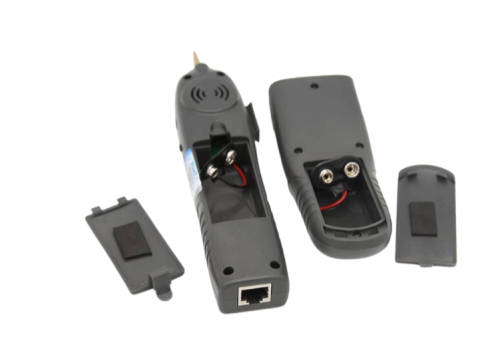

-Power requirements: 9 volt DC battery
Transmitter Specifications:
-Tone frequency:200Hz
- Max distance of transmission:2KM
-Max working current:30 mA
-Compatible connectors: RJ45, RJ11
-Max signal voltage:8V
- LED light display: Wiremap,tone,tracing
-Voltage protection: DC 60V
- Battery type: DC 9.0V (NEDA 1604/6F22)
Receiver Specifications:
-Frequency:200kHz
- Max working current:80mA
- Earphone jack:1
- Battery type: DC 9.0V (NEDA 1604/6F22)
