Description:

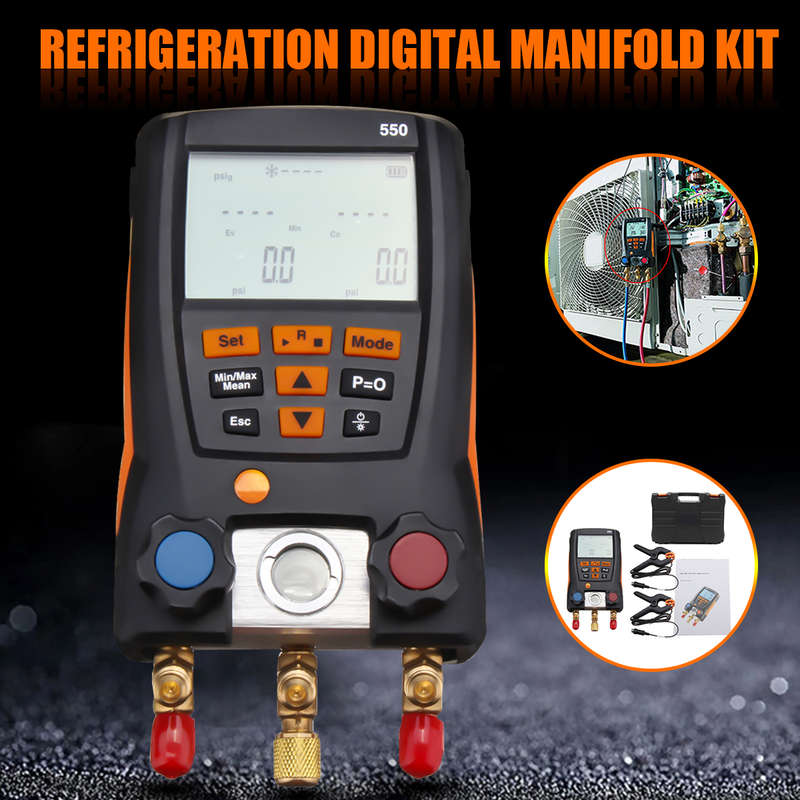

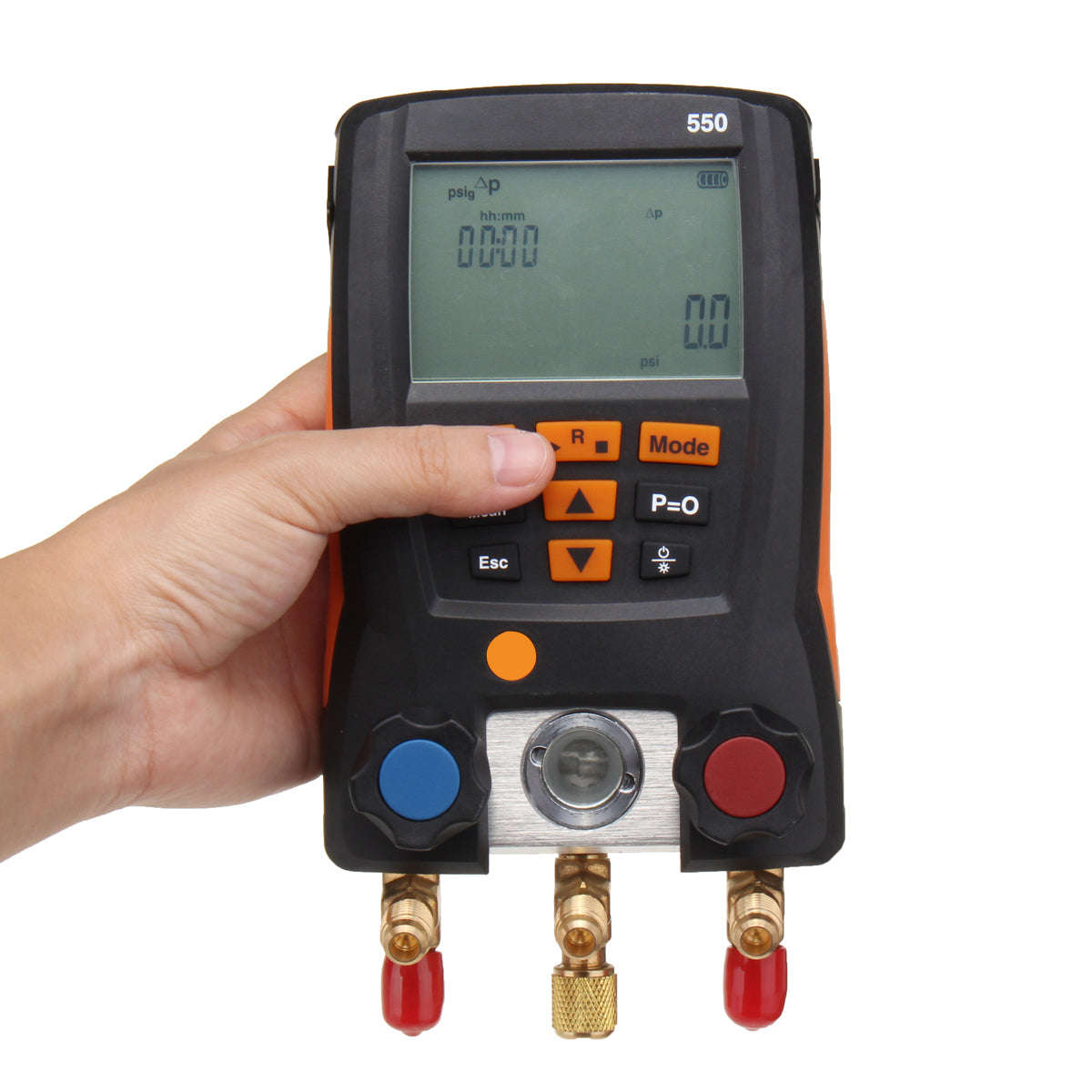

The rugged housing of the Tester digital manifold includes a metal frame around the display which protects the digital manifold from impact. Now with 60 refrigerant profiles and added functionality for leak tests, the Tester digital manifold is versatile enough to become the tool for every job. You can view measurement data on your Smartphone or Tablet, enabling you to quickly and conveniently complete and document your job. Then, be able to finalize the documentation and send the report and invoice via email, right from the job site. The App can also be used to download new refrigerants from the Internet directly into the manifold.Features:
-App integration via Bluetooth for fast and convenient monitoring and reporting on site.
-Refrigerant update in the instrument via App.
-Calculation of superheating/subcooling in real time with up to two external temperature probes.

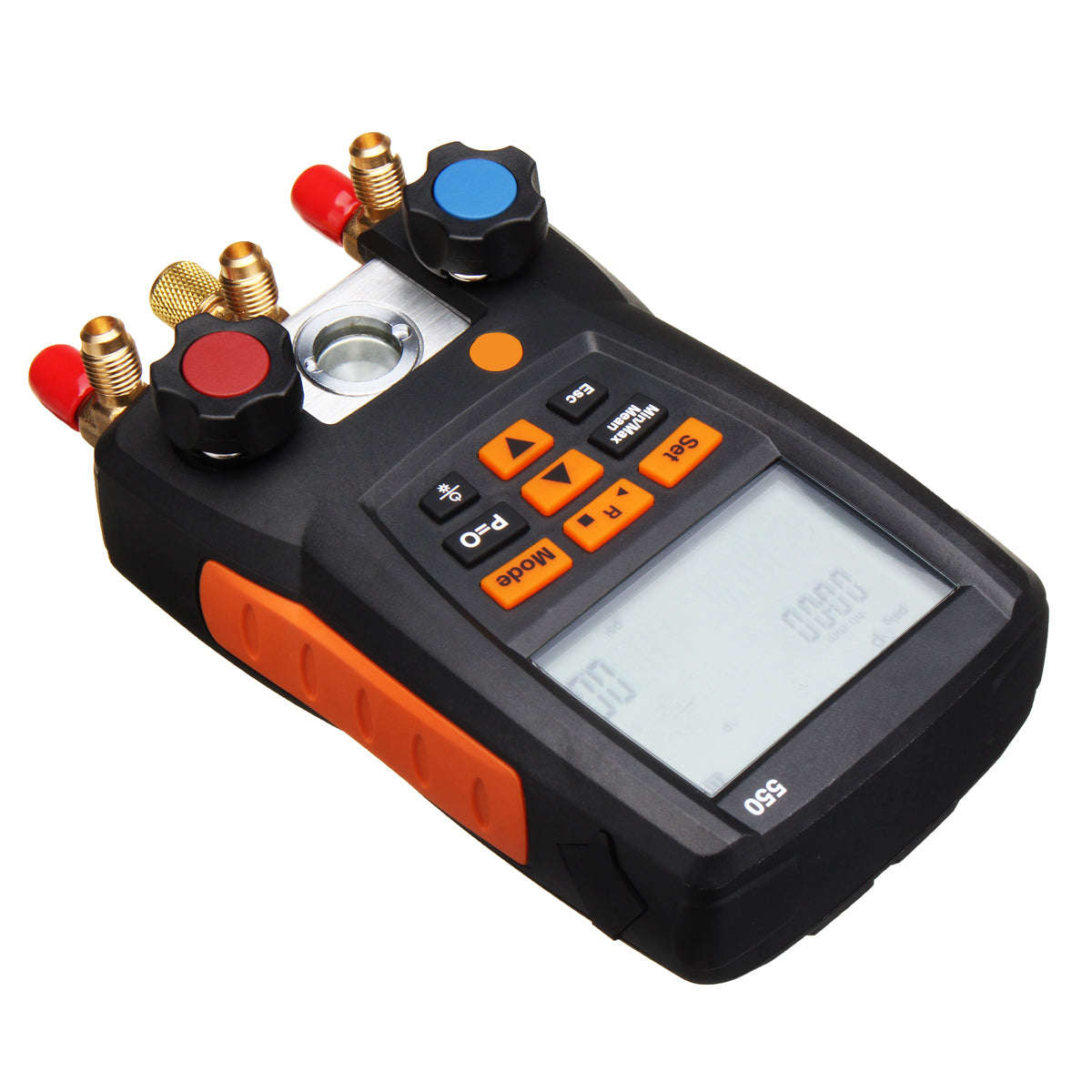

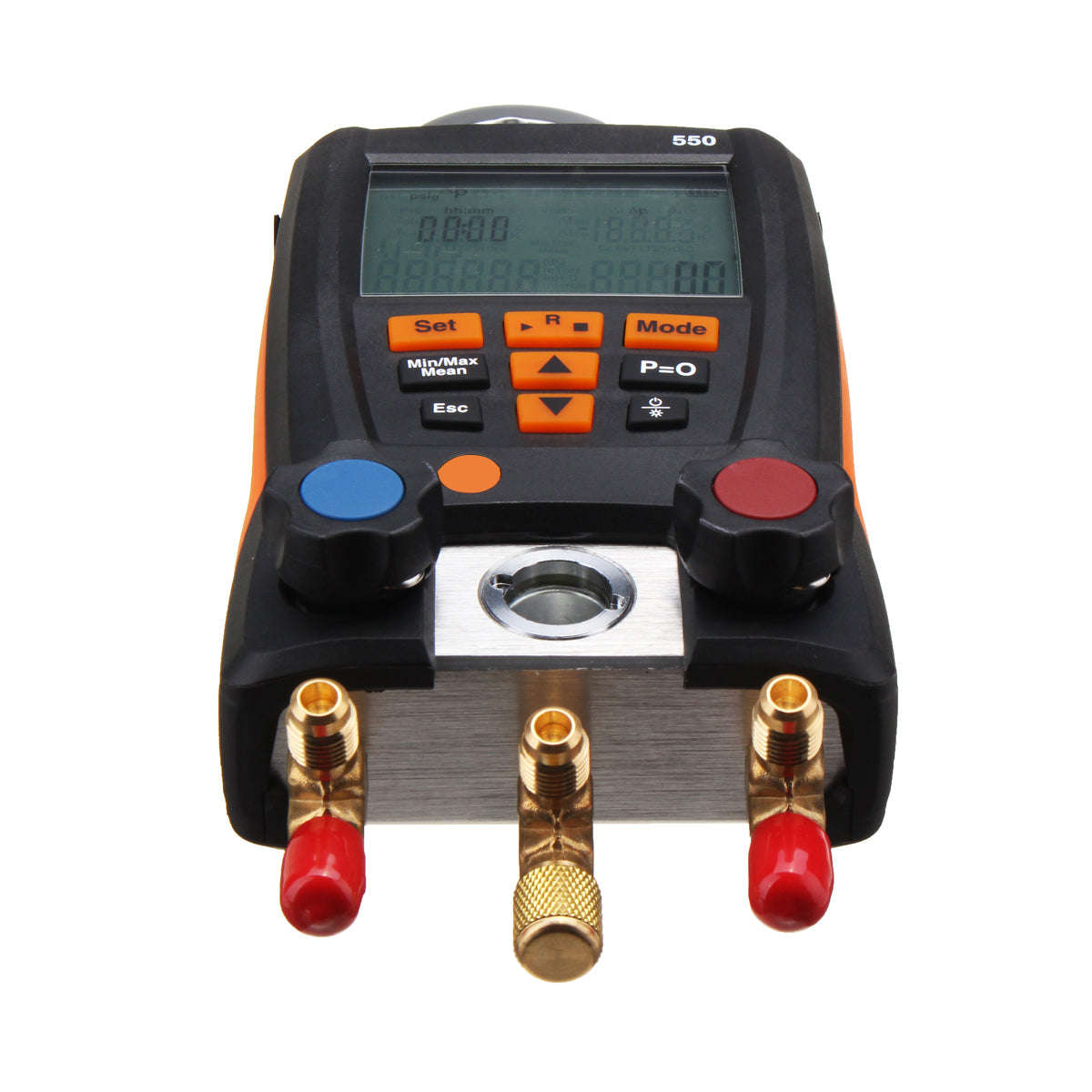

-2-way valve block with three connections, three hose parkers and sight glass.
-The Tester is the robust tool for daily work on refrigeration systems and heat pumps. The robust 2-way metal valve block with 3 connections and 3 hose parkers allows you to work quickly and easily.
-The App integration via Bluetooth opens up new possibilities for efficient analysis and documentation.
-Via the wireless connection, users can read off the measurement data on a Smartphone or tablet, allowing them to work more quickly and conveniently. In addition to this, the user can finalize and send the measurement report directly on site. The App alows the list of stored refrigerants to be updated, for example. The more robust housing, with a metal frame around the display, protects the new Tester even more reliably from impact. The vacuum display indicates the level of vacuum reached in evacuation.
-The Tester is thus excellently suitable for commissioning, service and maintenance. Thanks to additional features such as the automatic heat pump mode, which eliminates the need to switch over the hoses, and the temperature-compensated tightness test function, working on refrigeration systems and heat pumps is easier than ever before.
Specification:
Temperature
Measuring range: -50 ~ +150 C
Measurement accuracy: 0.5 C
Resolution ratio:0.1 C
Probe connection: 2 x plug-in (NTC)
Pressure measurement
Range of measurements: --1 ~ 60 bar
Measurement accuracy: 0.5 % FS
Resolution ratio: 0.01 bar
Probe connection: 3 x 7/16" UNF
Overload relative pressure (high pressure): :65 bar
Vacuum measurement
Range of measurements: -1 ~ 0 bar
Technical parameter
Size: 200 x 109 x 63 mm
Operating temperature: -20~+50C
Battery life: 250 h (display light off, Bluetooth off)
Refrigerants in instrument:
60 Profiles; R11; R12; R123; R125; R1234yf; (Youcan update the refrigerant through the "EasyKool" software; R1234ze; R125; R13B1; R134a; R14; R142B; R152A; R161; R22; R227; R23; R290; R32; R401A; R401B; R401C; R402A; R402B; R404A; R406A; R407A; R407B; R407C; R407D; R407F; R408A; R409A; R410A; Ra11A; R412A; R413A; R414B; R416A; R417A; R420A; R421A; R421B; R422A; R422B; R422C; R422D; R424A; R426A; R427A; R434A; R437A; R438A; R502; R503; R507; R508A; R508B; R600; R600a; R744(CO); R718 (HO); Complete the upgrade through the App application.
Storage temperature: -20 ~ +60 C
Probe
NTC
Measuring range: -40 ~ +125 C
Measurement accuracy: 1 C (-20 ~ +85 C)

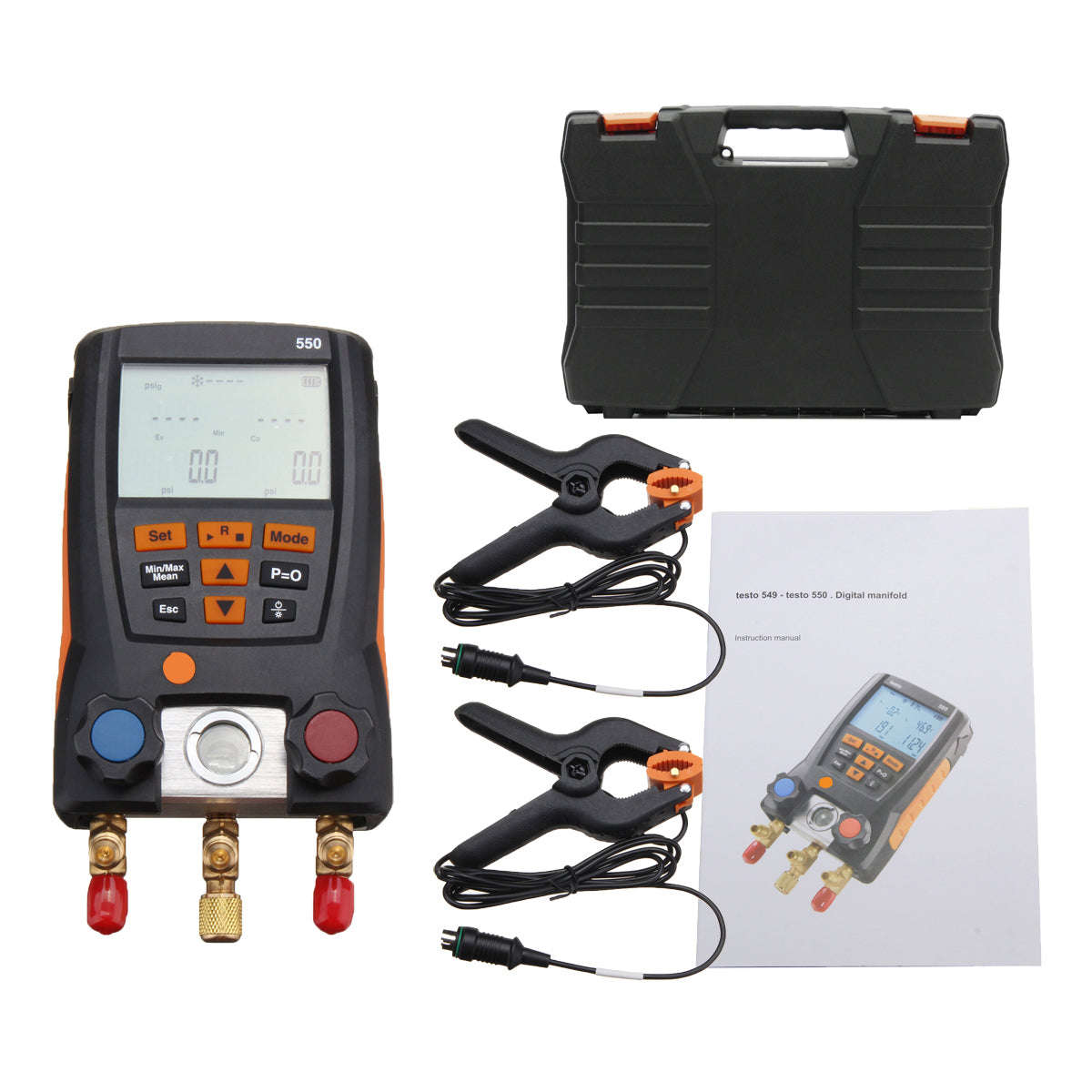

Package Included:
1 x Electronic Refrigerant Meter Set

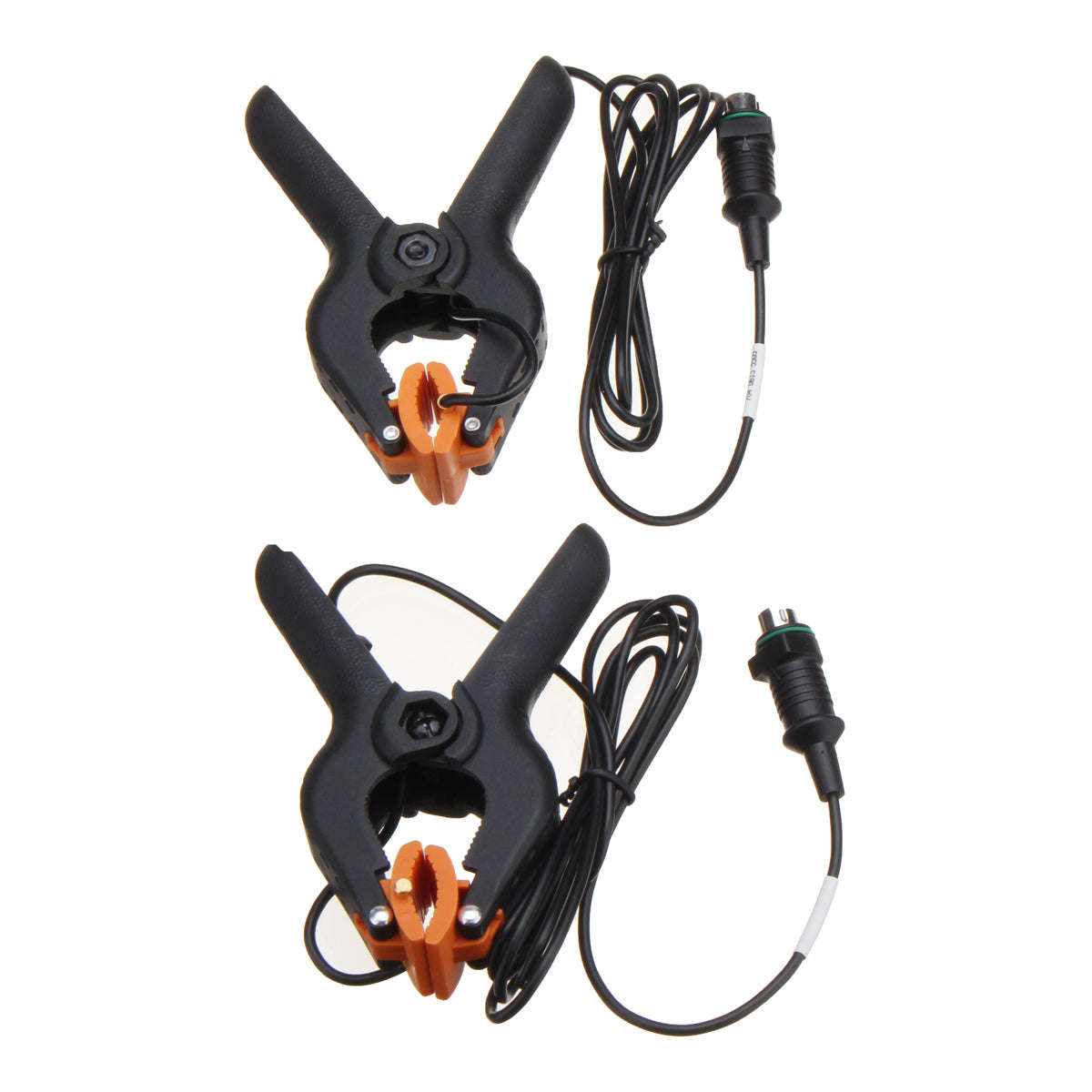

2 x Clamp Probes

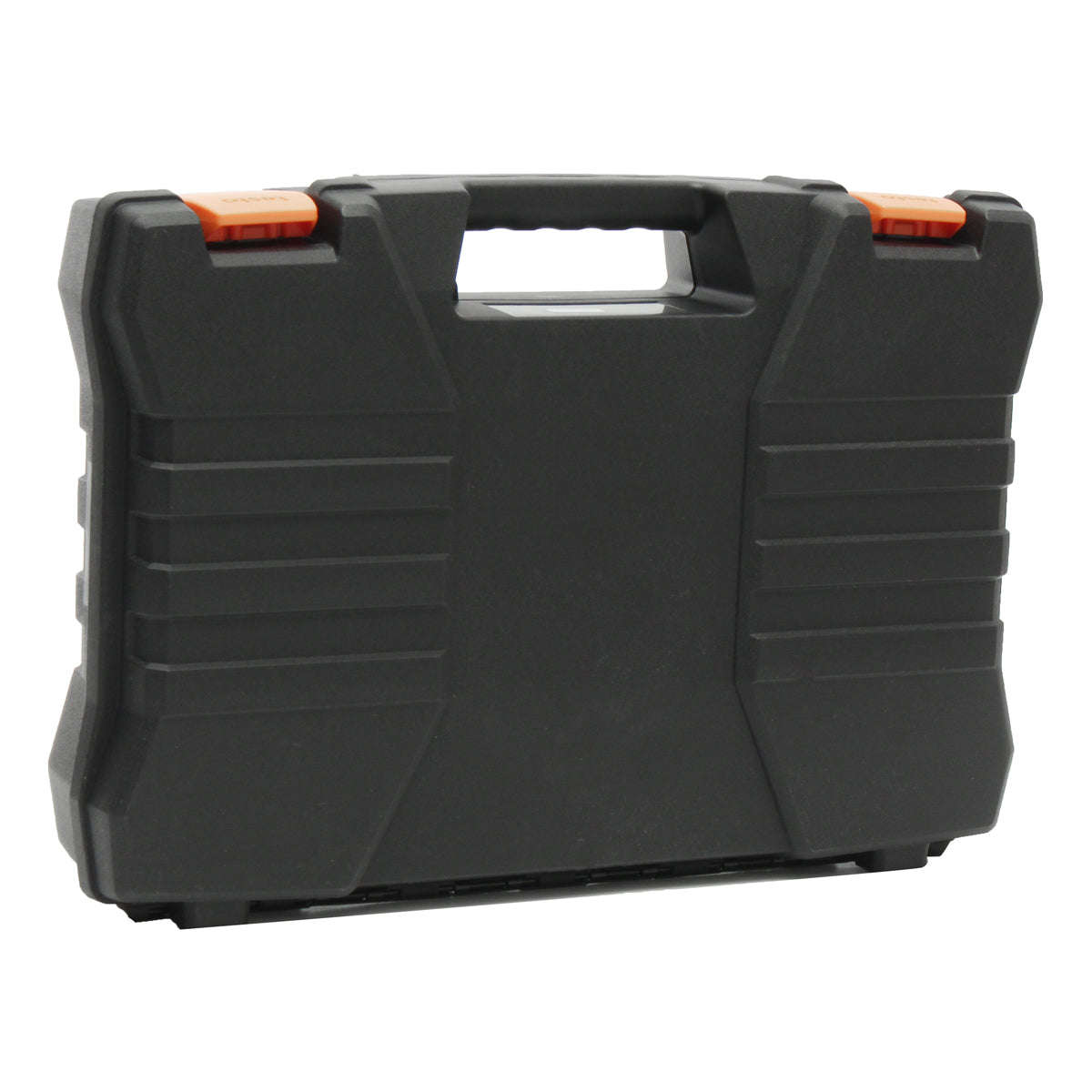

1 x Transport Case
1 x Instruction

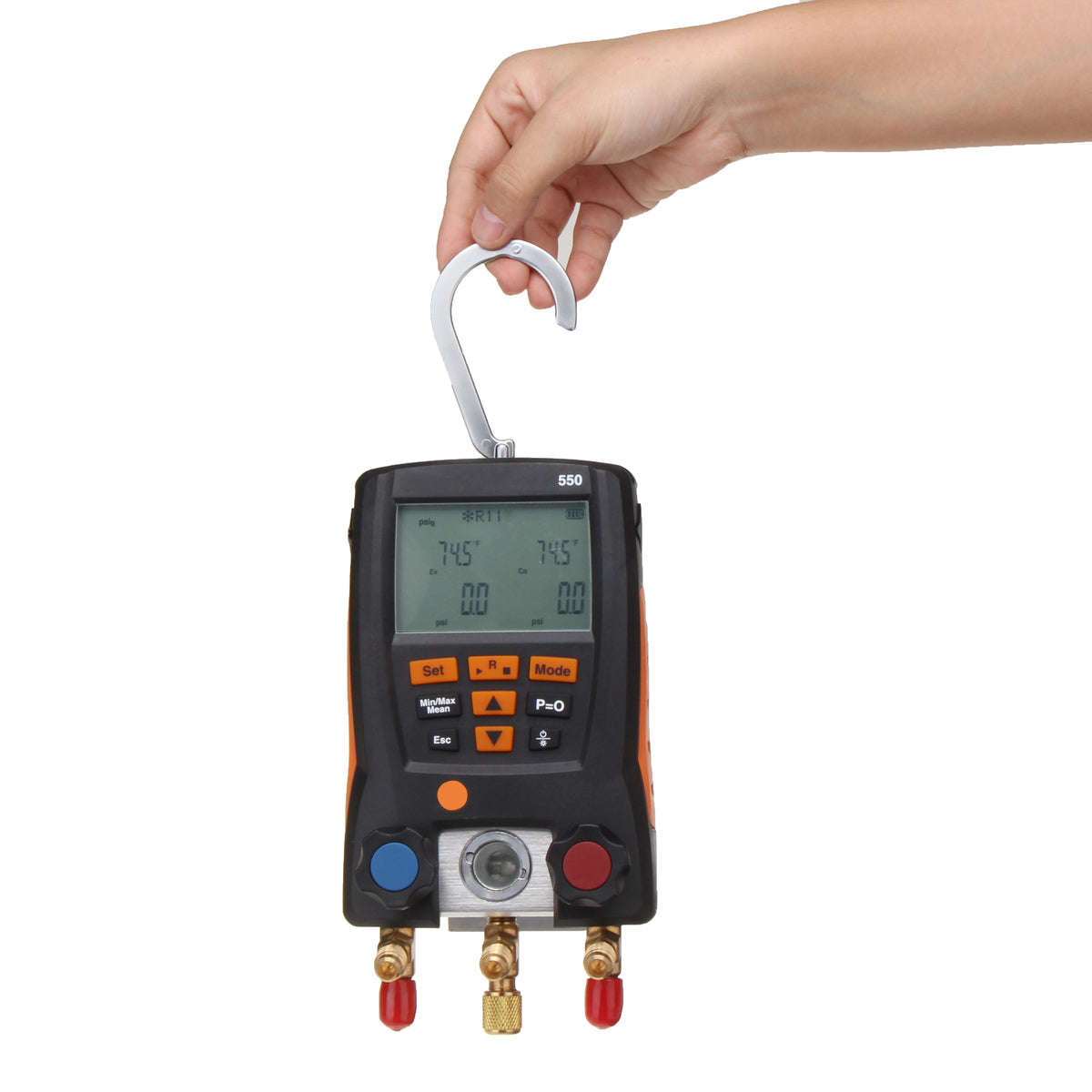

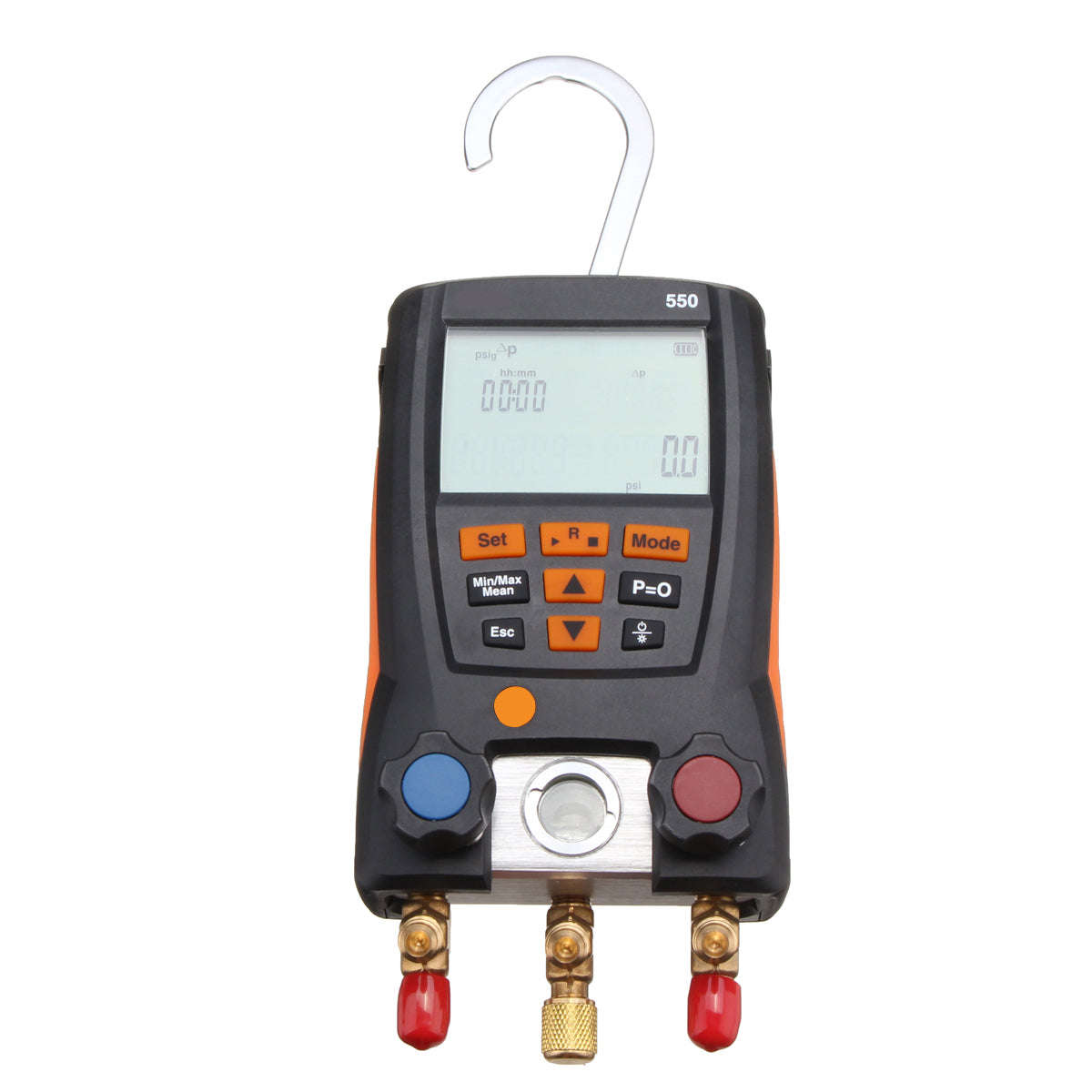

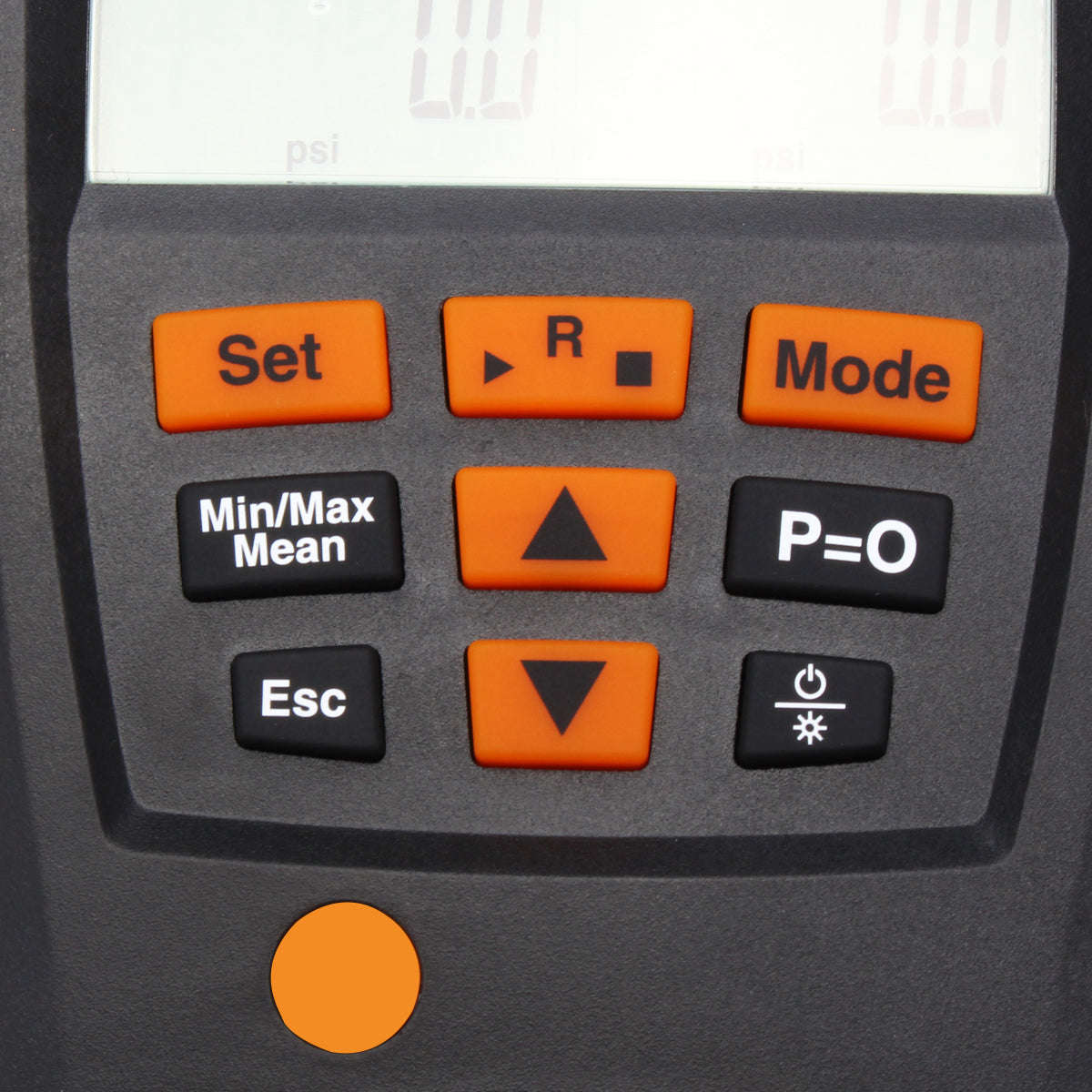

Detail Pictures:
