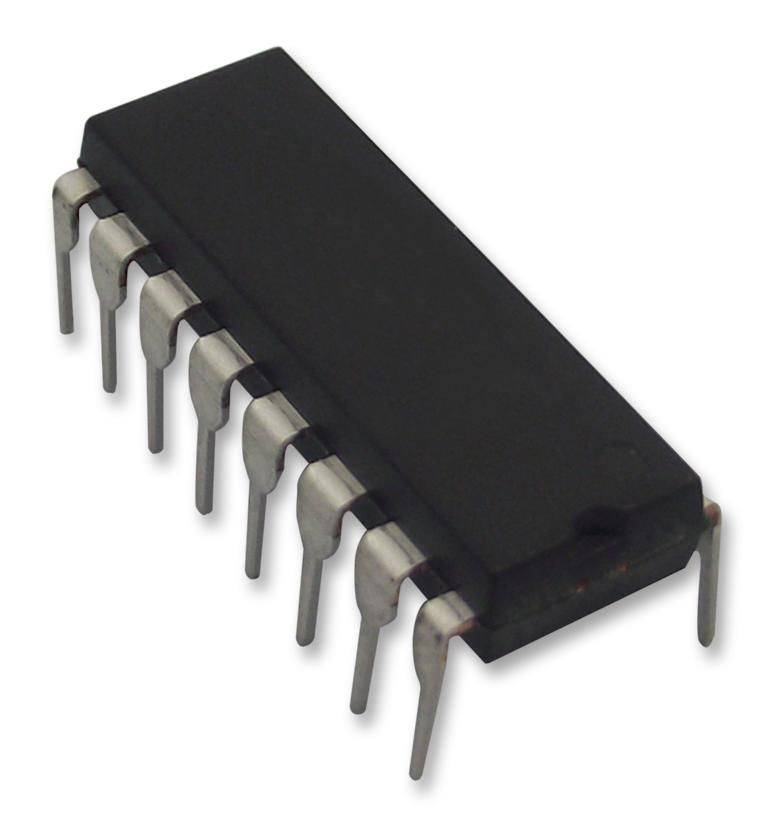

Texas Instruments (CD4022BE) Decade Counter / Divider, 11 MHz

Decade Counter / Divider, 11 MHz, 3 V to 18 V, DIP-16Product OverviewThe CD4022BE is a CMOS Octal Counter with 8 decoded outputs, 5-stage and 4-stageJohnson counters having 10 and 8 decoded outputs, respectively. Inputs include aclock, a reset and a clock inhibit signal. Schmitt trigger action in the clockinput circuit provides pulse shaping that allows unlimited clock input pulserise and fall times. These counters are advanced one count at the positive clocksignal transition if the clock inhibit signal is low. Counter advancement viathe clock line is inhibited when the clock inhibit signal is high. A high resetsignal clears the counter to its zero count. Use of the Johnson counterconfiguration permits high-speed operation, 2-input decode-gating and spike-freedecoded outputs. Anti-lock gating is provided, thus assuring proper countingsequence. The decoded output is normally low and go high only at theirrespective decoded time slot. Each decoded output remains high for one fullclock cycle.Fully static operationMedium speed operationStandardized, symmetrical output characteristics100% Tested for quiescent current at 20VGreen productApplicationsSignal ProcessingProduct InformationLogic Family / Base Number: CD4022Counter Type: Decade / DividerClock Frequency: 11MHzCount Maximum: 4Logic Case Style: DIPNo. of Pins: 16PinsSupply Voltage Min: 3VSupply Voltage Max: 18VLogic IC Family: CD4000Logic IC Base Number: 4022Operating Temperature Min: -55°COperating Temperature Max: 125°CProduct Range: -MSL: -
