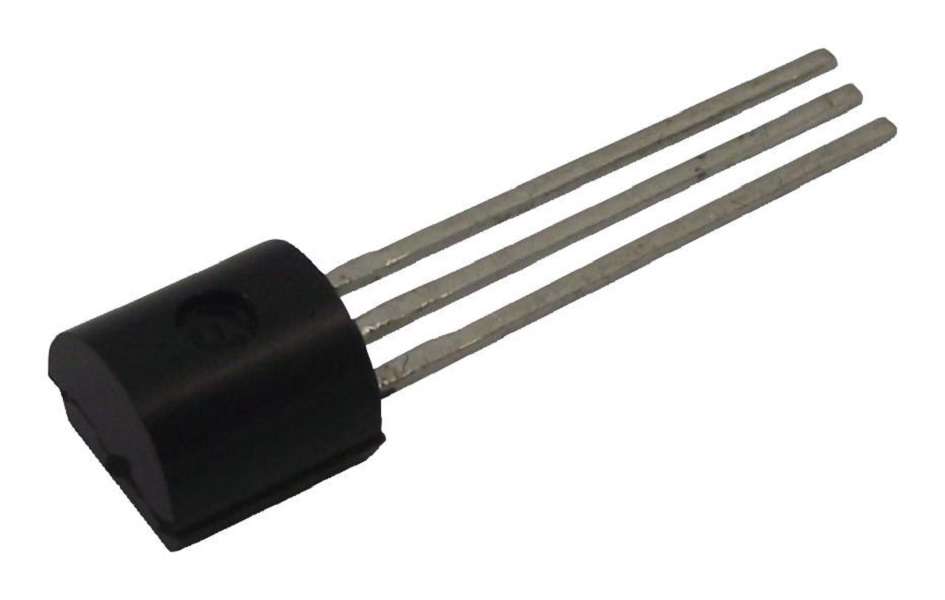

Texas Instruments (DRV5053RAQLPG) Hall Effect Sensor, Bipolar, 2.3 mA

Texas Instruments (DRV5053RAQLPG) Hall Effect Sensor, Bipolar, 2.3 mA

New 331 available
R139.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3124154
Bob Shop ID
674508096
Product OverviewThe DRV5053RAQLPG is a chopper-stabilized Hall Effect Sensor that offers amagnetic sensing solution with superior sensitivity stability over-temperatureand integrated protection features. The 0 to 2V analogue output respondslinearly to the applied magnetic flux density and distinguishes the polarity ofmagnetic field direction. Reverse polarity up to -22V. Internal protectionfunctions are provided for reverse supply conditions, load dump and output shortcircuit.Superior temperature stability - sensitivity ±10% Over-temperature-45mV/mT High SensitivityNo external regulator required2.3mA (Sink), 300µA (Source) Amplified output stage0.2 to 1.8V Output voltage rangeFast 35µs power-ON timeSupports up to 40V load dumpOutput short-circuit protectionOutput current limitationApplicationsSensing & Instrumentation, Automation & Process Control, Test & Measurement,Industrial, Consumer ElectronicsProduct InformationHall Effect Type: BipolarOutput Current: 2.3mASensor Case Style: TO-226AANo. of Pins: 3PinsSupply Voltage Min: 2.5VSupply Voltage Max: 38VOperating Temperature Min: -40°COperating Temperature Max: 125°C
