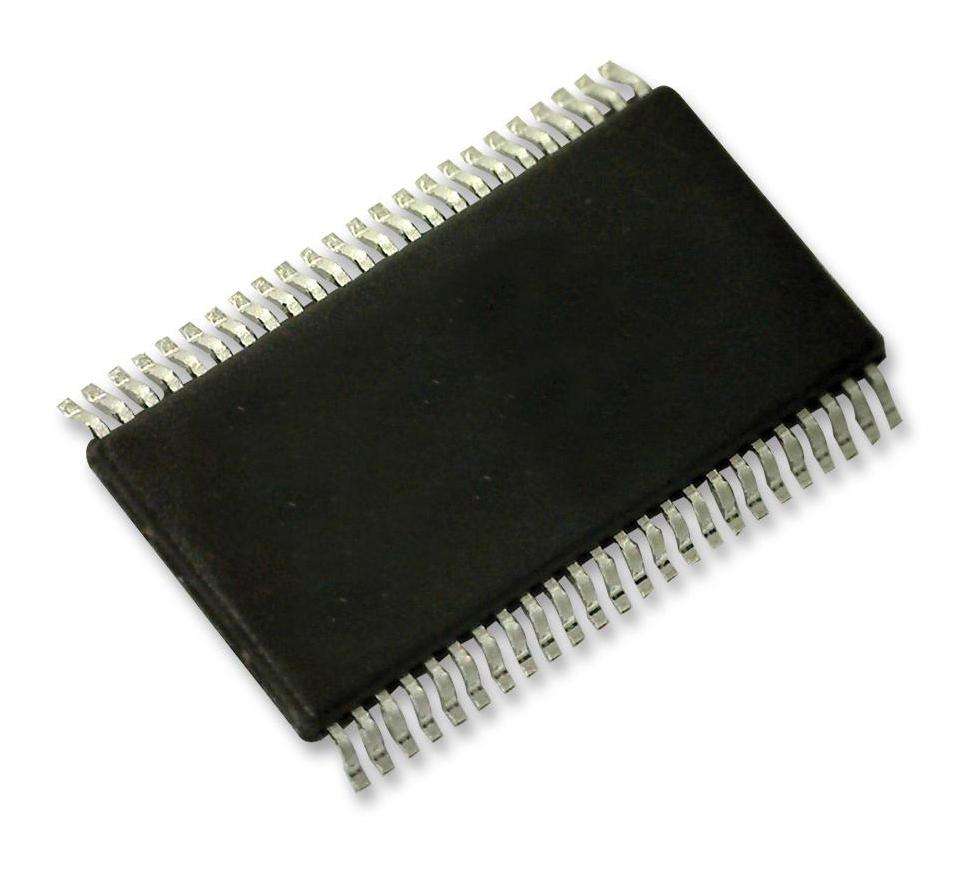

Texas Instruments (DS90CF366MTD/NOPB) LVDS Driver, Differential Receiver

Product OverviewThe DS90CF366MTD/NOPB is a LVDS Receiver converts the three LVDS data streams(up to 1.78Gbps throughput or 223Mbps bandwidth) back into parallel 21 bits ofCMOS/TTL data (18 bits of RGB and 3 bits of Hsync, Vsync and DE). The receiveroutputs are falling edge strobe. This chipset is an ideal means to solve EMI andcable size problems associated with wide, high speed TTL interfaces.Supports VGA, SVGA, XGA and single pixel SXGAPLL requires no external componentsRx power consumption of 7kV (HBM) and >700V (EIAJ)20 to 85MHz Shift clock supportGreen product and no Sb/BrApplicationsImaging, Video & VisionProduct InformationDevice Type: Differential ReceiverPeak-to-Peak Jitter Max: 250psSupply Current Max: 115mAOperating Temperature Min: -10°COperating Temperature Max: 70°CSupply Voltage Min: 3VSupply Voltage Max: 3.6VDriver Case Style: TSSOPNo. of Pins: 48PinsSignaling Rate: 2.38GbpsSignal Input Type: LVDSOutput Level Type: TTLESD HBM: 7kVProduct Range: -Automotive Qualification Standard: -MSL: MSL 2 - 1 year
