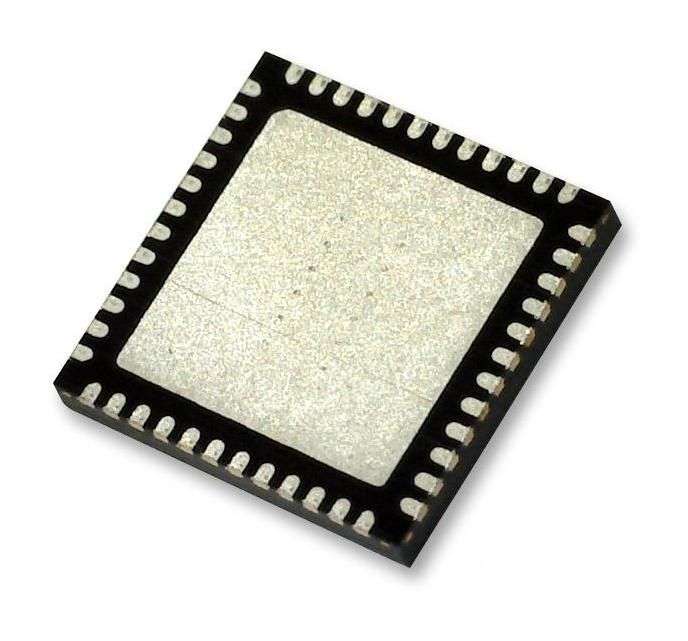

Texas Instruments (DS92LV2421SQE/NOPB) SerDes, Serialiser, LVCMOS

Product OverviewThe DS92LV2421SQE/NOPB is a Channel-Link II Serializer Chipset translates aparallel 24-bit LVCMOS data interface into a single high-speed CML serialinterface with embedded clock information. This single serial stream eliminatesskew issues between clock and data, reduces connector size for transferring a24-bit or less, bus over FR-4 printed circuit board backplanes and balancedcables. In addition to the 24-bit data bus interface, it also features a 3-bitcontrol bus for slow speed signals. This allows implementing video and displayapplications with up to 24-bit per pixel (RGB). Programmable transmitde-emphasis, receive equalization, on-chip scrambling and DC balancing enableslonger distance transmission over lossy cables and backplanes. The chipset isprogrammable though an I²C interface as well as through pins. A built-inAT-SPEED BIST feature validates link integrity and may be used for systemdiagnostics.AC coupled STP interconnect cable up to 10mIntegrated terminations on Ser and DesAT-SPEED link BIST Mode and reporting pinPower down mode minimizes power dissipationData scrambler for reduced EMIDC-balance encoder for AC couplingSelectable output VOD and adjustable de-emphasis24-bit Data, 3-bit control and 10 to 75MHz clock8kV HBMGreen product and no Sb/BrApplicationsImaging, Video & Vision, Medical, Building Automation, Security, Communications& NetworkingProduct InformationSERDES Function: SerialiserData Rate: -IC Input Type: LVCMOSIC Output Type: CMLDriver Case Style: LLPNo. of Pins: 48PinsSupply Voltage Min: 1.71VSupply Voltage Max: 1.89VNo. of Inputs: 1InputsNo. of Outputs: 1OutputsProduct Range: -Automotive Qualification Standard: -MSL: MSL 3 - 168 hours
