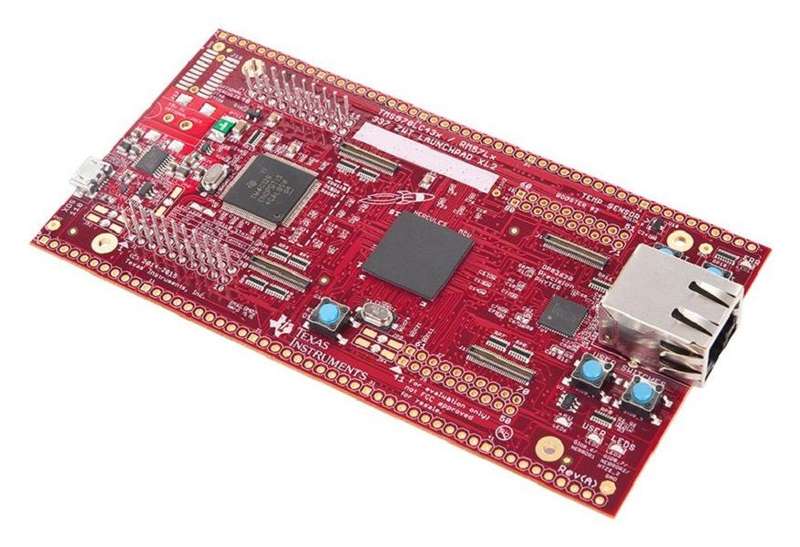

Texas Instruments (LAUNCHXL2-RM57L) Hercules RM57L843 LaunchPad MCU

Product InformationSilicon Manufacturer: Texas InstrumentsNo. of Bits: 32bitSilicon Family Name: Hercules - RM57LxCore Architecture: ARMCore Sub-Architecture: Cortex-R5FSilicon Core Number: RM57L843Kit Contents: LaunchPad Eval Board RM57L843, USB micro Cable, Quick Start GuideProduct Range: -Product OverviewThe LAUNCHXL2-RM57L is a Hercules RM57Lx LaunchPad development kit. It is basedon highest performance Hercules MCU RM57L843. The RM57L843 is a lockstep cached330MHz ARM Cortex-R5F based RM series MCU. Hercules MCUs are designed to aid indevelopment of IEC 61508 functional safety application. The LaunchPad featuresconnectivity options and has capability in addition to standard BoosterPackheaders for further expansion to an FPGA or an external SRAM using high densityconnectors for MCU's parallel interfaces (EMIF, RTP and DMM). The RM57Lx MCUsinclude many diagnostic features such ECC protection for CPU caches & othermemories and a rich set of peripherals. This LaunchPad is pre-programmed withHercules safety MCU demo enabling users to easily learn about the key safety,data acquisition and control features of Hercules MCU platform.USB powered and capability for external 5V supplyOnboard USB XDSICDIc2 JTAG debugIEEE 1588 precision time Ethernet PHY DP83630Onboard SCI to PC serial communicationUser programmable push buttonsReset switches, LEDs and analogue inputTwo 40 pin BoosterPack XL headers (one populated)High density connectors for parallel ports (EMIF, RTP, DMM) for furtherexpansionFootprint for prototyping headers (not populated) to bring out all MCU pinsExternal high speed emulation via 14pin TI-JTAG header (not populated)
