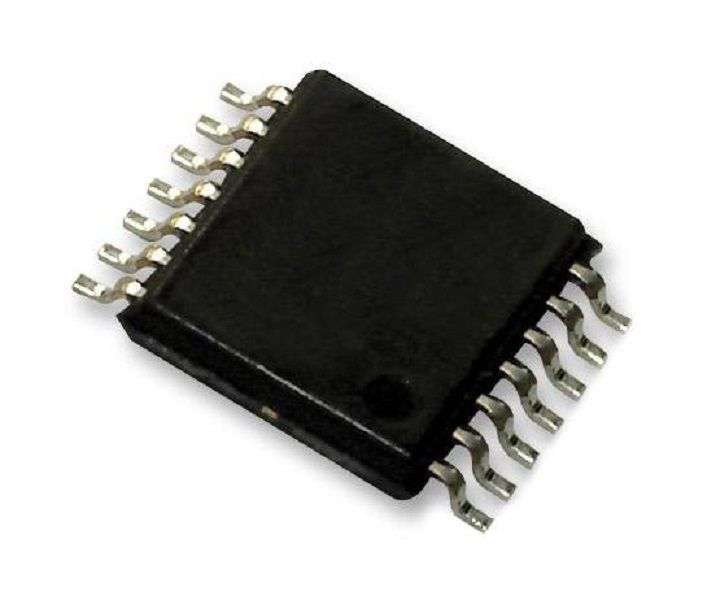

Texas Instruments (LM2852XMXA-1.2/NOPB) Buck Step Down,Switching Regulator

Synchronous Buck Step Down,Switching Regulator, Fixed, 2.85V-5.5V In, 1.2V/2AOut, 1.5 MHz, TSSOP-14Product OverviewThe LM2852XMXA-1.2/NOPB is a Simple Switcher® synchronous Buck Regulatorfeatures a high frequency step-down switching voltage regulator capable ofdriving up to a 2A load with excellent line and load regulation. The LM2852 canaccept an input voltage between 2.85 and 5.5V and deliver an output voltage thatis factory programmable from 0.8 to 3.3V in 100mV increments. It comes with aswitching frequency of 500kHz 1.5MHz (LM2852X). It also features internal,type-three compensation to deliver a low component count solution. It includesprotection circuitry that monitors the voltage on the switch pin. Under certainconditions, switching is disabled in order to protect the switching devices. Oneresult of the protection circuitry may be observed when power to the LM2852 isapplied with no or light load on the output. The output regulates to the ratedvoltage, but no switching may be observed. As soon as the output is loaded, theLM2852 begins normal switching operation.Factory EEPROM set output voltagesVoltage mode controlInternal type-three compensationInternal 60mR MOSFET switchesGreen product and no Sb/BrApplicationsPortable Devices, Computers & Computer Peripherals, Power ManagementProduct InformationTopology: Synchronous Buck (Step Down)Input Voltage Min: 2.85VInput Voltage Max: 5.5VDC / DC Converter IC Case: HTSSOPNo. of Pins: 14PinsOutput Current: 2AOutput Voltage Nom: 1.2VSwitching Frequency: 1.5MHzOperating Temperature Max: 125°CMSL: MSL 1 - Unlimited
