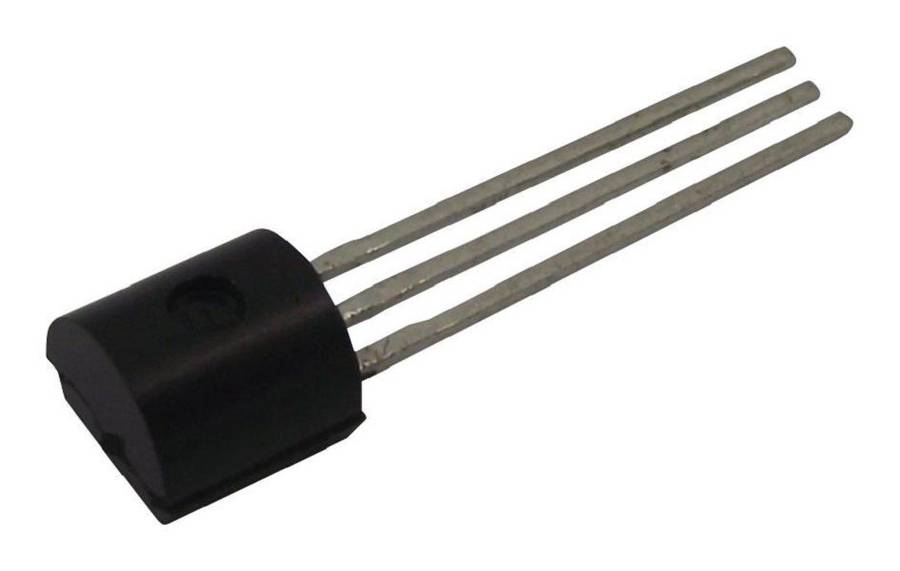

Texas Instruments (LM335Z/NOPB)Temperature Sensor IC, Voltage, 0°C to +1°C

Product OverviewThe LM335Z/NOPB is a precision, easily-calibrated, Integrated CircuitTemperature Sensor. Operating as a 2-terminal zener, the LM135 has a breakdownvoltage directly proportional to absolute temperature at 10mV/°K. With less than1R dynamic impedance, the device operates over a current range of 400µA to 5mAwith virtually no change in performance. When calibrated at 25°C, the LM135 hastypically less than 1°C error over a 100°C temperature range. Unlike othersensors, the LM135 has a linear output. The low impedance and linear output makeinterfacing to readout or control circuitry are especially easy.Directly calibrated to Kelvin temperature scale1°C Initial accuracyOperates from 400µA to 5mALess than 1R dynamic impedanceEasily calibratedWide operating temperature range200°C Over rangeGreen product and no Sb/BrProduct InformationIC Output Type: VoltageSensing Accuracy Range: 0°C to +1°CSensing Temperature Min: -40°CSensing Temperature Max: +100°CSensor Case Style: TO-92No. of Pins: 3PinsSupply Voltage Min: 5VSupply Voltage Max: 5VProduct Range: LMx35, LMx35AAutomotive Qualification Standard: -MSL: -
