Texas Instruments (LM397MF/NOPB) Analogue Comparator, General Purpose

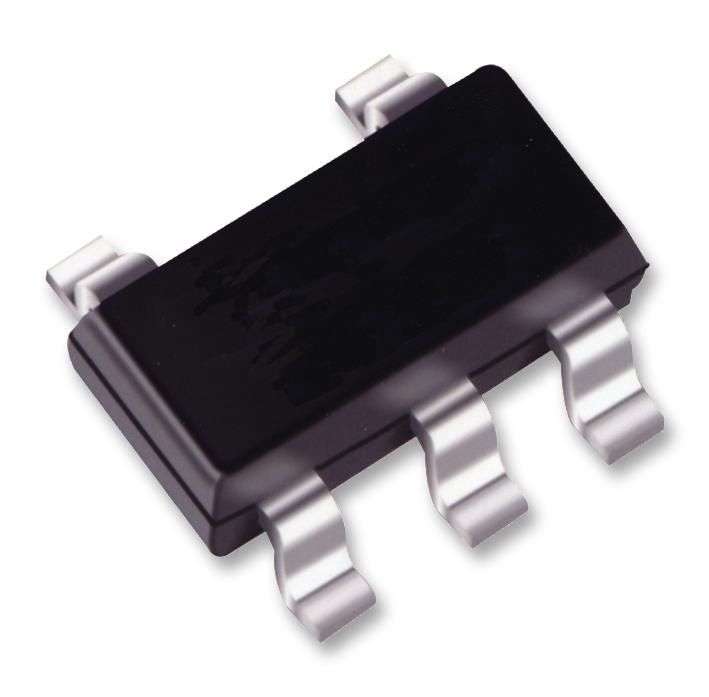

Analogue Comparator, General Purpose, 1 Comparator, 440 ns, 5V to 30V, SOT-23, 5PinsProduct OverviewThe LM397MF/NOPB is a single general purpose Voltage Comparator with an inputcommon mode that includes ground. The LM397 is designed to operate from a single5 to 30V power supply or a split power supply. Its low supply current isvirtually independent of the magnitude of the supply voltage. The comparatorfeatures an open-collector output stage. This allows the connection of anexternal resistor at the output. The output can directly interface with TTL,CMOS and other logic levels, by tying the resistor to different voltage levels(level translator).Single or dual power supplies300µA Low supply current7nA Low input bias current±1nA Low input offset current±2mV Low input offset voltageApplicationsIndustrial, Signal ProcessingProduct InformationComparator Type: General PurposeNo. of Comparators: 1 ComparatorResponse Time: 440nsSupply Voltage Range: 5V to 30VComparator Case Style: SOT-23No. of Pins: 5PinsIC Output Type: CMOS, TTLOperating Temperature Min: -40°COperating Temperature Max: 85°CMSL: MSL 1 - Unlimited
