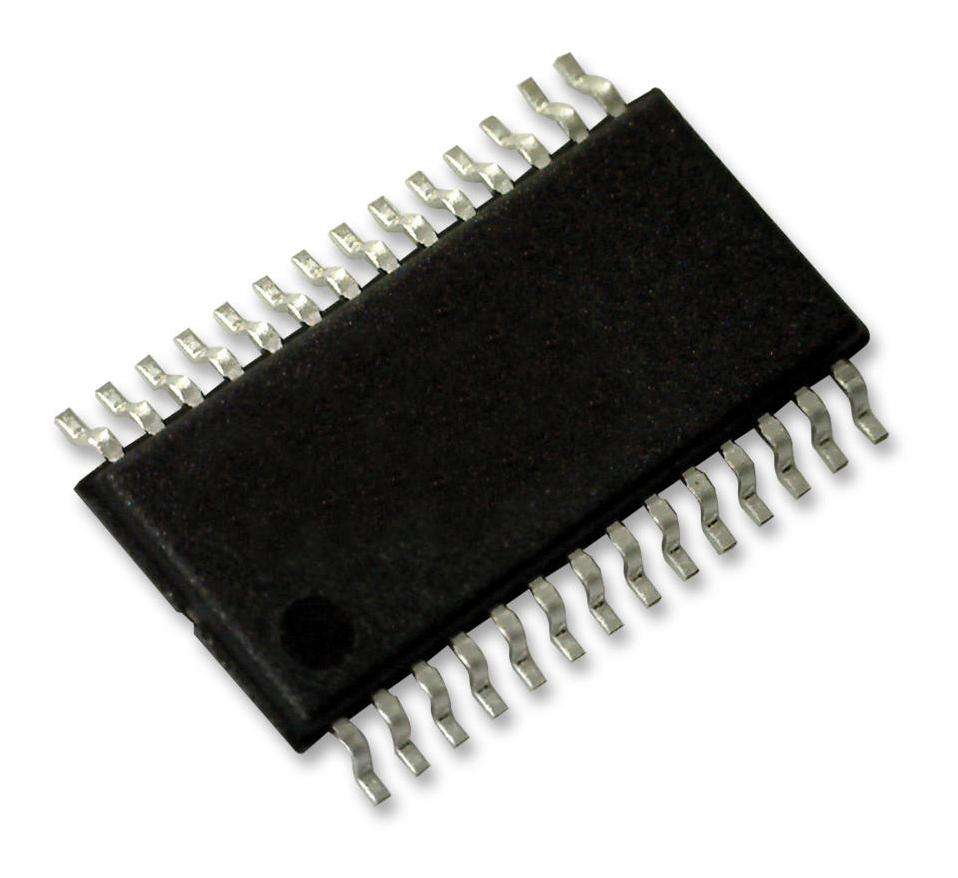

Texas Instruments (LM87CIMT/NOPB .) Temperature Sensor IC, Voltage, ± 3°C

Temperature Sensor IC, Voltage, ± 3°C, -40 °C, +125 °C, TSSOP, 24 PinsProduct OverviewThe LM87CIMT is a highly integrated Data Acquisition System for hardwaremonitoring of servers, personal computers or virtually any microprocessor-basedsystem. The LM87 has an on-chip digital output temperature sensor with 8-bitresolution as well as the capability of monitoring 2 external diode temperaturesto 8-bit resolution, an 8 channel analogue input ADC with 8-bit resolution andan 8-bit DAC. A channel on the ADC measures the supply voltage applied to theLM87, nominally 3.3 V. Two of the ADC inputs can be redirected to a counter thatcan measure the speed of up to 2 fans. A slow speed ?? ADC architecture allowsstable measurement of signals in an extremely noisy environment. The DAC, with a0 to 2.5 V output voltage range, can be used for fan speed control. Additionalinputs are provided for Chassis Intrusion detection circuits and VID monitorinputs. The VID monitor inputs can also be used as IRQ inputs if VID monitoringis not required.Remote diode temperature sensing (2 channels)8 Positive voltage inputs with scaling resistors for monitoring +5 V, +12 V,+3.3 V, +2.5 V, VccpChassis intrusion detector inputVID0-VID4 or IRQ0-IRQ4 monitoring inputsApplicationsSensing & Instrumentation, Computers & Computer Peripherals, Communications &Networking, Test & Measurement, Thermal ManagementProduct InformationIC Output Type: VoltageSensing Accuracy Range: ± 3°CSensing Temperature Min: -40°CSensing Temperature Max: +125°CSensor Case Style: TSSOPNo. of Pins: 24PinsSupply Voltage Min: 2.8VSupply Voltage Max: 3.8VProduct Range: -MSL: MSL 1 - Unlimited
