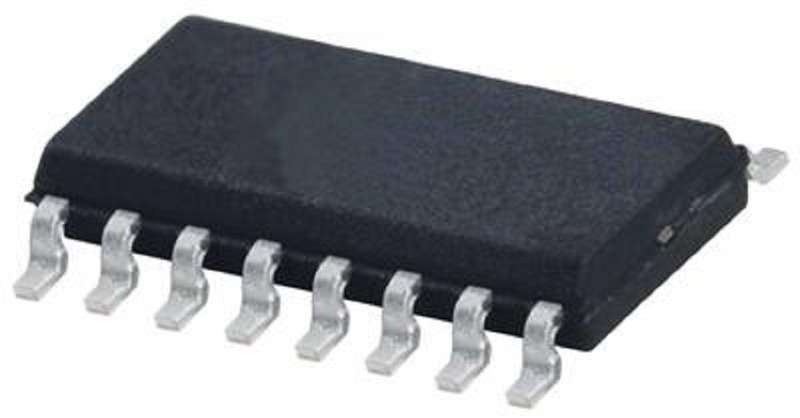

Texas Instruments (MAX202IDW .) Transceiver RS232, 2 Drivers

Product OverviewThe MAX202IDW is a RS-232 dual Line Driver/Receiver with ±15kV ESD protectionpin-to-pin (serial-port connection pins, including GND). The device meets therequirements of TIA/EIA-232-F and provides the electrical interface between anasynchronous communication controller and the serial-port connector. The chargepump and four small external capacitors allow operation from a single 5V supply.The device operates at data signalling rates up to 120kbps and a maximum of30V/ms driver output slew rate.Continuous short-circuit durationLatch-up performance exceeds 100mA per JESD 78, class I300R Output resistanceGreen product and no Sb/BrApplicationsPortable Devices, Computers & Computer PeripheralsProduct InformationDevice Type: RS232 TransceiverIC Interface Type: RS232No. of Drivers: 2DriversNo. of Receivers: 2ReceiversSupply Voltage Min: 4.5VSupply Voltage Max: 5.5VDriver Case Style: SOICNo. of Pins: 16PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
