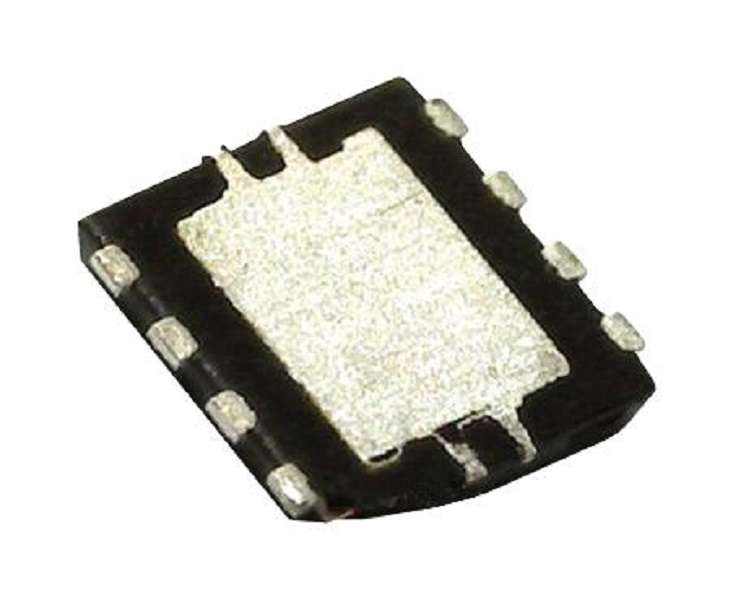

Texas Instruments (SN55HVD251DRJR) CAN Bus, CAN, 1, 1, 4.5 V, 5.5 V, SON

Product OverviewThe SN55HVD251DRJR is an industrial CAN Transceiver provides differentialtransmit capability to the bus and differential receive capability to a CANcontroller at speeds up to 1Mbps. Designed for operation in harsh environments,the device features cross-wire, overvoltage and loss of ground protection to±36V. Also featured are over-temperature protection as well as common-mode rangeand tolerance to transients of ±200V. The transceiver interfaces thesingle-ended CAN controller with the differential CAN bus found in industrial,building automation and automotive applicationsDrop-in improved replacementBus-fault protectionHigh input impedance allows up to 120 nodesBus pin ESD protection exceeds 14kV HBMUnpowered node does not disturb the bus200µA Typical low-current standby modeThermal shutdown protectionGlitch-free power-up and power-down CAN bus protection forhot-pluggingApplicationsCommunications & Networking, Automation & Process ControlProduct InformationIC Interface Type: CANNo. of TX Buffers: 1No. of RX Buffers: 1Supply Voltage Min: 4.5VSupply Voltage Max: 5.5VInterface Case Style: SONNo. of Pins: 8PinsOperating Temperature Min: -55°COperating Temperature Max: 125°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 2 - 1 year
