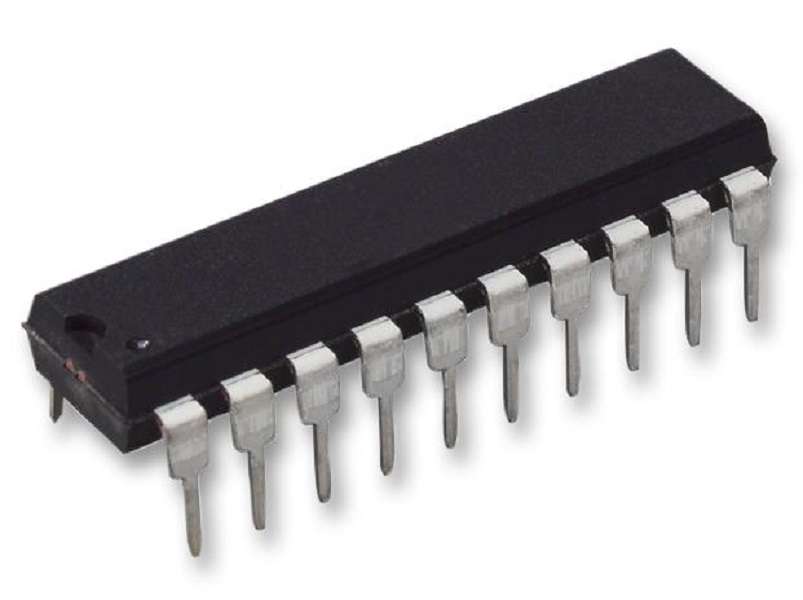

Texas Instruments (SN74HC245N) Transceiver, 74HC245, 2 V to 6 V, DIP-20

Product OverviewThe SN74HC245N is an Octal Bus Transceiver with 3-state outputs, designed forasynchronous 2-way communication between data buses. The control-functionimplementation minimizes external timing requirements. The device allows datatransmission from the A bus to the B bus or from the B bus to the A bus,depending on the logic level at the direction-control (DIR) input. Theoutput-enable (OE)\ input can be used to disable the device so that the busesare effectively isolated.High-current 3-state outputs drive bus lines directly or up to 15 LSTTL loadsLow power consumption, 80µA maximum ICC12ns Typical TPD±6mA Output drive at 5VLow input current of 1µA (maximum)ApplicationsIndustrialProduct InformationLogic Device Type: Transceiver, Non InvertingLogic Family / Base Number: 74HC245Logic Case Style: DIPNo. of Pins: 20PinsSupply Voltage Min: 2VSupply Voltage Max: 6VLogic IC Family: 74HCLogic IC Base Number: 74245Operating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -Automotive Qualification Standard: -MSL: -
