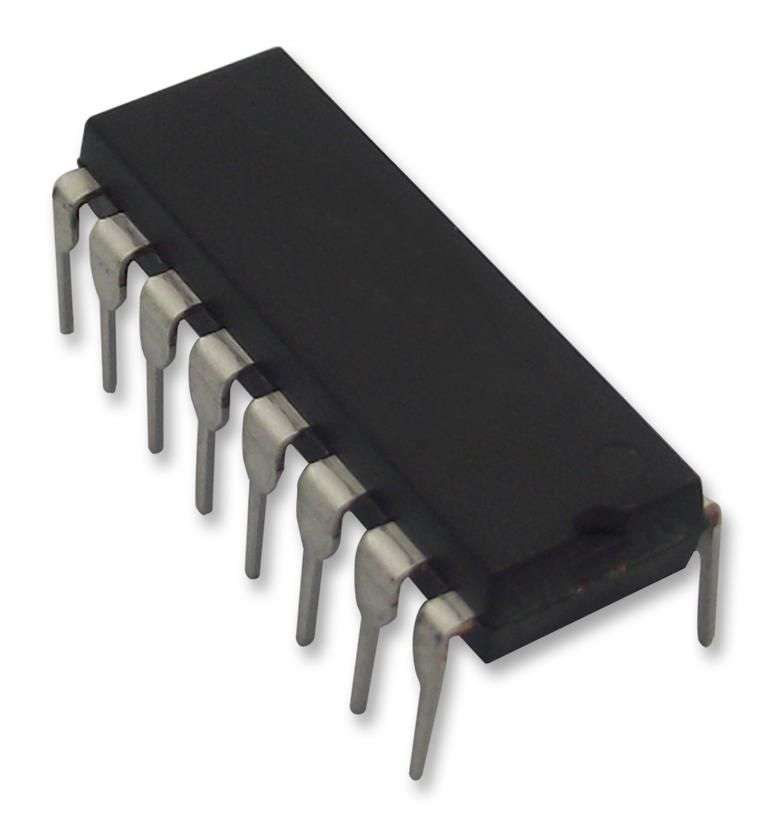

Texas Instruments (SN74LS193N) Binary Synchronous Up / Down Counter, 32 MHz
New
295 were available
R159.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item
ready to ship within 7 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
Binary Synchronous Up / Down Counter, 32 MHz, 4.75 V to 5.25 V, DIP-16Product OverviewThe SN74LS193N is a synchronous 4-bit up/down Binary Counter with dual clock andclear. This monolithic circuit is synchronous reversible counter having acomplexity of 55 equivalent gates. Synchronous operation is provided by havingall flip-flops clocked simultaneously so that the outputs change coincidentlywith each other when so instructed by the steering logic. This mode of operationeliminates the output counting spikes which are normally associated withasynchronous counter. The outputs of the four flip-flops are triggered by alow-to-high-level transition of either count input. The direction of counting isdetermined by which count input is pulsed while the other count input is high. Aclear input has been provided which forces all outputs to the low level when ahigh level is applied. The clear function is independent of the count and loadinputs. The clear, count and load inputs are buffered to lower the driverequirements.Cascading circuitry provided internallyIndividual preset to each flip-flopFully independent clear inputPb-free productProduct InformationLogic Family / Base Number: 74LS193Counter Type: Binary, Synchronous, Up / DownClock Frequency: 32MHzCount Maximum: 16Logic Case Style: DIPNo. of Pins: 16PinsSupply Voltage Min: 4.75VSupply Voltage Max: 5.25VLogic IC Family: 74LSLogic IC Base Number: 74193Operating Temperature Min: 0°COperating Temperature Max: 70°CProduct Range: -MSL: -
