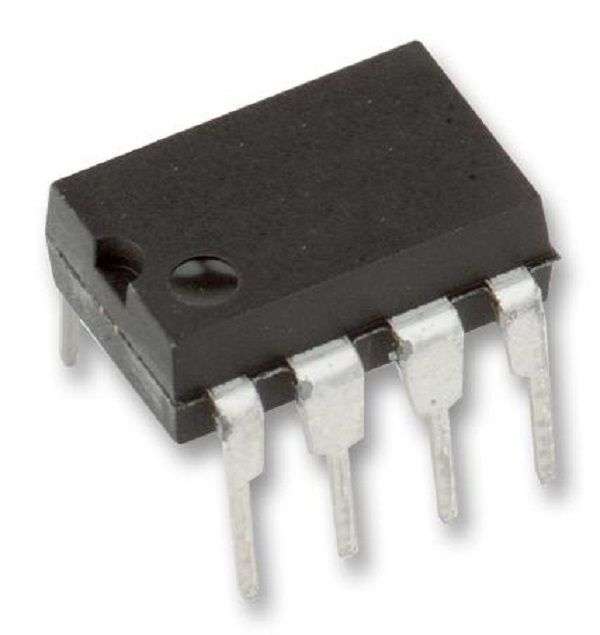

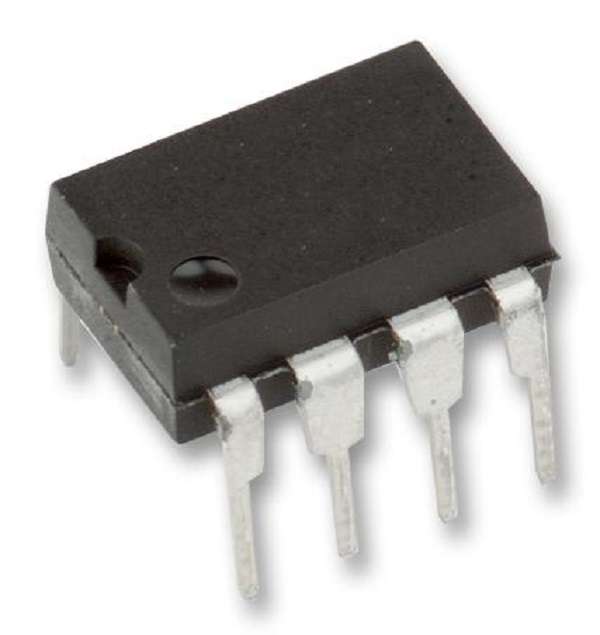

Texas Instruments (TLE2072CP) Operational Amplifier, 2 Amplifier

Operational Amplifier, 2 Amplifier, 10 MHz, 35 V/µs, ± 2.25V to ± 19V, DIP, 8PinsProduct OverviewThe TLE2072CP is a dual low-noise high-speed JFET-input Operational Amplifiermore than double the bandwidth and triple the slew rate of the TL07x of BiFEToperational amplifier. Texas Instruments Excalibur process yields a typicalnoise floor of 11.6nV/?Hz, 17nV/?Hz ensured maximum, offering immediateimprovement in noise-sensitive circuits designed using the TL07x. The TLE207xalso has wider supply voltage rails, increasing the dynamic signal range forBiFET circuits to ±19V. On-chip zener trimming of offset voltage yieldsprecision grades for greater accuracy in DC-coupled applications. The TLE207x ispin-compatible with lower performance BiFET operational amplifier for ease inimproving performance in existing designs. BiFET operational amplifier offersthe inherently higher input impedance of the JFET-input transistors, withoutsacrificing the output drive associated with bipolar amplifiers. It is suitedfor interfacing with high-impedance sensors or very low-level AC signals.Direct upgrades to TL07x BiFET operational amplifierOn-chip offset voltage trimming for improved DC performanceWider supply rails increase dynamic signal range to ±19V17nV/?Hz Ensured maximum noise floorApplicationsSignal Processing, Sensing & InstrumentationProduct InformationNo. of Amplifiers: 2 AmplifierBandwidth: 10MHzSlew Rate: 35V/µsSupply Voltage Range: ± 2.25V to ± 19VAmplifier Case Style: DIPNo. of Pins: 8PinsOperating Temperature Min: 0°COperating Temperature Max: 70°C
