TEYUN NA8 8-channel Small Mixing Console Mobile Phone Sound Card Live Broadcast Computer Recordin...

Specification
1. Frequency response: Input STEREO OUT 0.5dB / -1.0dB (20Hz020kHz), test rated output level @ 1kHz, GAIN knob: Medium
2. Distortion: 0.02% @ +10dBu (20 Hz~ 20kHz)
3. Residual noise: -85 dBu
4-channel crosstalk: (1kHz) -83dB
5. Input: MiC*6, 2RCA, PC, 2LINE, USB, BT, 3.5MINI

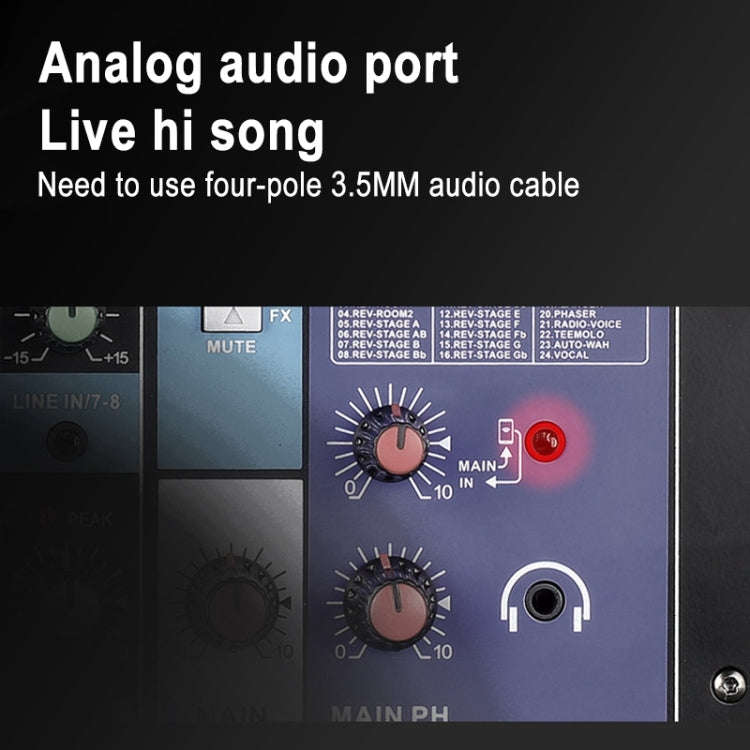

6. Output: STEREO OUT: 2, PHONES: 3.5MINI headphone output: 1, 3.5MINI mobile phone live output
7. Bus: Stereo: 1
8. Input channel function:
HPF (Mono): 80 Hz, 12dB / Octave
EQ high gain: + 15dB / -15dB,
Treble 10kHz, midrange 2.5KHz, bass 100Hz
Peak LED: When the signal after EQ reaches 3dB below the distortion, the LED lights up
9. Level indicates the MAIN STETREO LEVEL knob, when the signal after MAIN LEVE, the green light is on
When it reaches 0dB, when the signal reaches 0dB below the distortion, the red light will be clipped, and the LED will light up and light up.
10. Input and output level: MIC (-60dB) LINE ONPUT (-40dB)

Features

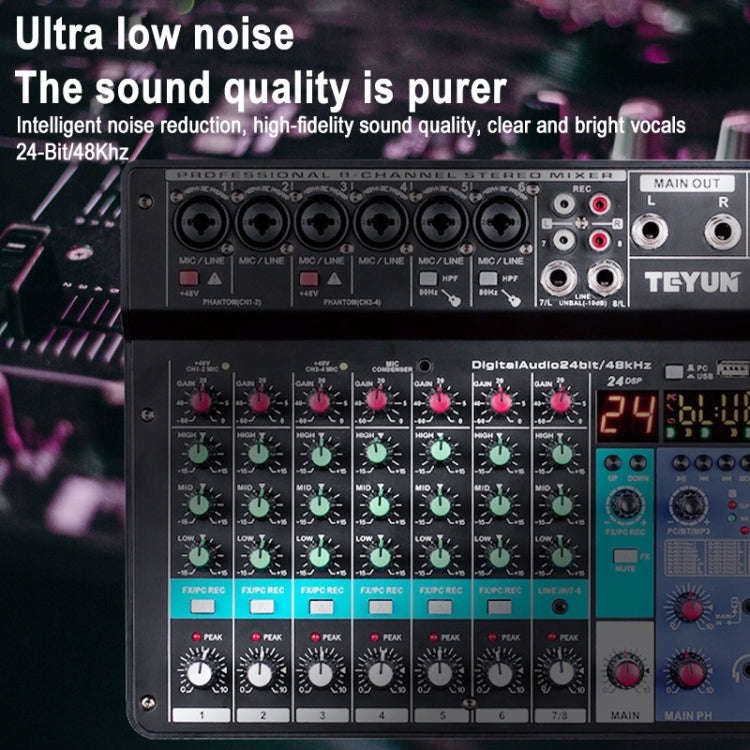

1. Intelligent noise reduction, high fidelity sound quality, clear and bright vocals, 24-Bit/ 48Khz.
2. Built-in high-speed ARM chip, with unique low-noise, voice-changing, pitch-changing, reverberation, delay, electronic sound effects and other processing technologies.
3. Built-in 5.0 bluetooth chip, support bluetooth devices such as mobile phones/computers/tablets, simple and convenient, easy and convenient, barrier-free 8-10 meters.
4. LO0PBACK supports internal recording, integrating the mixer and sound card into one, easy to achieve, recording or webcasting.
5. Multiple record groups are optional, and dual monitor mode is optional.
