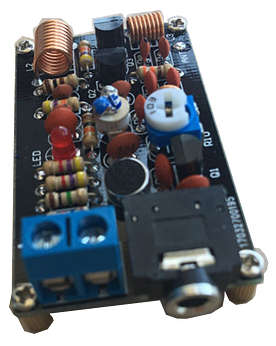

TFM009 FM Wireless Transmitter DIY Kit Radio DC 1.5V-9.0V
Operating Voltage : 1.5 ~ 9V
Operating Current : 3.3mA ~ 29mA
Operating Frequency : 76 ~108MHz
Audio Response : 20Hz ~ 15KHz
Radio Frequency Output Impedance : 50 ohm
Transmitting Distance : 100 ~ 1000m
Second Harmonic : > -40dB
Radio Frequency Power : -2dBm ~ 17dBm
Receiving Device : FM Radio, Cellphone with FM radio
Size : 50 x 32mm

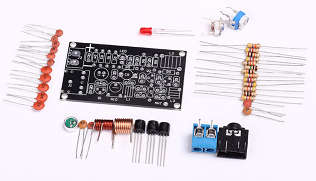

Components
Resistor - 330Ω x 1 (R7)
Resistor - 1MΩ x 1 (R3)
Resistor - 100Ω x 1 (R8)
Resistor - 10KΩ x 2 (R4 and R5)
Resistor - 4.7KΩ x 2 (R1 and R2)
Resistor - 47KΩ x 2 (R6 and R9)
Capacitor 0.001uF (102) x 2 (C3 and C4)
Capacitor 15pF x 2 (C10 and C14)
Capacitor 47pF x 2 (C15 and C16)
Capacitor 30pF x 2 (C11 and C12)
Capacitor 0.1uF(104) x 5 (C1, C2, C5, C6 and C7)
Capacitor 200pF(201) x 1 (C13)
Capacitor 24pF x 1 (C9)
Microphone x 1 (MIC)
3mm Red LED x 1 (LED)
4T Inductance x 1 (L1)
9T Inductance x 1 (L2)
8T Inductance x 1 (L3)
5P Audio Jack x 1 (J1)
Adjustable Capacitor x 1 (C8)
Potentiometer 10K(103) x 1 (R10)
KF-301-2P Connector x 1 (J2)
S9014 TO-92 x 1 (Q1)
S9018 TO-92 x 2 (Q2 and Q3)
