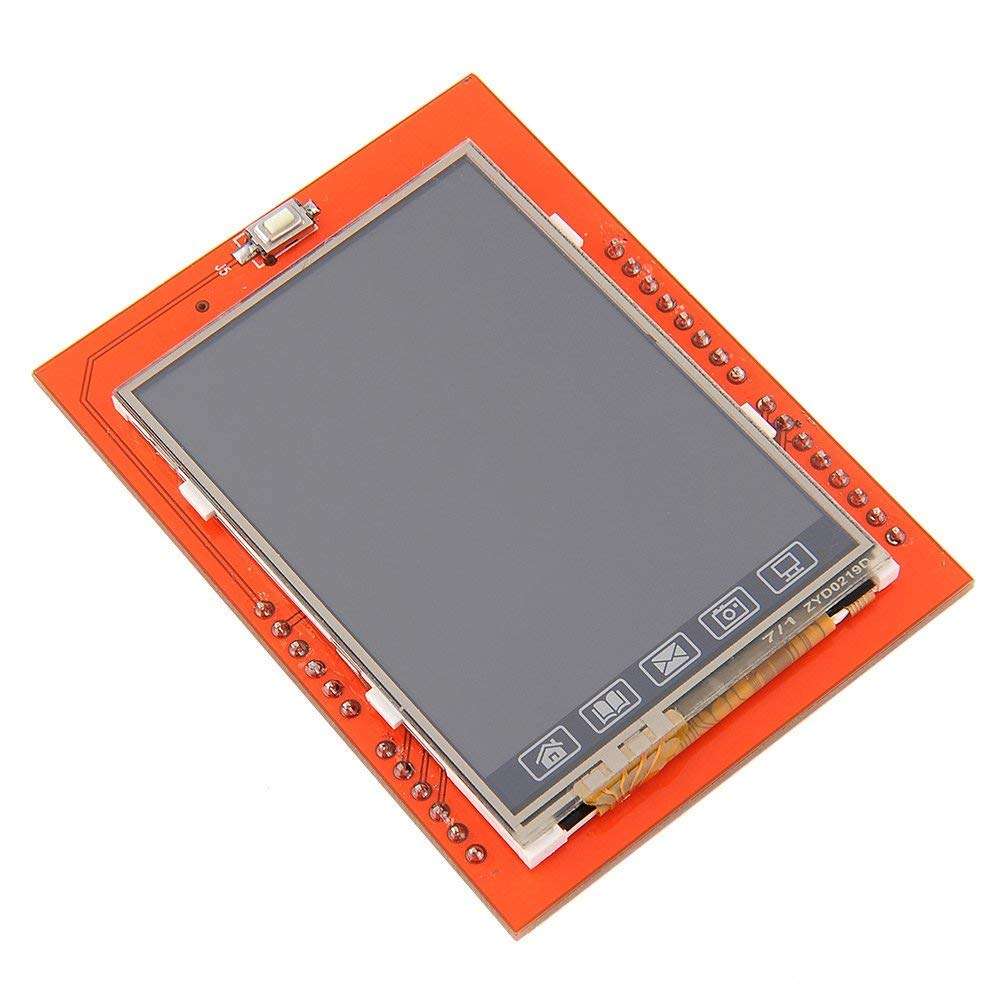

TFT LCD Touch Screen Shield 2.4 inch & microSD card reader for Arduino Uno
New
R319.11
Closed
2 May 24 10:45
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Customer ratings:
Product code
DL-025
Bob Shop ID
593183963
A thin-film-transistor liquid-crystal display (TFT LCD) is a variant of a liquid-crystal display that uses thin-film-transistor technology to improve image qualities such as addressability and contrast.
A TFT or active matrix display is more responsive to change. For example, when you move your mouse across the screen, a TFT display is fast enough to reflect the movement of the mouse cursor. (With a passive matrix display, the cursor temporarily disappears until the display can "catch up.")
Features of 2.4 Inch TFT LCD Touch screen:
- 2.4" (diagonal) LCD TFT display.
- Bright, 4 white-LED backlights, on by default but you can connect a transistor to a digital pin for backlight control.
- Colorful, 18-bit 262,000 different shades.
- 4-wire resistive touch screen
- spfd5408 controller with built-in video RAM buffer.
- 8-bit digital interface, plus 4 control lines.
- Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD.
- 5V compatible, use with 3.3V or 5V logic.
- The TFT LCD touchscreen comes with an SD Card Slot.
[learn_more caption="Example Sketch & Diagram"]
Library1: Adafruit_TFTLCD.zipLibrary2: Adafruit_GFX.zipLibrary3: TouchScreen.zipOpen "tftpaint" from the "Adafruit_TFTLCD" library and change as follow:#define YP A1 // must be an analog pin, use "An" notation!#define XM A2 // must be an analog pin, use "An" notation!#define YM 7 // can be a digital pin#define XP 6 // can be a digital pin
To
#define YP A2 // must be an analog pin, use "An" notation!#define XM A1 // must be an analog pin, use "An" notation!#define YM 6 // can be a digital pin#define XP 7 // can be a digital pinThen uncoment "//pinMode(XP, OUTPUT);" and "// pinMode(YM, OUTPUT);"[/learn_more]
