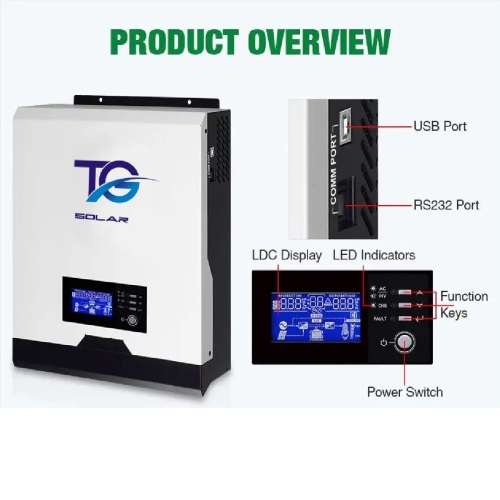

Model- TG Solar 3kva HY3022P
RATED POWER
3000VA/2400W
INPUT
Voltage: 230VAC
Selectable Voltage Range : 170-280VAC(For Personal Computers) 90-280VAC(For Home Appliances)
Frequency Range : 50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt. Mode) : 230VAC 5%
Surge Power: 6000VA
Efficiency(Peak): 90%-93%
Transfer Time: 10ms(For Personal Computers) 20ms(For Home Appliances)
Waveform: Pure sine wave
BATTERY (Battery not included)
Battery Voltage: 24VDC
Floating Charge Voltage: 27VDC
Overcharge Protection: 31VDC
SOLAR CHARGER & AC CHARGER
Solar charge type: PWM
Max.PV Array Open Circut Voltage: 80VDC
Max.PV Array Power: 1200W
Max.Solar Charge Current: 50A
Max.AC Charge Current: 25A
Max.Charge Current: 75A
PHYSICAL
Dimension Dx WxH(mm): 420x320x170
Net Weight(kgs): 8
ENVIRONMENT
Humidity: 5%to 95%Relative Humidity(Non-condensing)
Operating Temperature: 0 C to 55 C
What's in the box
1 x TG Solar 3kva hybrid inverter
