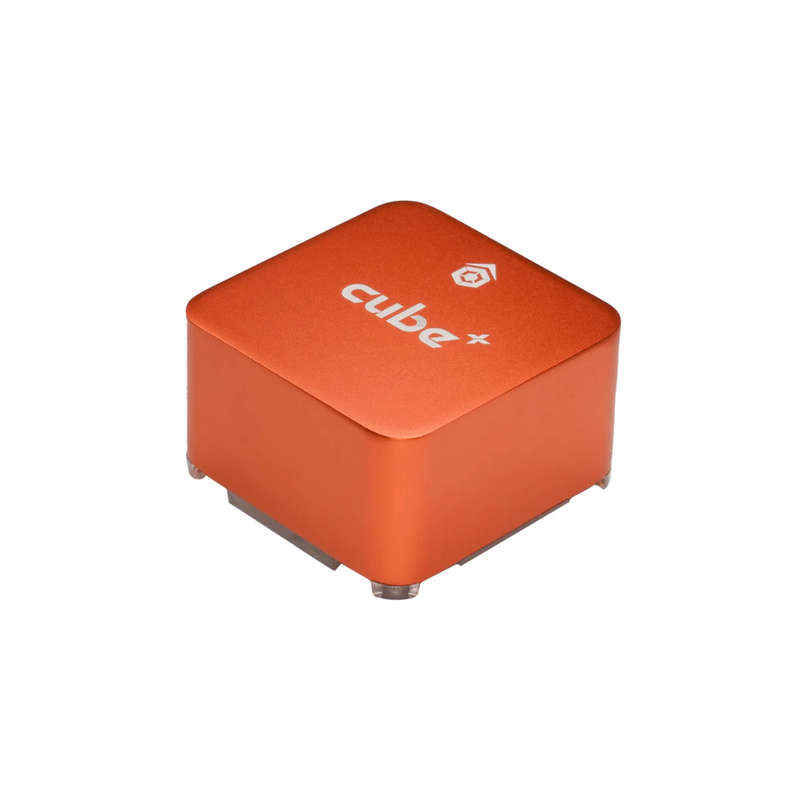

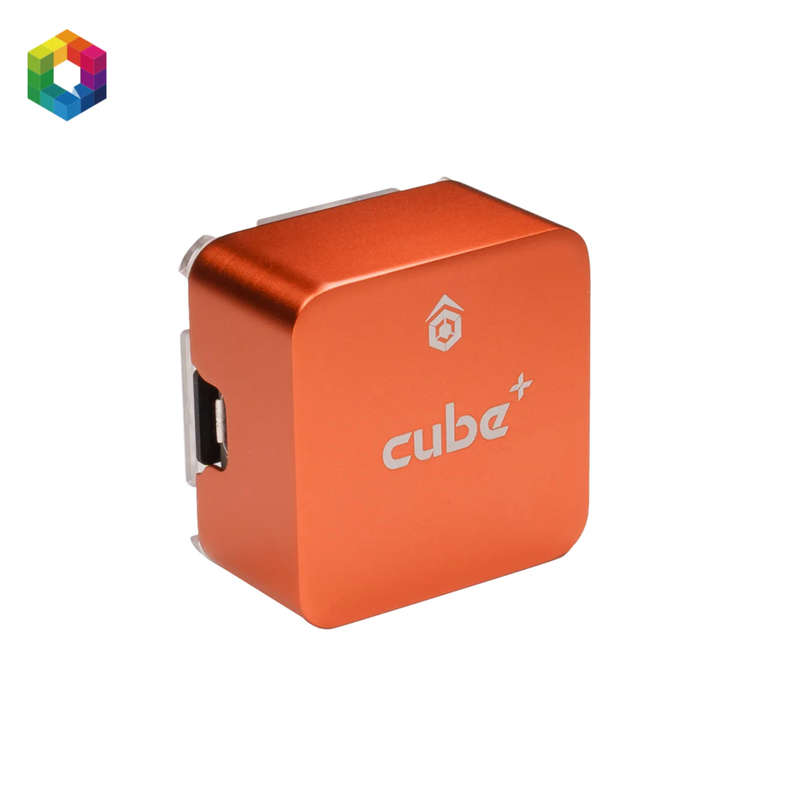

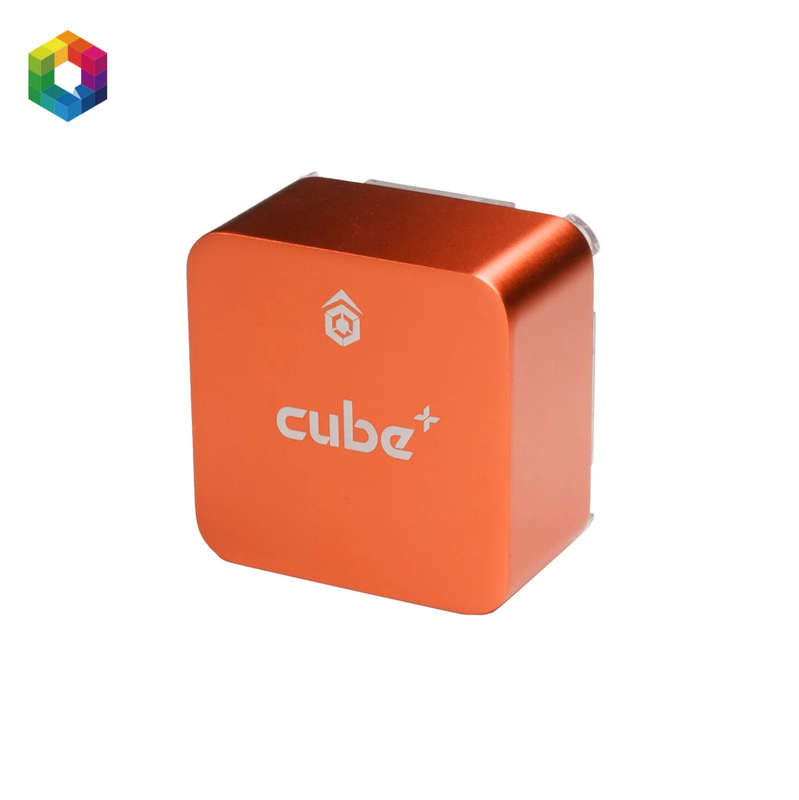

The Cube Orange+
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Product Description
-
An integrated and single board/box all-in-one flight controller
-
Provide sufficient interfaces for most applications without expansion
-
Improve ease-of-use ,processing performance and processing speed
-
Improve sensor performance and efficiency
-
Improve microcontroller resources
-
Better reliability and reduce integration complexity
-
Integrated cryptographic and HASH modules: AES-128, -192 and -256 for hardware acceleration. Support GCM, CCM, 3DES, and hash (MD5, SHA-1, and SHA-2) algorithm
-
All-in-one design with integrated Flight Management Unit (FMU), I/O module and sufficient data ports
-
Improved manufacturability. Better performance and faster processing speed.
-
Separate power supplies for FMU and I/O (see power architecture section)
-
On-board backup battery for FMU and I/O SRAM / RTC
-
Integrable with the standard power brick
Features

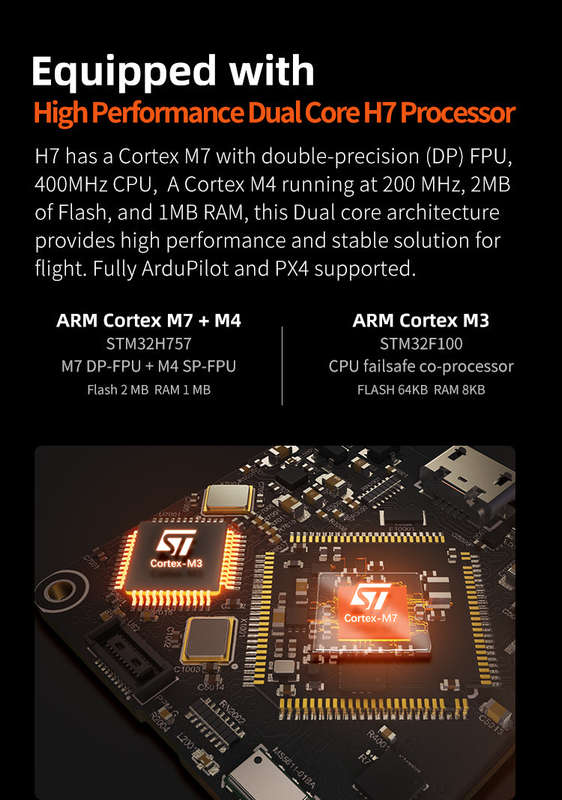

- Faster H7 SOC with 1MB ram. (STM32H757)
- Upgraded triple redundant IMU sensors.
- Two sets of IMU are vibration-isolated mechanically, reducing the effects of frame vibration.
- Temperature-controlled IMUs, allowing optimum working temperature of IMUs.
- Entire flight management unit (FMU) and inertial management unit (IMU) housed in small form factor (cube).
- Manufacturers can design their own carrier boards to suit their specific needs now and in the future.
- CubePilot carrier board compatible. All inputs and outputs go through a 80 pin DF17 connector, allowing plug-in solution for manufacturers of commercial systems.
For more details, please check the official CubePilot documentation:
Cube Module Overview
Manufactured in Taiwan
NDAA YEAR 2023 Compliant
