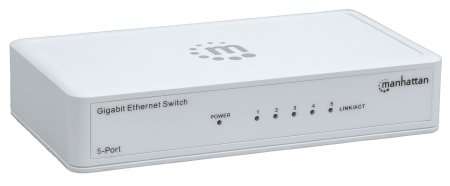

The Manhattan 5-Port Gigabit Ethernet Switch is perfect for home office or entertainment system use, as well as many small office applications. Small, powerful and reliable, this Gigabit Ethernet Switch is easy to install and connects up to five Ethernet-ready devices - computers, gaming systems, network printers, media streamers, network attached storage, Smart TVs ... you name it - at speeds of up to 1000 Mbps (1 Gigabit) over standard Cat5e or Cat6 Ethernet cables.
Product Overview
The Manhattan 5-Port Gigabit Ethernet Switch is perfect for home office or entertainment system use, as well as many small office applications. Small, powerful and reliable, this Gigabit Ethernet Switch is easy to install and connects up to five Ethernet-ready devices computers, gaming systems, network printers, media streamers, network attached storage, Smart TVs ... you name it at speeds of up to 1000 Mbps (1 Gigabit) over standard Cat5e or Cat6 Ethernet cables.
The auto features of this switch make installation plug and play and hassle free. Plus, it has Green Ethernet technology, allowing it to monitor power usage and turn off unused ports to save electricity.
Features
5-port Gigabit Ethernet switch expands your network in an instant
Easy plug-and-play installation simply power it up and start using it
Green Ethernet power-saving technology deactivates unused ports
Supports any combination of 10 Mbps, 100 Mbps or 1 Gbps network devices
Ultra-compact, Fanless design ideal for home and office applications
Store and forward switching architecture
Five 10/100/1000 auto-sensing ports automatically detect optimal network speeds
Compatible with all Windows and Macintosh systems.
Specifications
Connectors: 5 10/100/1000 Mbps RJ45 ports
Cable: Cat3, 4, 5 UTP/STP
Duplex modes: all ports (up to 200 Mbps)
Uplink: all ports Auto MDI/MDX (Auto Uplink)
Switch architecture: store and forward switch technology
Standards
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control and Backpressure)
IEEE 802.3az (Energy Efficient Ethernet)
Filter/forward rate:
- 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)
- 1000Base-T: 1,488,000 pps (packets per second)
MAC address table: 2,048 entries
Buffer memory: 256 kBytes
Jumbo frame support: 9 kB
Backplane speed / switch fabric: 10 Gbps
LEDs
Power
Link/Activity
Power
External AC adapter: 5 V, 1 A
Environmental
Dimensions: 140 (w) x 78 (l) x 28 (h) mm
Weight: 0.33 kg
Operating temperature: 0 40°C
Humidity: 10 90% (non-condensing)
Package Contents
5-Port Gigabit Ethernet Switch
Power adapter
User manual
