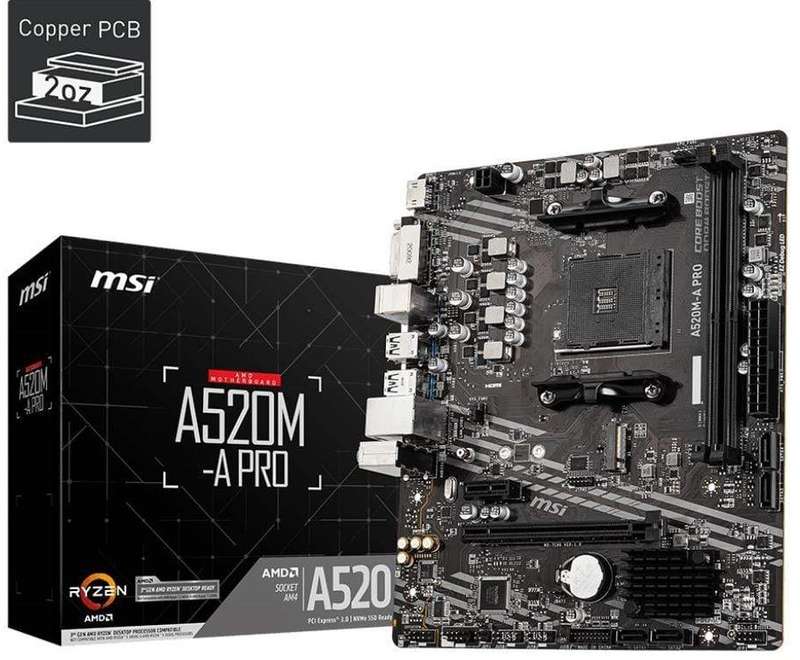

The MSI A520M PRO motherboard is designed to support a wide range of AMD Ryzen processors, including the 5000 and 4000 series, utilizing the AMD Socket AM4 and A520 chipset for reliable performance. It features dual-channel DDR4 memory support of up to 4600MHz (OC), multiple expansion slots, and various display interfaces, including HDMI and DisplayPort, ensuring versatility for any build. With robust connectivity options, including USB 3.2 ports and Realtek Gigabit LAN, this motherboard is ideal for both gaming and professional applications.
Product Overview
MSI PRO Series motherboards are expertly crafted to enhance professional workflows, offering stable functionality and high-quality assembly for optimized performance. With features like Intel LAN for reliable connectivity, extensive memory testing, and superior audio quality, they cater to demanding users who require efficiency and reliability. Ideal for professionals and tech enthusiasts alike, these motherboards provide the tools needed to fine-tune systems for maximum performance.
Features
Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Supports DDR4 Memory, up to 4600(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
Audio Boost: Reward your ears with studio-grade sound quality
Specifications
Product Code: A520M-PRO
Description: MSI A520M-PRO AMD AM4 MATX Gaming Motherboard
Socket: AMD Socket AM4
CPU (Max Support): Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series process
Chipset: AMD A520 Chipset
DDR4 Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
Memory Channel: Dual
DIMM Slots: 2
Max Memory (GB): 64
PCI-E x16: 1
PCI-E GEN: Gen3
PCI-E x1: 2
SATAIII: 4
M.2 Slot: 1
TPM (Header): 1
RAID: 0/1/10
LAN: Realtek RTL8111H Gigabit LAN
USB 3.2 ports (Front): 2(Gen 1, Type A)
USB 3.2 ports (Rear): 4(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 2(Type A)
Serial Ports(Front): 1
Audio ports (Rear): Realtek ALC892/ALC897 Codec
DisplayPort: 1
HDMI: 1
VGA: 1
DirectX: 12
Form Factor: M-ATX
Operating System: Support for Windows 10 & Windows 11
