Specification highlights:

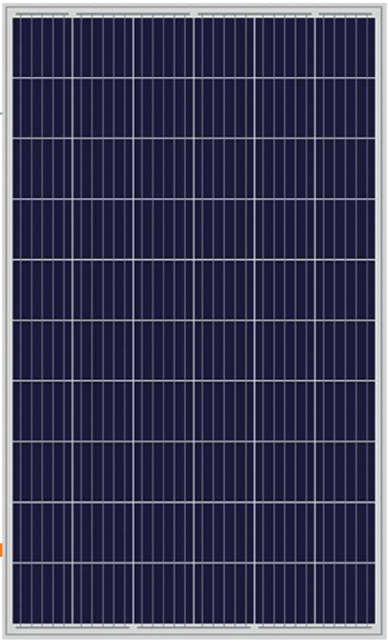

280W Polycrystalline PERC PV panel
5 Busbar design
60 A-grade polycrystalline solar cells
With a 12-year product warranty and a 30-year design life warranty
Certifications include: German (TUV), IEC, and CE
Electrical specifications @ STC:
Module efficiency: 17.2%
Maximum power (Pmax): 280W
Maximum power voltage (Vmp): 31.38V
Maximum power current (Imp): 8.93A
Open circuit voltage (Voc): 39.12V
Short circuit current (Isc): 9.45A
Maximum system voltage: 1000VDC (IEC)
Maximum series fuse rating: 15A
Mechanical specifications:
Cell size: 156 x 156mm
Cell type: A-grade PERC polycrystalline solar cell
Number of cells: 60 (6 x 10)
Weight: 18.2kg
Dimensions: 1640mm x 992mm x 35mm
Max load: 5400 Pascal
Junction box: IP67 rated
Connector: MC4
Cables: Photovoltaic technology cable 4.0 m m2, 900mm
Warranty:
Product warranty: 12 years
Design life warranty: 30 years
Efficiency warranty: 90% in 12 years, 80% in 30 years
