Specification highlights:

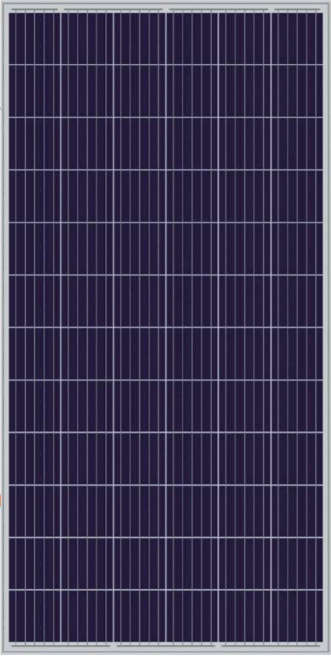

330W Polycrystalline PERC PV panel.
5 Busbar design.
72 A-grade polycrystalline solar cells.
With a 12-year product warranty and a 30-year design life warranty.
Certifications include: German (TUV) certified, IEC, and CE
Electrical specifications @ STC:
Module efficiency: 17%
Maximum power (Pmax): 330W
Maximum power voltage (Vmp): 37.63V
Maximum power current (Imp): 8.77A
Open circuit voltage (Voc): 45.95V
Short circuit current (Isc): 9.12A
Maximum system voltage: 1000VDC(IEC)
Maximum series fuse rating: 15A
Mechanical specifications:
Cell size: 156 x 156mm
Cell type: A-grade PERC polycrystalline solar cell
Number of cells: 72(6 x 12)
Weight: 22.5kg
Dimensions: 1956 x 992 x 40mm
Max load: 5400 Pascal
Junction box: IP67 rated
Connector: MC4
Cables: Photovoltaic technology cable 4.0 m m2, 900mm
Warranty:
Product warranty: 12 years
Design life warranty: 30 years
Efficiency warranty: 90% in 12 years, 80% in 30 years
Free delivery 100km from Cullinan for orders larger than R3,000.00
PDF of specifications
