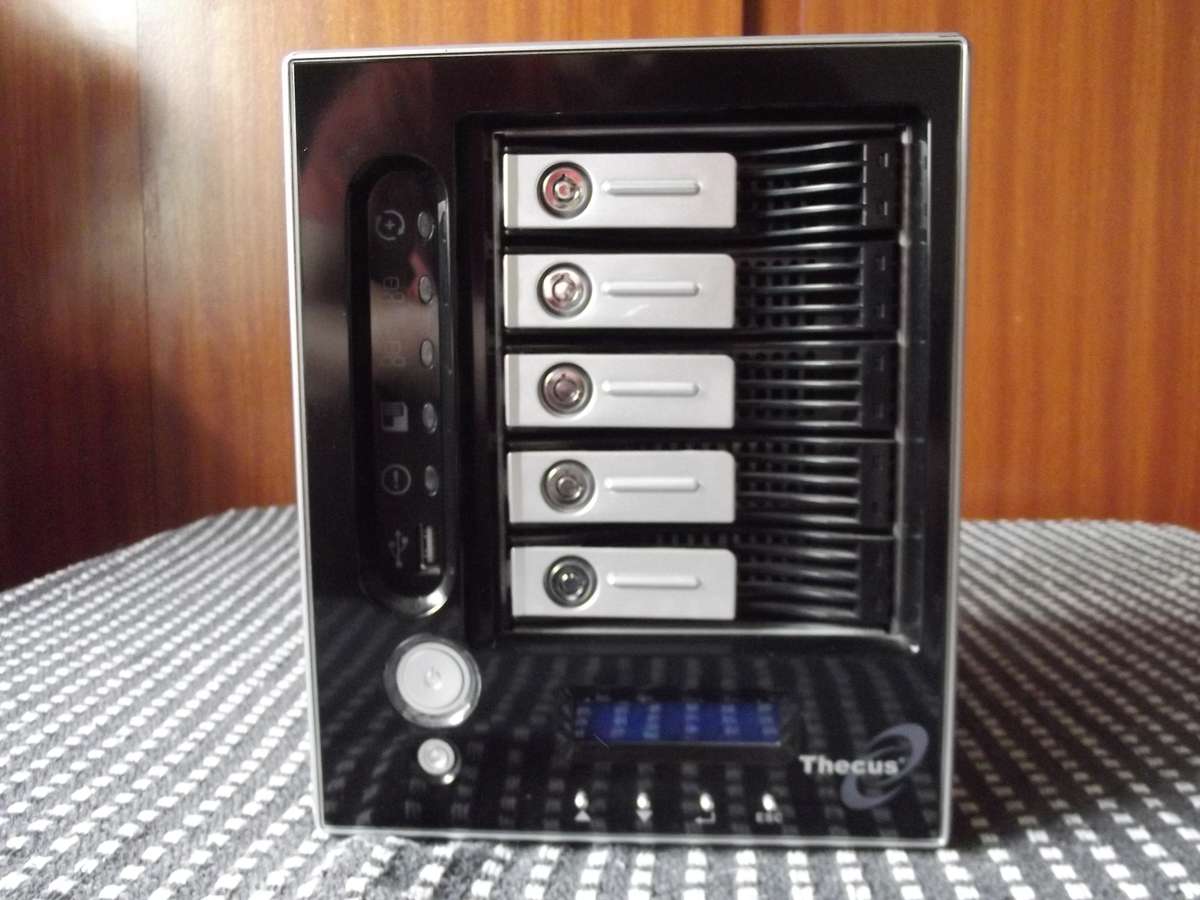

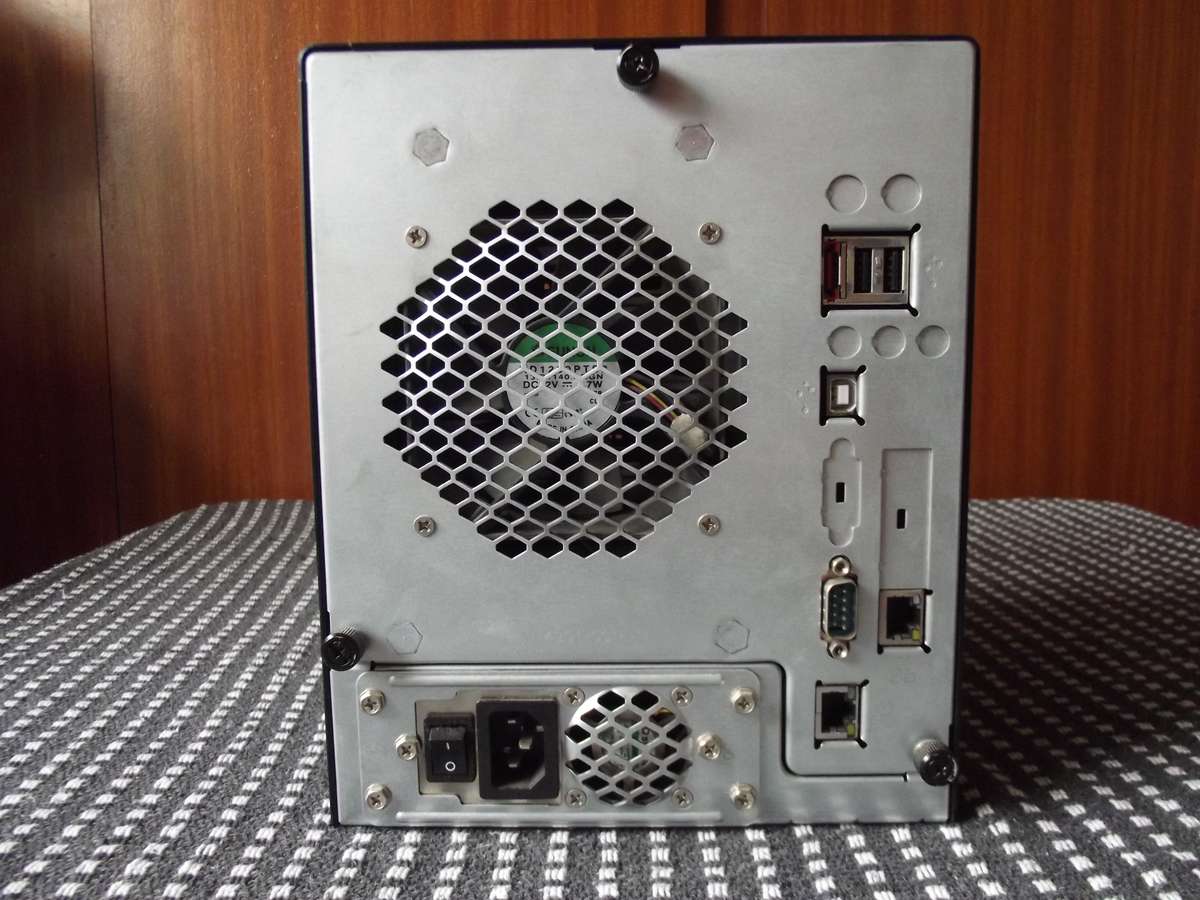

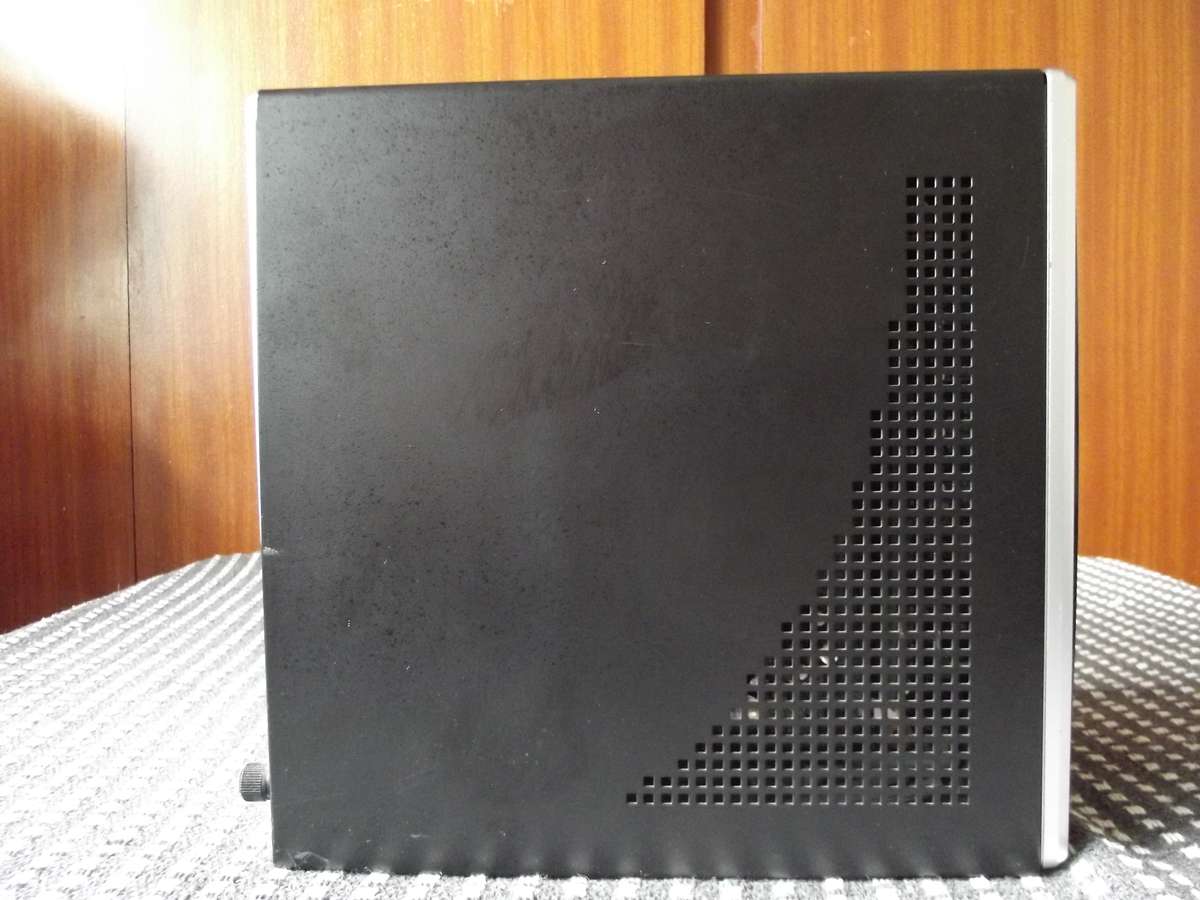

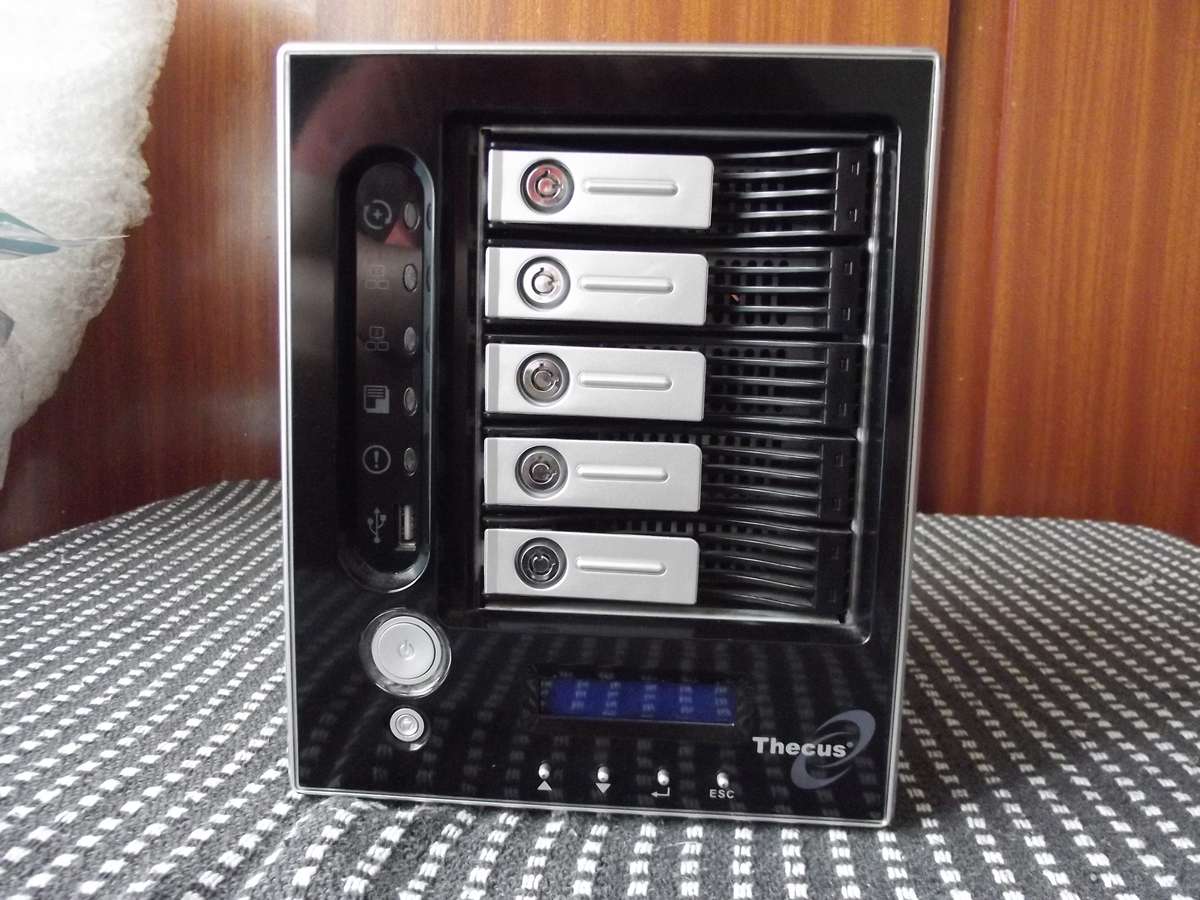

Thecus N5200PRO Network Attached Storage

Model

N5200BPRO

N5200BR PRO

HDDs

5 x 3.5" SATA II HDD, Hot-swappable

eSATA port

1 x eSATA connector for capacity expansion

USB ports

• 3 x USB A type (Host mode)
• 1 x USB B type (Client mode)

Ethernet ports

2 x Gigabit RJ-45 Connector

1 x Gigabit RJ-45 Connector

n/a

4 port Gigabit switch

Link aggregation

802.3ad based Failover, Load balancing

n/a

LCD Control Panel

For basic configurations and status display

Network File Protocols

• Microsoft Networks (CIFS/SMB)
• Apple Filing Protocol (AFP 3)
• Network File System (NFS v3)
• File Transfer Protocol (FTP)
• Hyper Text Transfer Protocol (HTTP)
• Secure Hyper Text Transfer Protocol (HTTPs)

Authentication

• Microsoft NT Domain Controller (PDC)*
• Microsoft Windows Active Directory 2003 Authentication (AD)*

Network Client Type

• Microsoft Windows NT/2000/XP/2003
• Unix/Linux/BSD
• MAC OS X, OS 9, OS 8.6

Network Configuration

• Fixed IP Address
• Dynamic IP Address

Disk Management

• Power Management (Disk idle spin-down)
• Disk Status Monitoring (S.M.A.R.T.)

RAID

• RAID 0, 1, 5, 6, 10, and JBOD
• Supports multiple RAID modes Users can create multiple RAIDs on one system.
• Auto Rebuild
• Hot Swappable
• Hot Spare
• Disk Roaming
• RAID Level Migration
• RAID Expansion
• Disk Capacity Supported :
• 80/120/160/200/250/300/400/500/750/1000 GB

iSCSI Target

Supports Microsoft block level access

Folder Management

• Share Folder Level Permission
• Public Folder

Quota Management

Share Folder Quota Control

Backup

• Thecus Backup Utility
  (Microsoft Windows XP/2000 /MAC OS X)
• Thecus Nsync

System Management

• Web GUI
• Multilingual Support (English, French, German, Italian, Traditional Chinese, Simplified Chinese, Japanese, Korean, Spanish)
• NTP supported
• Wake-On-LAN
• Schedule Power On/Off For better power management

Event Notification

• Email Notification
• Buzzer Notification
• LCD

• Supports uPnP AV streaming protocol
  Works with DLNA-certified players

Supported USB Devices

• USB Printer
• External HDD/Flash disk

Setup Utility

• Windows 2000 / XP / 2003
• MAC OS X

Safety and Environment

CE, FCC, BSMI, C-Tick, RoHS Compliant

Dimension

230 x 190 x 230 mm (H x W x D)

Physical

Lockable Disk Tray

Operating Environment

• 0 - 40 < /st1:chmetcnv>
• 20 85﹪Relative Humidity (non-condensing)

Power Supply

• Server-rated AC Power Supply
• 100/220VAC, 50/60 Hz, Auto detect
