Suitable for all types of commercial retail POS systems
Light in weight and smart in shape
High-quality printing and low cost
Low noise and high-speed printing
Support cash drawer driver
Easy for paper installation, Easy maintenance, and excellent structure
Low power consumption and low operating costs ( No Ribbons or Ink cartridges )
Features
Basic Info and Key Features:

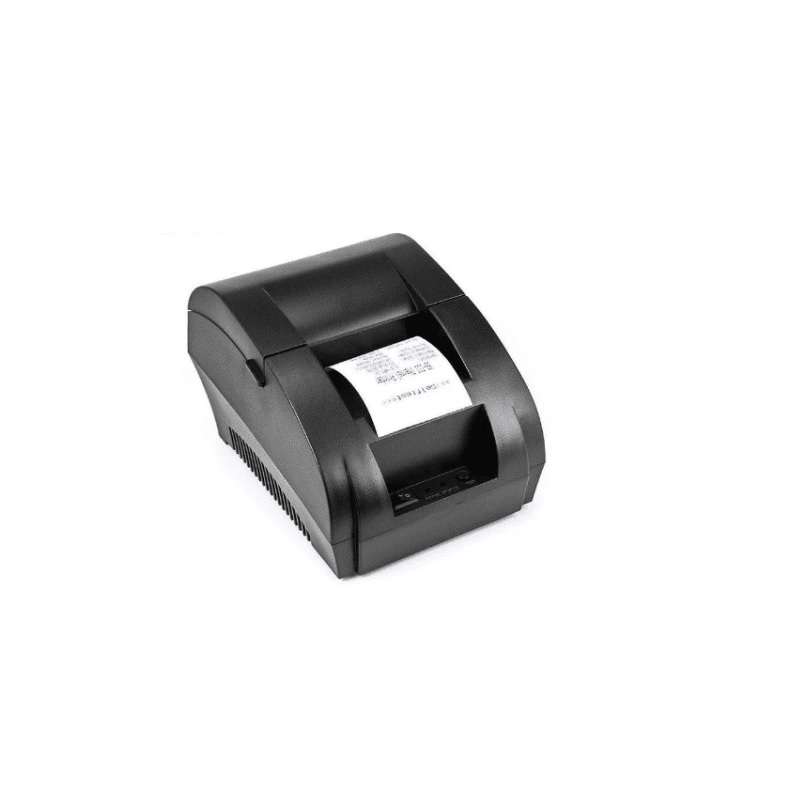

Item Name: Thermal Receipt Printer
Item Number: POS-5890C
Technical Specifications:
Print Method: Thermal Line Printing
Print Font Size: 384dot/Line; ANK Character
Font A: 12*24 dots,1.5(W)*3.0(H)mm
Chinese simplified/traditional:24*24 dots,3.0(W)*3.0(H)mm
Printer Character: GB one/two Chinese character 24*24 dots, Support Taiwan, Hong kong traditional
Extend Character:
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/
Greek/Hebrew/East Europe/Iran/WPC1252/OEM866/OEM852/
OEM858/IranII/Latvian/ Arabic/PT151,1251/OEM747/
WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Tha
Description
Printer Parameters:
Support NV LOGO Print
Print Speed: 90mm/sec
Interface: USB Port
Print Width: 57.50.5mm
Roll Diameter: 50 mm
Print Thickness: 0.06-0.08mm
Unit Weight: 800 g
Dimension: 175*130*110mm (L*W*H)
Power Adapter: DC 12V/3A
Cash Drawer Control: DC 12V/1A
Reliability Print: 100km
Temperature: 0-45degree
Contrast Humidity: 10-80%
Drivers: Win 9X /Win 2000 /Win 2003/Win XP/Win Vista/Win 7 /Win8/Linux
Compatible With EPSON, SAMSUNG System
Print Command: Compatible With Command ESC/PO
Printer Appearance And Operational Schematic
Paper Exit: print paper exit
Feed Button: Printer self-inspection, Model change, Paper feed
The State Of Light: Red light flashing means no paper; Red light always lit means normal.
Power Light: Blue light always lit means normal; Blue light off means does not connect to power or abnormal.
Power Control Button: Control the power switch
Printer Interface Schematic
Power Interface: Connect 110V~240V
USB Interface: Connect Tablet/PC via USB-B data cable
Cash Drawer Interface: Connect cash drawer via data cable
