Product details

Condition
New
Location
South Africa
Product code
HEA300
Bob Shop ID
392960255

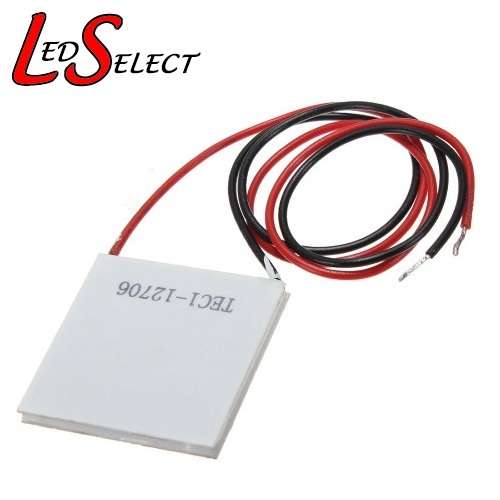

Thermoelectric Cooler Peltier Plate 12706:

Category:


Specifications:

Chip Type: TEC1-12706
External Dimensions: 40 x 40 x 3.75mm
Internal Resistance: 2.1 - 2.4Ω (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)
The Maximum Temperature Difference: Tmax (Qc = 0) above 59 'C.
Working Current: Imax = 4.3-4.6A (rated at 12V)
Rated Voltage: 12V (Vmax: 15V starting current 5.8A)
Cooling Power: Qcmax 55W
Working Environment: Temperature range -55 'C - 83'C (high ambient temperature drop directly affect the cooling efficiency)



Description:

They consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts. Each device is fully inspected and tested. Fitted with 6-inch insulated leads.



Uses:

Within seconds one side becomes ice cold the other becomes boiling hot. Used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.


This device must be used in conjunction with a heatsink to avoid overheating!

* If required, the insulation pad can be purchased separately
