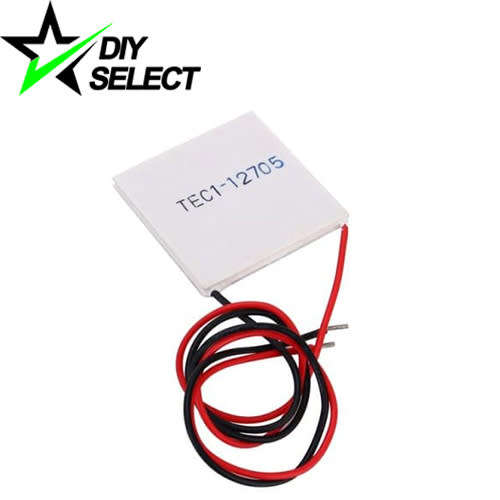

Thermoelectric Cooler Peltier Plate 12V TEC1-12705 **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Thermoelectric Cooler Peltier Plate:
Specifications:
Chip Type: TEC1-12705
Internal Resistance: 2.5 - 2.8. (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)
The Maximum Temperature Difference: Tmax (Qc = 0) above 60'C.
Working Current: 3.5A (rated at 12V)
Rated Voltage: 12V (Vmax: 15V)
Cooling Power: Qcmax 50-60W
Working Environment: Temperature range -55 'C - 83'C (high ambient temperature drop directly affect the cooling efficiency)
Size: 40 x 40 x 3.3mm
Description:
They consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts. Each device is fully inspected and tested. Fitted with 6-inch insulated leads.
Uses:
Within seconds one side becomes ice cold the other becomes boiling hot. Used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.
* This device must be used in conjunction with a heatsink to avoid overheating!
