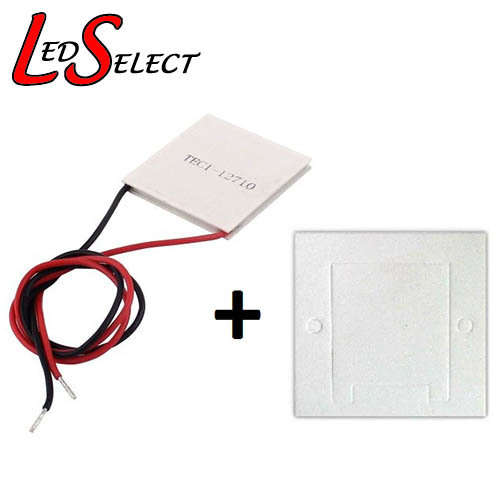

Thermoelectric Cooler Peltier Plate TEC1-12710 12V 10A 40mm with Insulation Pad **LOCAL STOCK**

Thermoelectric Cooler Peltier Plate 12710:

Category: 1900312645 - Heatsink + Thermal

* Please Note: Peltier plate has minor chip on one corner (Not noticeable) - price has been reduced

Specifications:

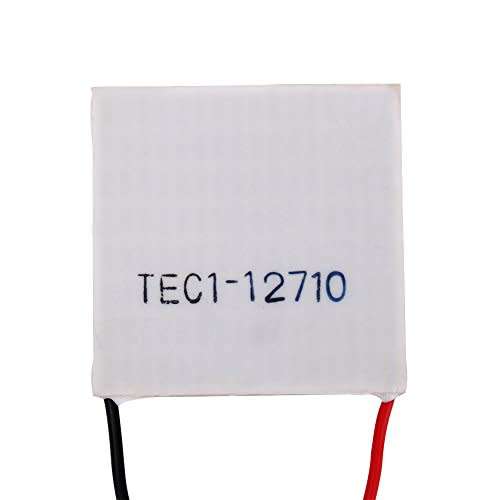

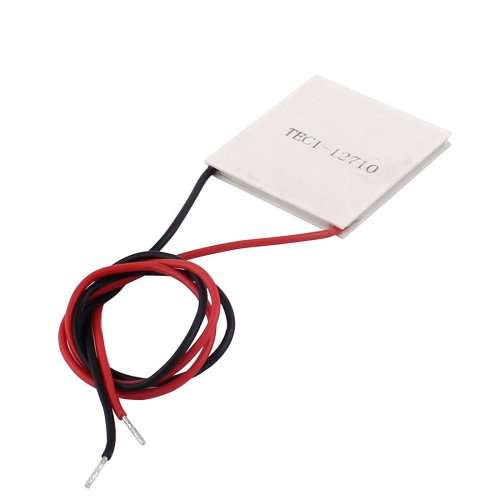

Chip Type: TEC1-12710
External Dimensions: 40 x 40 x 3.4mm
Internal Resistance: 1.2 - 1.Ω (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)
The Maximum Temperature Difference: Tmax (Qc = 0) above 60'C.
Working Current: Imax = 10A
Rated Voltage: 12V (Vmax: 15V start)
Cooling Power: Qcmax 92W
Working Environment: Temperature range -55 'C - 83'C (high ambient temperature drop directly affect the cooling efficiency)

Description:

They consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts. Each device is fully inspected and tested. Fitted with 6-inch insulated leads.

Uses:

Within seconds one side becomes ice cold the other becomes boiling hot. Used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.

* This device must be used in conjunction with a heatsink to avoid overheating!

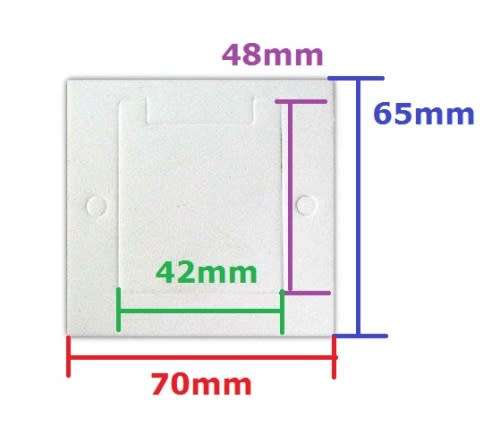

* If required, the insulation pad can be purchased separately
