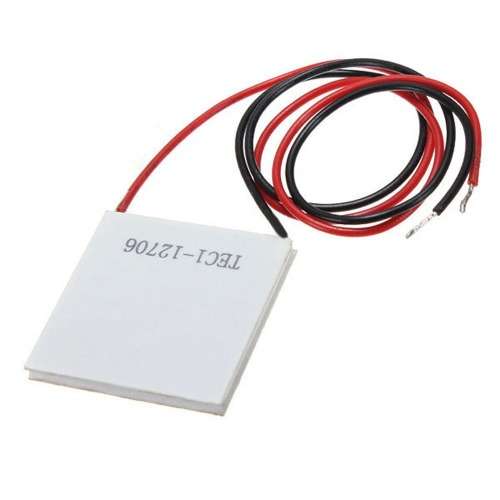

Thermoelectric Cooler Peltier Plate:
Turn ice cold or heat to boiling in minutes, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler. These devices must be used in conjunction with a heat sink to avoid overheating!
Specification:
Chip Type: TEC1-12706
External dimensions: 40 * 40 * 3.75mm
Internal resistance: 2.1 ~ 2.4Ω (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)
The maximum temperature difference: Tmax (Qc = 0) above 59 'C.
Working current: Imax = 4.3-4.6A (rated at 12V)
Rated voltage: 12V (Vmax: 15V starting current 5.8A)
Cooling power: Qcmax 55W
Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency)
Description :
Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own
custom car drink warmer/cooler.
Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts
These devices must be used in conjunction with a heat sink to avoid damage
Each device is full inspected and tested
Fitted with 6-inch insulated leads
