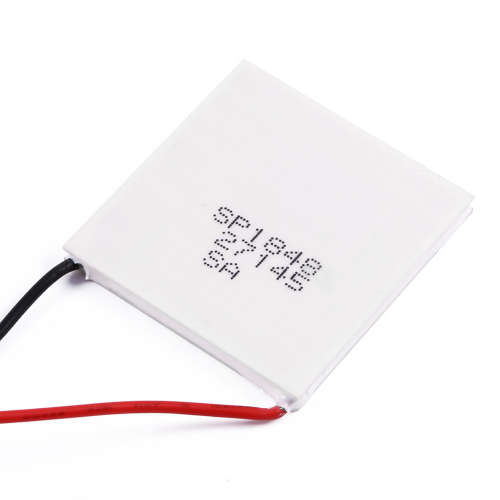

Thermoelectric Power Generator SP1848-27145 150 Degree



The side with writing is the radiating surface (cold side)
The other side with no writing is the Endothermic surface (hot side)

  • Color : White
  • Lead Length : about 30cm
  • Size : 40mm x 40mm x 3.4mm
  • 20 degree temperature difference : open-circuit voltage 0.97V, generated current: 225mA
  • 40 degree temperature difference : open circuit voltage 1.8V, generated current: 368mA
  • 60 degree temperature difference : open circuit voltage 2.4V, generated current: 469mA
  • 80 degree temperature difference : the open circuit voltage 3.6V, generated current: 558mA
  • 100 degree temperature difference : open circuit voltage 4.8V, generated current: 669mA
  • The above values are for reference only, the wiring in actual use, and the step-up board, there will be loss of current.

www.heatsink-guide.com/peltier.htm

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
