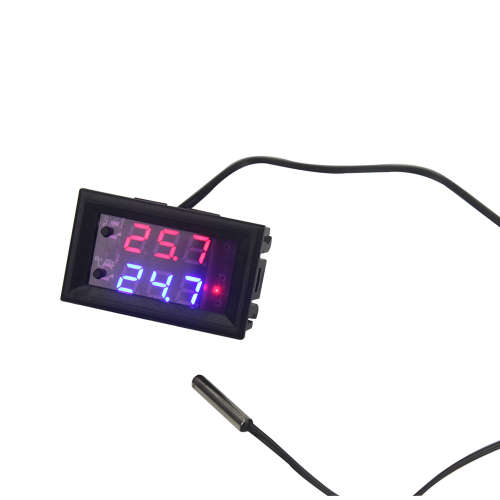

Thermostat Temperature Controller -50 to +110deg DC 12V **IN STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

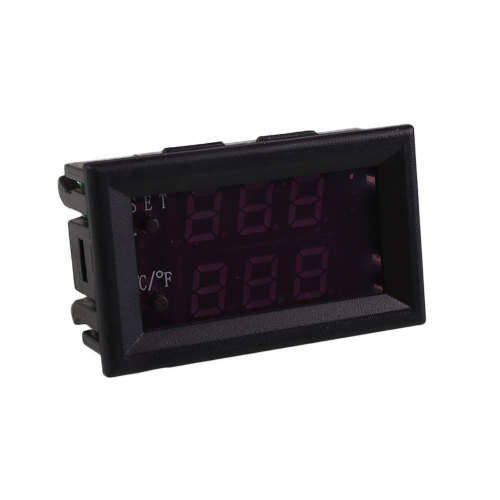

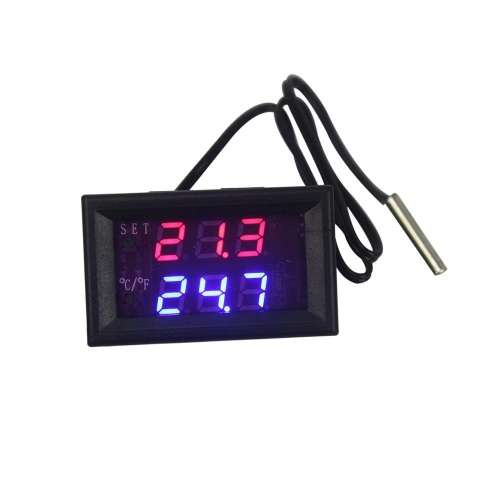

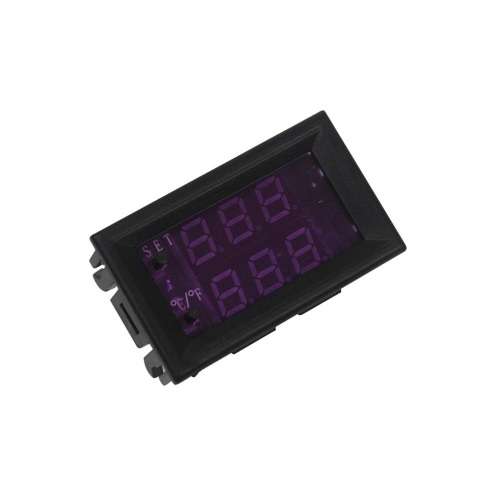

Thermostat Temperature Controller DC 9-15V (New Compact Type!):
Specifications:
Control Range: -50 ~ 110
Input Power: DC 12V
Resolution: -9.9-99.9 0.1 , other temperature ranges 1
Measuring Inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Measurement Accuracy: 0.1
Output Range: 1 way 10A relay
Control Accuracy: 0.1
Environmental Requirements: -10-60 , Humidity 20% -85%
Hysteresis Accuracy: 0.1
Size: 48 * 29 * 33mm
Refresh Rate: 0.5S
Power Consumption: Static Current: <= 35mA, Attract current: <= 65mA
Temperature Protection: 0-110
Display Type: 0.28 " Three digital display tube

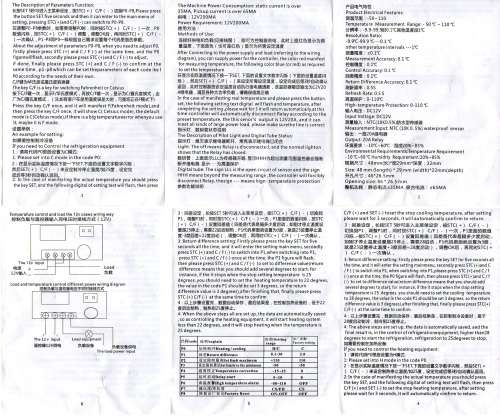

How to use:
Connect the power supply and the load, you can supply to the controller,Is displayed as a measured temperature,Press the SET button, the display flashes the temperature,Press + - to set the desired temperature,After setting press SET to confirm return,The controller automatically performs the relay by setting off!
Lights, LED status descriptions:Indicator: Off The relay is switched off, Always indicate the relay is closed. LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Parameter Function: Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press SET or 10 seconds of no key activity confirmed their return to the controller
Code Code Description Setting range Factory setting
P0 Cooling /Heating C/H C
P1 Hysteresis setting 0.5-15 2
P2 Highest setting upper limit 110 110
P3 Lowest setting upper limit -50 -50
P4 Temperature correction -7-7 0
P5 Delay start time 0-10 Minutes 0
P6 High temperature alarm 0-110 OFF
Off state, long press + - boot to restore the factory settings
