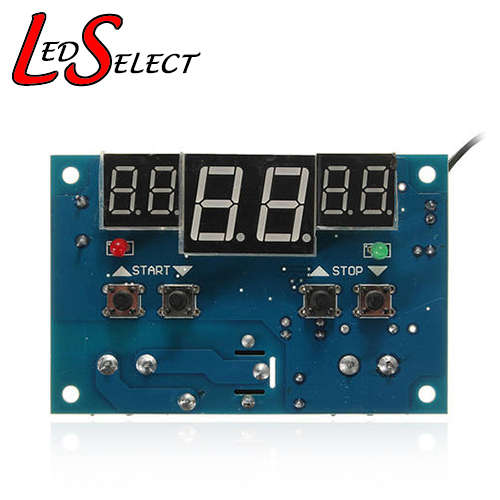

Thermostat Temperature Controller DC 9-15V:
* Includes Probe
Specification:
Model: W1401
Temperature range: -9 to 99 degrees.
Accuracy: 1 degree.
Control accuracy: 1 degree.
Setting Range: -9-99 degrees.
Refresh rate: 0.5S.
Input Power: DC9V-15V.
Output: relay output, capacity 220V AC 10A / 30V DC 10A.
Environmental requirements: -10-60 degrees.
Humidity: 20% -85%.
Temperature sensor: NTC (3950-10k 1%).
Size: 7.8cm x 5.1cm x 3cm .
Features:
Operating Instructions:
1.High temperature start:
Set the starting temperature value> stop temperature value.
When the detected temperature ≥ start temperature, the relay is closed, refrigeration equipment work.
When the detected temperature ≤ stop temperature, the relay off, refrigeration equipment stops working.
For example: Set the starting temperature is 30 degrees, stop temperature is 25 degrees.
When the detected temperature ≥ 30 degrees, the relay is closed, the start Indicator (red) lights.
When the detected temperature value ≤ 25 degrees, the relay off, stop Indicator (green) light.
2.Cold start: start temperature set value.
When the detected temperature ≤ start temperature relay is closed, the heating device operates.
When the detected temperature ≥ stop temperature, the relay off, the heating device is stopped.
For example: Set the starting temperature is 25 degrees, stop temperature is 30 degrees.
When the detected temperature value ≤ 25 degrees, the relay is closed, the start Indicator (red) lights.
When the detected temperature ≥ 30 degrees, the relay off, stop Indicator (green) light
3.Set to start when the temperature value = stop temperature value, the relay off.
