THGS-Liquid Water Level Stainless Steel Right Angle Floating Switch for Aquarium (VOLTAGE: 100V)
Sold

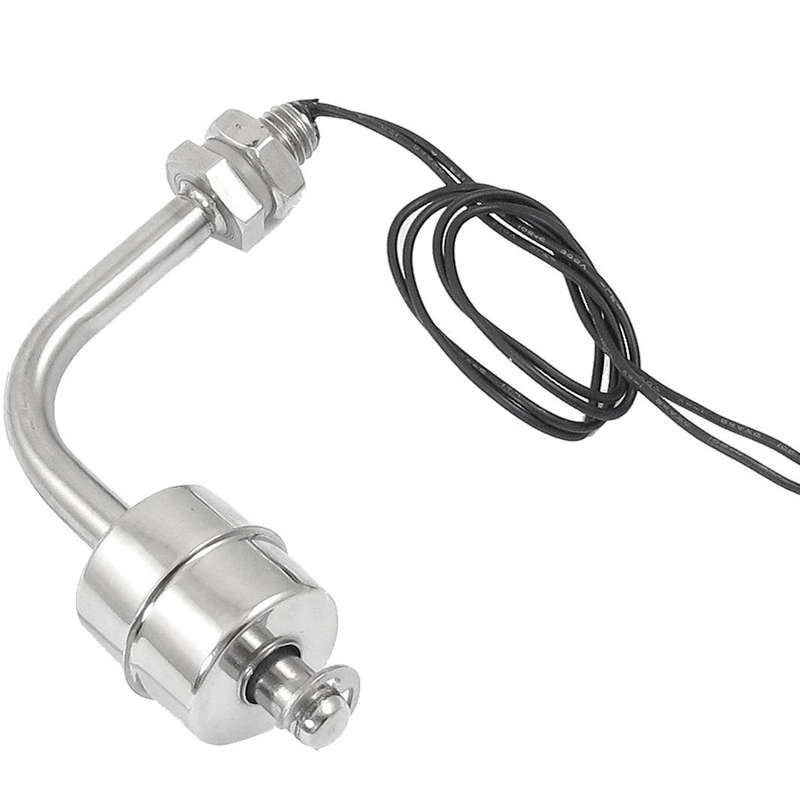

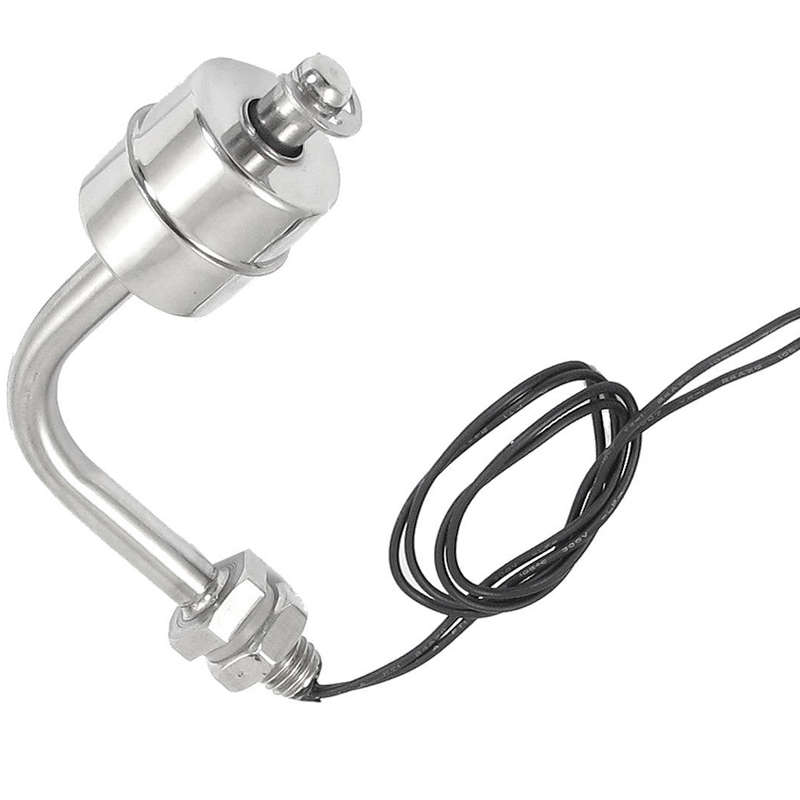

THGS-Liquid Water Level Stainless Steel Right Angle Floating Switch for Aquarium (VOLTAGE: 100V)

1 was available / new
Indicative market price: R378.24
R290.93
23% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
1223854[LICS]|POA2662922
Bob Shop ID
487568769

SELECTED OPTION:
VOLTAGE: 100V

CLICK HERE for more options in this item.

Features:

A float switch is a device used to sense the level of liquid within a tank.
The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.

Specification:

Product Name : Water Level Sensor
Contacts : NO+NC
Max Contact Rating : 10W
Max Switching Voltage : 100V DC / 220V DC
Max Switching Current : 0.5A / 0.7A
Max Breakdown Voltage : 220V DC / 400V DC
Max Carry Current : 1.0A / 1.5A
Max Contact Resistance : 100mΩ
Temperature Rating : -30 - +125℃
Float Ball Size(Approx) : 25 x 27mm / 1" x 1.1"(L*D)
Thread Dia(Approx) : 9.8mm / 0.386"
Hex Nut Size(Approx) : 19mm / 0.75"
Bottom Clip Dia(Approx) : 15mm / 0.6"
Body Total Length(Approx) : 81mm / 3.2"
Body Total Width(Approx) : 70mm / 2.8"
Cable Length : 31cm / 12.2";
Color : Silver Tone
Net Weight : 47g

Note: Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

Package Included:

1 x Water Level Sensor

Detail Pictures:
