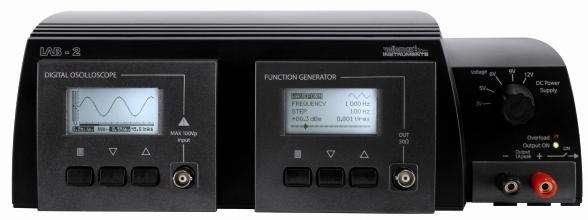

THREE-IN-ONE LAB UNIT (Scope, Function generator and Power supply)

Another 3-in-1 unit from Velleman!
This unique unit includes a digital oscilloscope, a digital function generator and a simple but easy-to-use power supply. The 3 units are electrically separated for ease of measurement.
Measuring and testing just became easier and more affordable than ever!


Specifications

• oscilloscope 40MS/s:
  • bandwidth: up to 10 MHz (-3dB*)
  • input range: 1mV to 20V/division in 14 steps
  • input coupling: DC, AC and GND
  • real-time sample rate up to 40MS/s
  • AD resolution: 8 bits
  • time base: 250ns to 1h per division
  • auto set-up function
  • probe x10 readout option
  • readouts: DC, AC+DC,True RMS, dBm, Vpp, Min-Max. (±2.5%)
  • audio power measurement from 2 to 32 ohms
  • max. 100Vp AC+DC (input 600Vp using x10 probe)
  • standard 1M ohms 60MHz x1 - x10 probe (incl.)
  • white LED backlight
• 1MHz function generator:
  • DDS type generator (Direct Digital Synthesis)
  • DAC resolution: 10 bits
  • frequency range: from 1Hz to 1.000.000Hz (± 0.01%)
  • frequency steps: 1Hz, 10Hz, 100Hz, 1kHz and 10kHz
  • waveforms: sine, square and triangle
  • sweep function with bi-direction option
  • output voltage: max. 15Vpp
  • real output level measurement: dBm / Vrms or Vpp readout (±3%)
  • typical sine wave distortion (THD): < 0.1% @ 0dB / 600 ohms
  • square wave rise/fall time: typ. 0.2µs
  • output impedance: 50 ohms
  • multi-language menu (Eng / Fre / Dut / Ge / Es )
  • white LED backlight
• power supply:
  • voltage output (fixed voltages): 3V, 5V, 6V, 9V, 12V ( ±5% )
  • peak output current: 1A
  • LED Output overload indicator
  • LED Output ON indicator
  • output ON/OFF switch
• in the box:
  • LAB-2 unit
  • oscilloscope probe
  • RCA adaptor
  • manual
  • AC cord
• *: -4dB at: 1mV, 2mV, 5mV, 0.1V and 2mV
