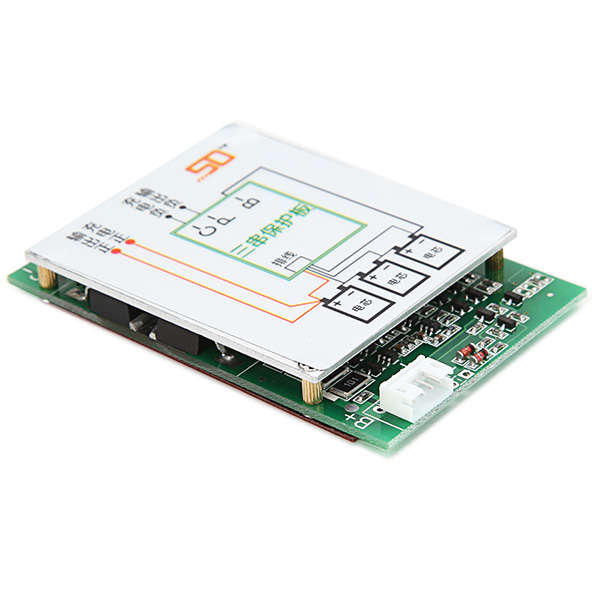

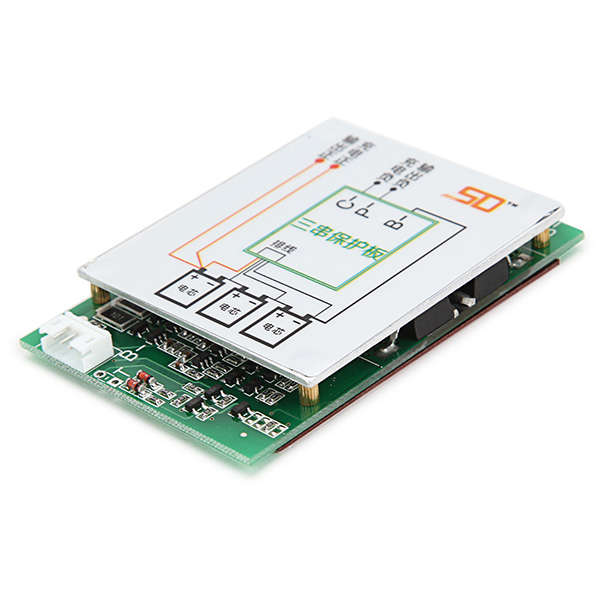

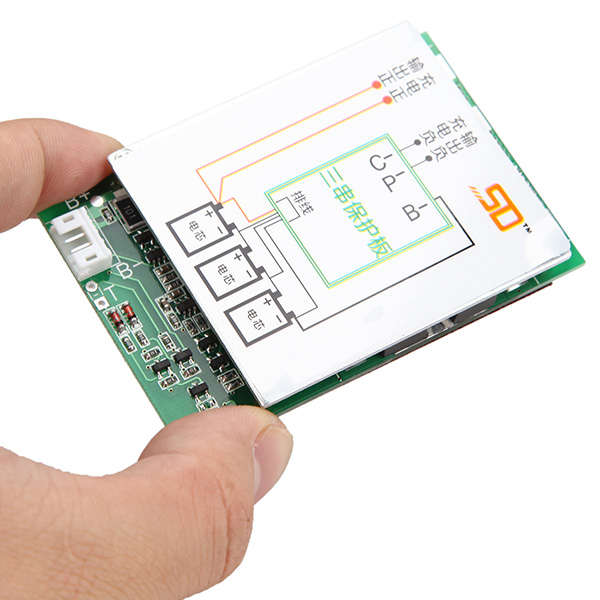

Three Serial 12V Inverter 150A High Current Lithium Battery Protection Board With Balance Charging Function
Descripiton:

With balance charging function

It has 10 MOS, powerful cooling aluminum, more current to reach 160A

Suitable inverters, xenon lamp, lithium battery

Equalizing charge

Short circuit protection

Overcharge protection

Over-discharge protection

Size: 78 x 52 x 10 MM

Features:

Continuous Discharge Current: 100A

Instantaneous discharge current: 160A

Charging voltage: 12.6V

The maximum charging current: 10A

Overcharge detection current: 4.28 ± 0.025V

Overcharge protection delay: 1S

Overcharge release voltage: 4.08 ± 0.05V

Cell-balance detection voltage: 4.2V

Cell-balance release voltage: 4.2V

Current power balance: 42 ± 5 mA

Overdischarge detection voltage: 2.3 ± 0.5 V

Over discharge detection delay: 0.5S

Overdischarge release voltage: 2.8 ± 0.1 V

Overcurrent detection voltage: 160mV

Overcurrent detection delay: 9mS

Overcurrent protection current: 200 ± 10A

Overcurrent protection release condition: Disconnecting the load

Short circuit protection conditions: external load short circuit

Short detection time delay: 250uS

Short circuit protection release condition: disconnect the load

Temperature Protection: None

The main circuit is turned resistance: ≤5 mΩ

Operating Current: ≤30uA

Sleep current (battery discharge): ≤10 uA

Temperature range: -30 / 80 ¿¿¿

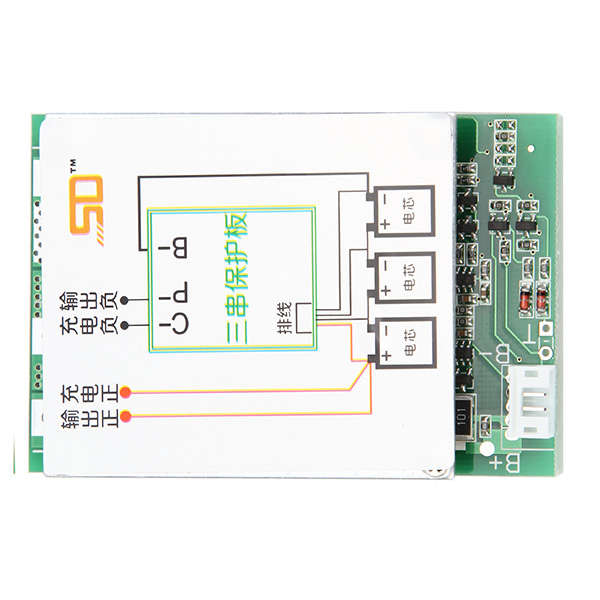

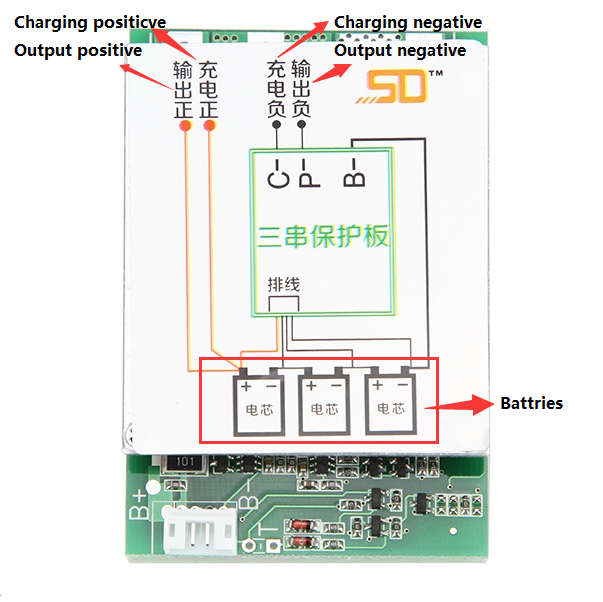

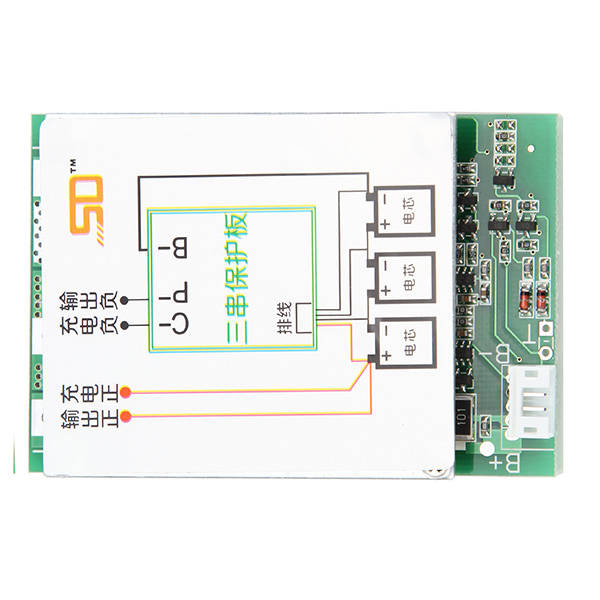

Split-mouth wiring method:

Make sure the three voltage batteries probably balance

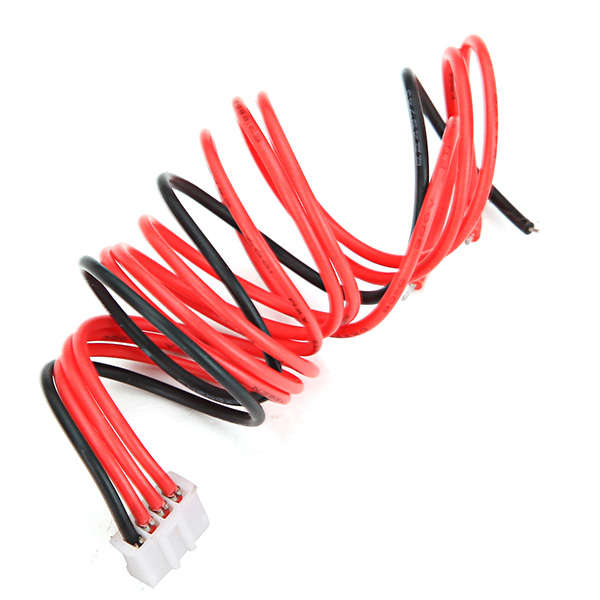

The voltage sampling cable soldering the battery pack Sequentially

Common positive point of the battery pack, Protection board C-, P-, B-, Front and rear soldering can qualify

Test voltage whether is normal, Charging board whether is normal

Assembly and soldering process, batteries and pay attention not to short circuit protection board

When the tin, Batteries and protection board solder pads Contact time with the soldering iron can not be too long

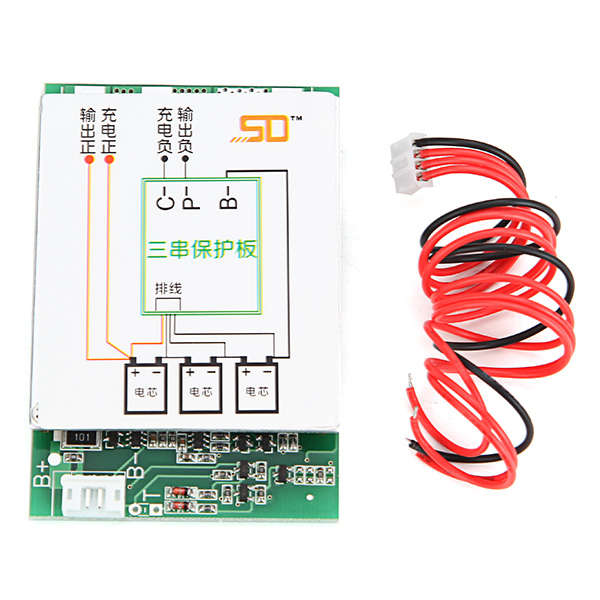

Package included:
1 x Three Serial 12V Inverter 150A High Current Lithium Battery Protection Board
