THT2 I: Interior Thermometer and Hygrometer

Sensor for temperature and humidity with dew point calculation. Communication via RS485 line.

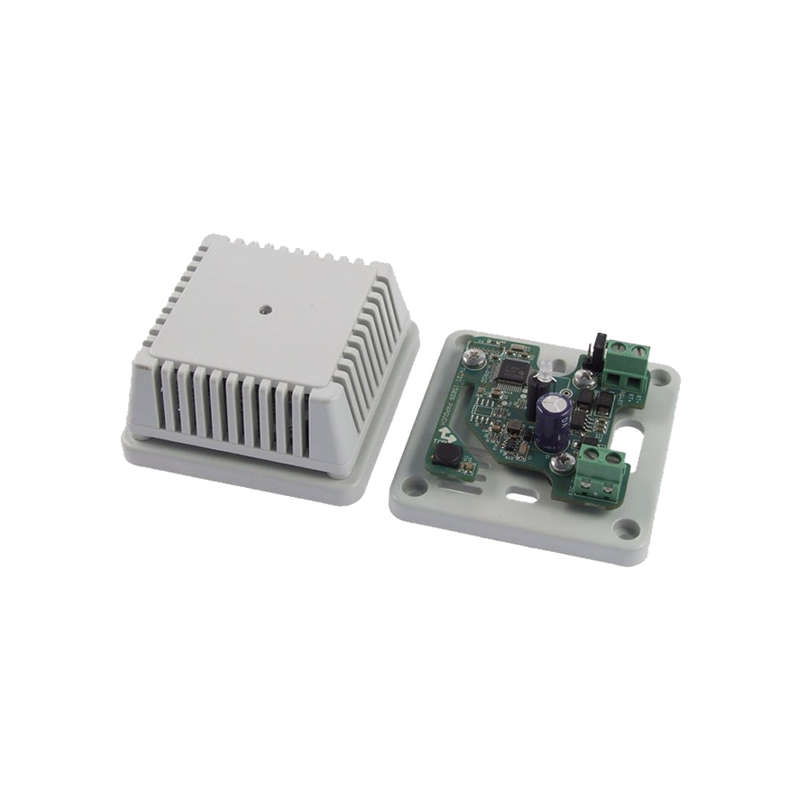

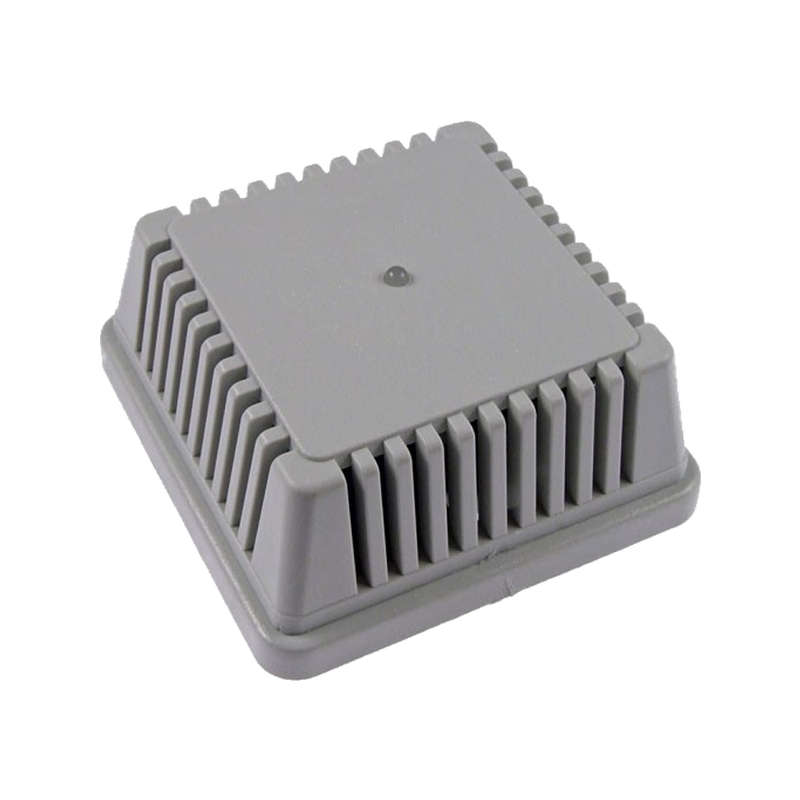

Plastic enclosure with vent holes for interiors. To be mounted on wall or ceiling.

THT2I is an intelligent digital sensor for temperature and/or humidity measurement. Humidity is measured in percent, temperature in degrees Celsius or Fahrenheit, dew point is calculated in degrees celsius as well. Ultra low energy consumption design allows you to create a network of sensors (up to 31 un single line) up to 1.2 km.

Features

• Measures relative humidity in range 0 % to 100 %
• Measures temperature in range -40 °C to +125 °C (however due to the PVC enclosure the maximum ambient temperature is 70 °C)
• Calculates dew point

• Calulates temperatures in several units (°C, °F, K)
• Extreme values memory  THT2I saves maximum and minimum measured-out values of each quantity.
• RS485 communication
• Spinel and ModBus RTU protocols are supported
• Ultra low power consumption design
• Unstabilised power compatible
• PC software: Wix
• Connection to PC: Any RS485 converter.
  Tip: There is also sensor like THT2I that connects directly to Ethernet  TH2E.

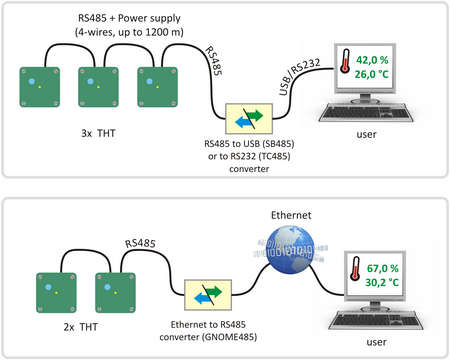

  Example of the THT2 topology direct and over Ethernet

How do I measure temperature, humidity and dew point?

Windows software:
Our universal software Wix can work with THT2I, it can display, save an dmonitor measured-out values.

Other system integration:
Current temperature, humidity and dew point are easily readable via RS485 line. THT2I can communicate via Spinel or ModBus RTU protocols. That is to cover common requirements for higher systems integration (PCs and PLCs). If you need to integrate THT2I to your specific system.
