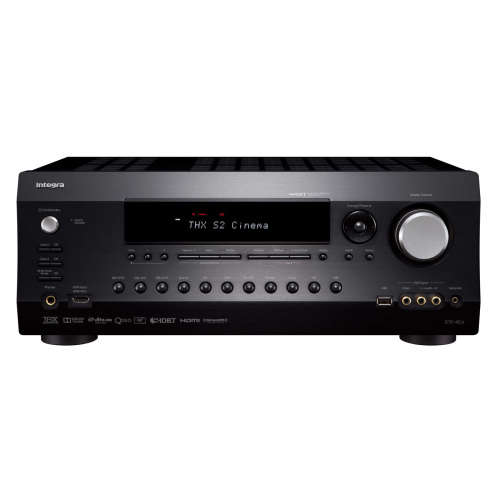

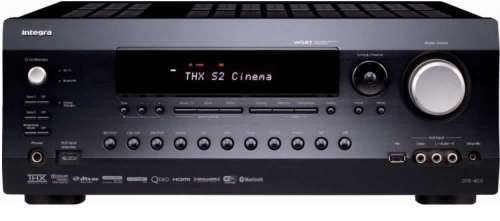

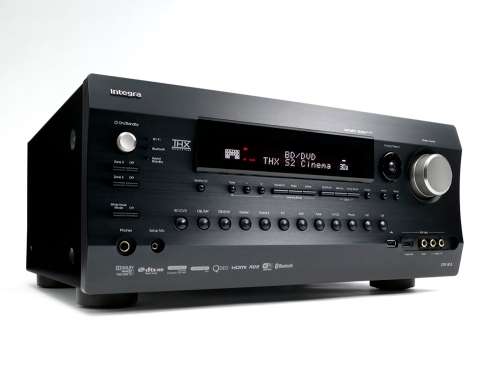

THX - Integra dtr 40.5 High End 7.2 THX RECIEVER (1 HDMI OUTPUT FAULTY)

NB- 1 HDMI OUTPUT FAULTY

DTR-40.5

Amplifier Section

• Power Output (8 Ω, 20 Hz-20 kHz, 0.08%THD, FTC)
• 110wpc

Input Sensitivity and Impedance

• 200 mV/47 kΩ(LINE)
• 2.5 mV/47 kΩ(Phono MM)

Rated RCA Output Level and Impedance: 200 mV/470 Ω(Pre Out)

Maximum RCA Output Level and Impedance: 4.6 V/470 Ω(Pre Out)

Signal to Noise Ratio

• 106 dB (LINE, IHF-A)
• 80 dB (PHONO MM, IHF-A)

Speaker Impedance: 4 Ω–16 Ω

Power Consumption: 6.9 A

No-Sound Power Consumption: 80 W

Stand-by Power Consumption: 0.1 W

Dimensions (W X H X D): 17 1/8″ x 6 7/8″ x 12 7/8"

Weight: 25.1 lbs. (11.4 kg)

DTR-50.5

Amplifier Section

• Power Output (8 Ω, 20 Hz-20 kHz, 0.08%THD, FTC)
• 130wpc

Input Sensitivity and Impedance

• 200 mV/47 kΩ(LINE)
• 2.5 mV/47 kΩ(Phono MM)

Rated RCA Output Level and Impedance: 200 mV/470 Ω(Pre Out)

Maximum RCA Output Level and Impedance: 4.6 V/470 Ω(Pre Out)

Signal to Noise Ratio

• 106 dB (LINE, IHF-A)
• 80 dB (PHONO MM, IHF-A)

Power Consumption: 8.1 A

No-Sound Power Consumption: 85 W

Stand-by Power Consumption: 0.1 W

Dimensions (W X H X D): 17 1/8″ x 7 13/16″ x 15 5/6″

Weight: 33.1 lbs. (15.5 kg)
