`b7Up to 8-ch IP camera accesses
`b7Incoming/Outgoing bandwidth: 60Mbps/40Mbps
`b7S+265, H.265, S+265, H.264 video formats
`b7Max. decoding capability: 6MP(30fps)`d71 or 1080P(30fps)`d74
`b74-ch synchronous playback
`b7Up to 6 TB capacity for each HDD
`b7Simultaneous HDMI and VGA outputs
`b7HDMI output at up to 1080P resolution
`b71`d7RJ-45, 10/100 Mbps self-adaptive Ethernet port
`b7PoE interface, 8`d7RJ45, 10/100 Mbps self-adaptive Ethernet port
`b7S+ 265 compression effectively reduces the storage space by up to 75%
`b7Support cloud upgrade
Video and Audio
Access Channel
8
Incoming Bandwidth
60Mbps
Outgoing Bandwidth
40Mbps
Resolution
6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability
6MP(30fps)`d71, 5MP(30fps)`d71, 4MP(30fps)`d72, 3MP(30fps)`d72, 1080P(30fps)`d74, 720P(30fps)`d78, 4CIF(30fps)`d78
Playback Decoding Capability
6MP(30fps)`d71, 5MP(30fps)`d71, 4MP(30fps)`d71, 3MP(30fps)`d72, 1080P(30fps)`d73, 720P(30fps)`d74
Third-party Camera Access
ONVIF; RTSP
HDMI Output
HDMI: 1024`d7768(60Hz), (720P )1280`d7720(50Hz/60Hz), 1280`d7800(60Hz), 1440`d7900(60Hz), (1080P)1920`d71080(50Hz/60Hz)
VGA Output
VGA: 1024`d7768(60Hz), (720P )1280`d7720(50Hz/60Hz), 1280`d7800(60Hz), 1440`d7900(60Hz), (1080P)1920`d71080(50Hz/60Hz)
Multi-screen Display
Simultaneous Output:
VGA: 1/2/3/4/5/6/7/8/9
HDMI: 1/2/3/4/5/6/7/8/9
Compression
Video
S+265; H.265; S+264; H.264
Audio
G711A; G711U; ADPCM_DIV4
Stream Type
Video; Video & Audio
Network
Network Protocol
ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP
Mobile Phone Access
Android; iOS; P2P
System Compatibility
CGI; SDK
Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Record Playback
Multi-channel Playback
4
Record Mode
Alarm Recording; Schedule Recording
Storage Method
Local HDD
Backup
USB storage device
Playback Function
Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital Zoom
Alarm
General Alarm
Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm
Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure
Intelligent Analytics
AI by Camera
Smart Motion
Storage
HDD Capacity
Up to 6 TB capacity for each HDD

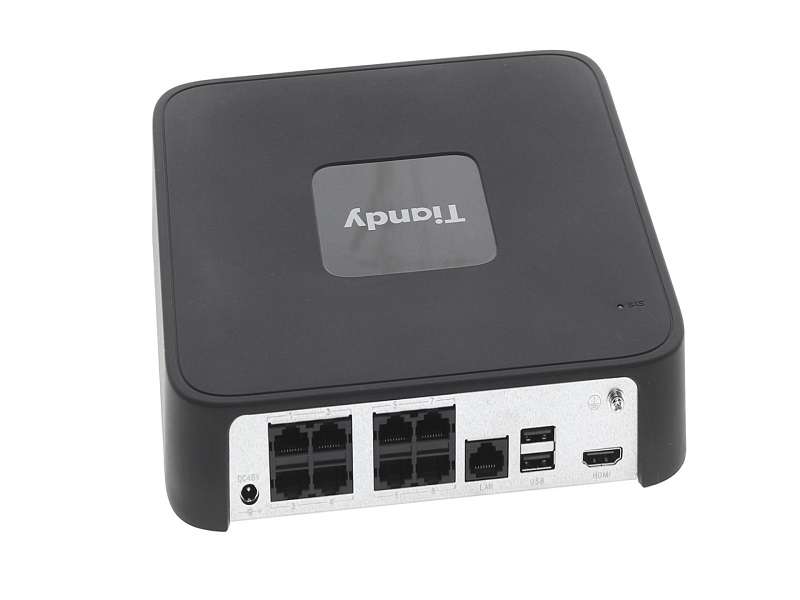

External Port
USB
2`d7USB2.0
HDMI
1`d7HDMI
VGA
1`d7VGA
Network Interface
1`d7RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA
1`d7SATA interface
PoE
PoE Interface
8`d7RJ45, 10/100 Mbps self-adaptive Ethernet port
PoE Budget
45W
Power per PoE Port
30W
Standard
IEEE 802.3 af/at
General
UI Language
English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese
Power Supply
DC48V 1.35A
Power Consumption
<10W(without HDD&without PoE)
NetWeight
0.47kg
GrossWeight
0.89kg
Boundary Dimensions
200(L)200(W)43(H)mm
Package Dimensions
315(L)70(W)235(H)mm
Operating Temperature
-10~+55 (+14~+131)
Operating Humidity
10%~90%RH (non-condensing)
Storage Temperature
-20~+60 (-4~+140)
Package Kit
Network Video Recorder; Screw Pack; Mouse; European Standard Power Adapter
