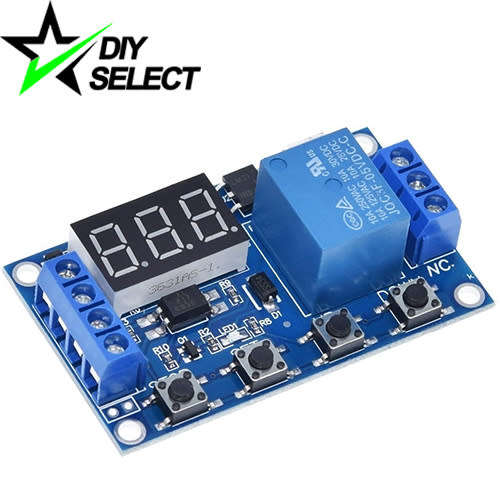

Delay Cycle Trigger Timer Switch Module:
Specifications:

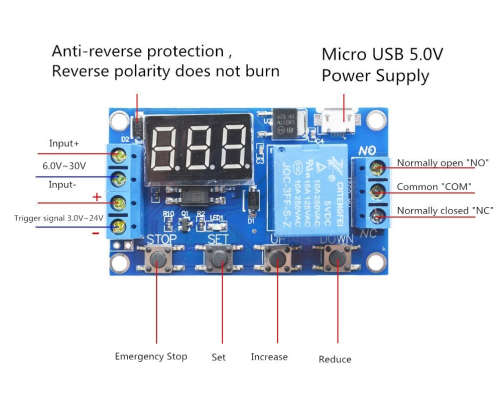

Power Supply Voltage: 6 - 30V DC and micro USB 5V
Trigger Signal Source: High level (3 - 24V), Low level (0 - 0.2V), Switch signal
Maximum Output Load: 5A DC/AC Load
Static Current: 15mA
Operating Current: 50mA

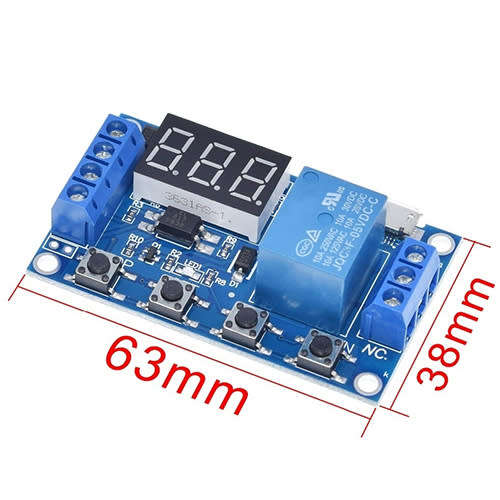

Size: 63 x 38 x 19mm
This unit has 3 parameters that can be set independently. Open time, Close time and Cycle. Settings are saved if power is lost.
